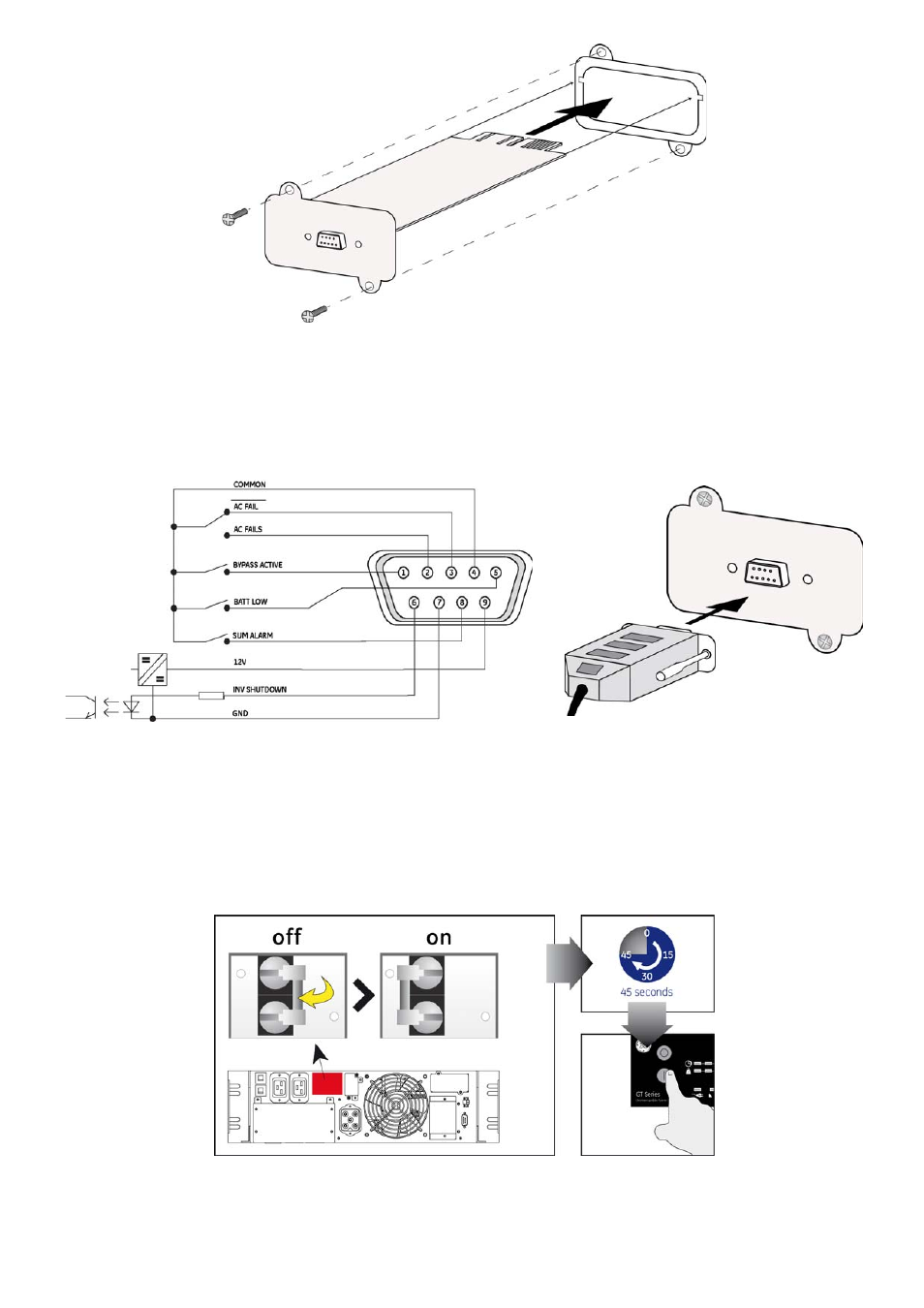

Fig. 4
• Fig 4: Insert the relay card into the option slot.
Slide the card on the guides on the sides of the slot. Do not attempt to install upside-down – keeping
the screw holes aligned will ensure the correct installation. Secure the card using the screws
removed in the previous step.
Fig. 5 Fig. 6
• Fig 5: Sub D-9 Pin configuration
When the Shutdown pin is driven high (connected to 12V) it activates the UPS Shutdown signal. The
Shutdown signal is only effective during a mains failure, when the UPS is operating on Battery. The
UPS will shutdown two minutes after the signal activation.
• Fig 6: Connect data cable
Fig. 4
• Fig 7: Switch on the UPS
