GE Industrial Solutions QW030xx DUAL Series User Manual
Applications, Options, Features

Data Sheet
October 2008
QW030xx DUAL Series Power Modules: dc-dc Converters;
18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc Inputs

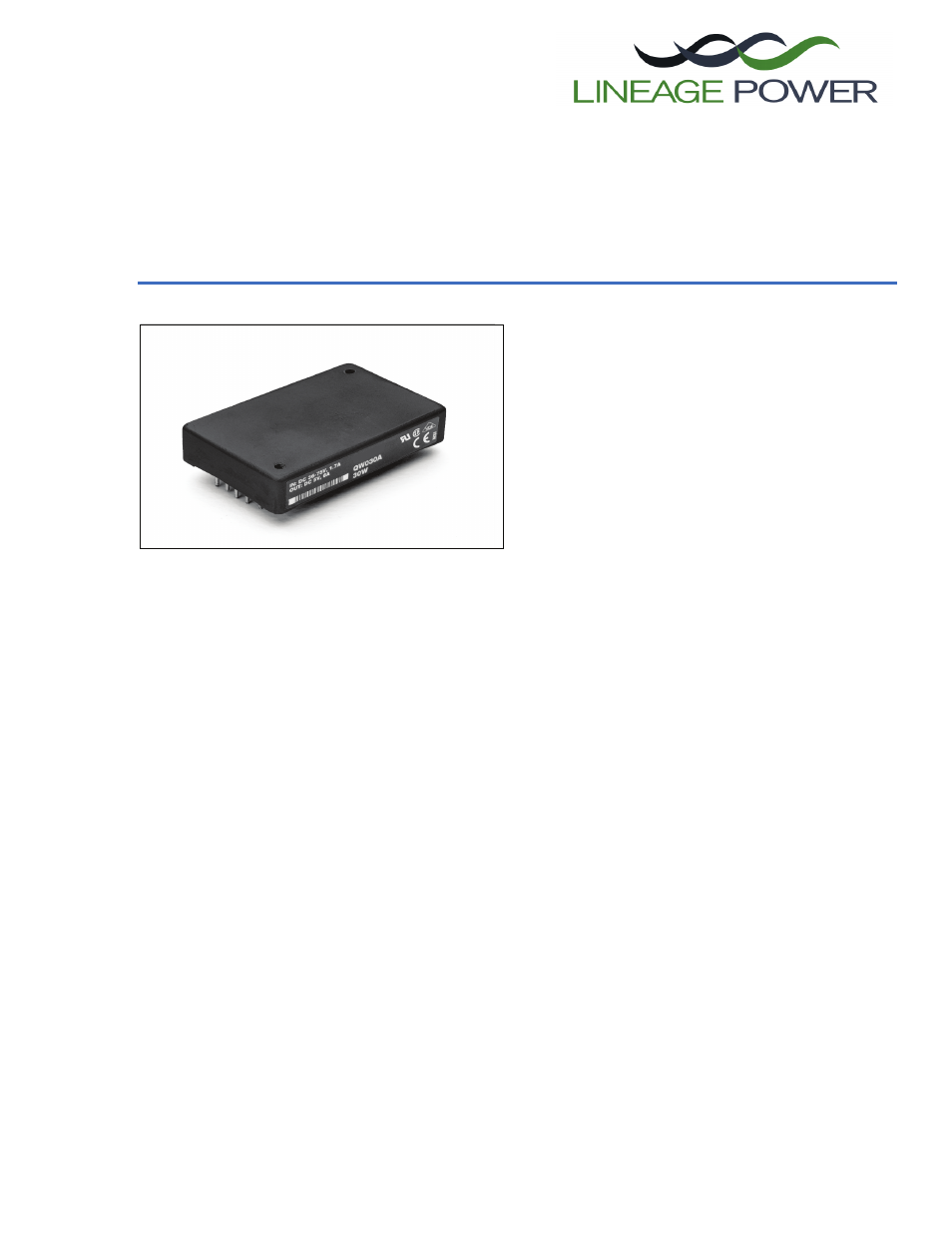

The QW030-Series Power Modules use advanced, surface-
mount technology and deliver high-quality, efficient, and
compact dc-dc conversion.
Applications
n
Distributed power architectures
n
Workstations
n
Computer equipment
n
Communications equipment
n
Optical transport equipment
Options
n
Heat sinks available for extended operation
n
Choice of remote on/off logic configurations
n
Choice of two pin lengths
Features
n
Small size: 36.8 mm x 57.9 mm x 12.7 mm
(1.45 in. x 2.28 in. x 0.50 in.)
n
High power density
n
High efficiency: 88% typical
n
Low output noise
n
Constant frequency
n
Industry-standard pinout
n
Metal case
n
2:1 input voltage range
n
Overvoltage and overcurrent protection
n
Remote on/off
n
Adjustable output voltage
n
ISO* 9001 and ISO
14001 Certified manufacturing
facilities
n
UL
†
60950 Recognized, CSA
‡
C22.2 No. 60950-00
Certified, VDE
§
0805 (IEC60950) Licensed
n
CE mark meets 73/23/EEC and 93/68/EEC
directives
**
* ISO is a registered trademark of the International Organization
for Standardization.
† UL is a registered trademark of Underwriters Laboratories, Inc.
‡ CSA is a registered trademark of Canadian Standards Assn.
§ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
**This product is intended for integration into end-use equipment.
All the required procedures for CE marking of end-use equip-
ment should be followed. (The CE mark is placed on selected
products.)
Description
The QW030-Series Power Modules are dc-dc converters that operate over an input voltage range of 36 Vdc to
75 Vdc and provide precisely regulated dc outputs. The outputs are fully isolated from the inputs, allowing ver-
satile polarity configurations and grounding connections. The modules have maximum power ratings of 30 W
to 36 W at a typical full-load efficiency of up to 88%.
These encapsulated modules offer a metal case for optimum thermal performance. Threaded-through holes are
provided to allow easy mounting or addition of a heat sink for high-temperature applications. The standard feature
set includes remote sensing, output trim, and remote on/off for convenient flexibility in distributed power
applications.
