GE Industrial Solutions 12A Analog PicoDLynx - Manual

GE
Data Sheet
August 13, 2013 ©2013 General Electric Corporation. All rights reserved.

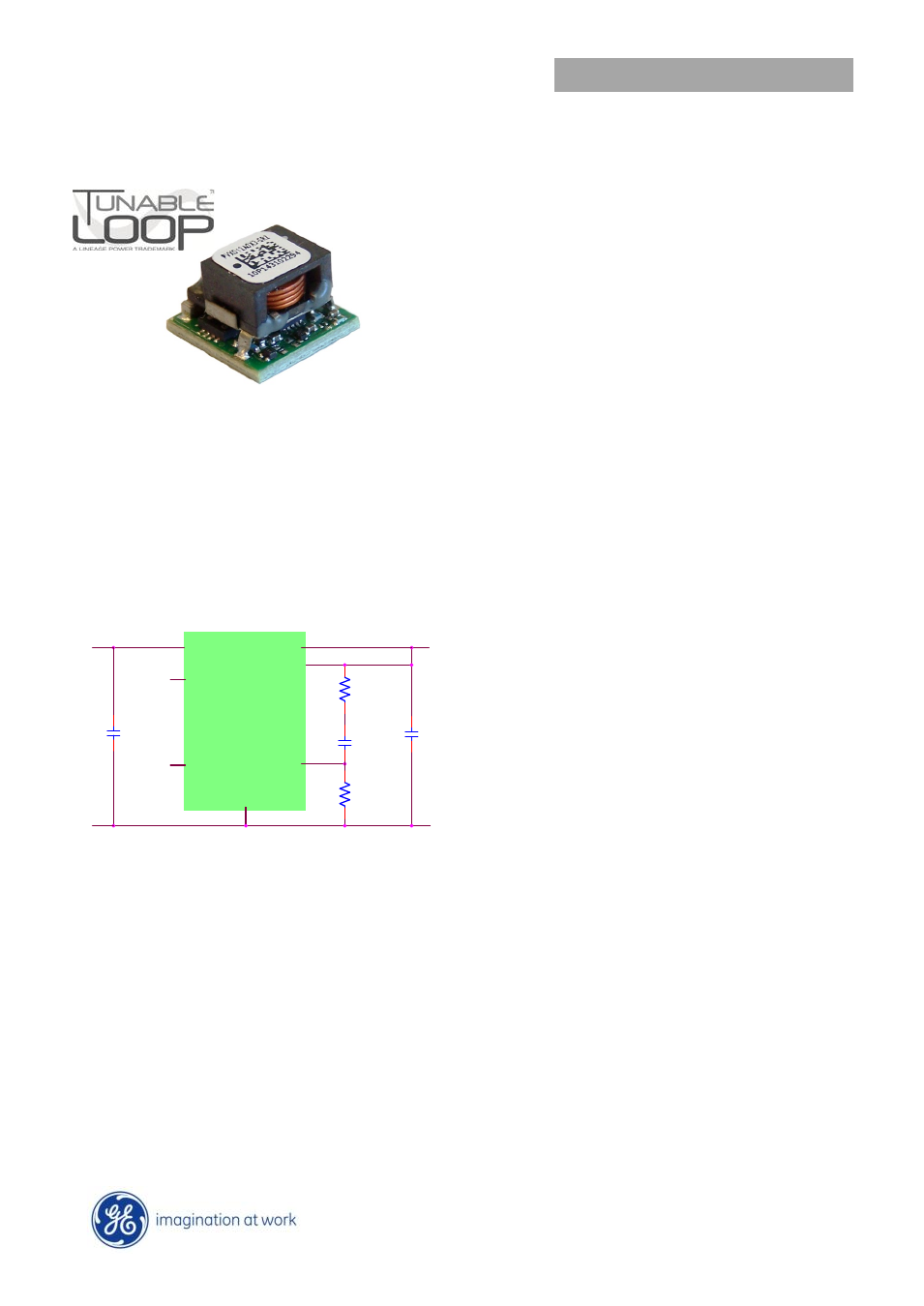

12A Analog PicoDLynx TM : Non-Isolated DC-DC Power Modules
3Vdc –14.4Vdc input; 0.6Vdc to 5.5Vdc output; 12A Output Current
Features
 Compliant to RoHS II EU “Directive 2011/65/EU”
 Compatible in a Pb-free or SnPb reflow environment
 Compliant to IPC-9592 (September 2008), Category 2,
Class II
 DOSA based
 Wide Input voltage range (3Vdc-14.4Vdc)
 Output voltage programmable from 0.6Vdc to 5.5Vdc
via external resistor
 Tunable Loop TM to optimize dynamic output voltage
response
 Power Good signal
 Fixed switching frequency
 Output overcurrent protection (non-latching)
 Overtemperature protection
 Remote On/Off
 Ability to sink and source current
 Cost efficient open frame design
 Small size: 12.2 mm x 12.2 mm x 8.5 mm
(0.48 in x 0.48 in x 0.335 in)
 Wide operating temperature range [-40°C to
105°C(Ruggedized: -D), 85°C(Regular)]
 UL * 60950-1Recognized, CSA † C22.2 No. 60950-1-03
Certified, and VDE ‡ 0805:2001-12 (EN60950-1) Licensed
 ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
 Distributed power architectures
 Intermediate bus voltage applications
 Telecommunications equipment
 Servers and storage applications
 Networking equipment
 Industrial equipment
Description
The 12A Analog PicoDLynx TM power modules are non-isolated dc-dc converters that can deliver up to 12A of output current.
These modules operate over a wide range of input voltage (V
IN
= 3Vdc-14.4Vdc) and provide a precisely regulated output voltage
from 0.6Vdc to 5.5Vdc, programmable via an external resistor. Features include remote On/Off, adjustable output voltage, over
current and over temperature protection. The Tunable Loop TM feature allows the user to optimize the dynamic response of the
converter to match the load with reduced amount of output capacitance leading to savings on cost and PWB area.
RoHS Compliant
TRIM
VOUT
SENSE
GND
CTUNE
RTUNE
RTrim
VIN
Co Cin
Vin+ Vout+
ON/OFF
PGOOD
MODULE
