GE
Data Sheet
KHHD010A0A Hammerhead™ Series; DC-DC Converter Power Modules
18-75Vdc Input; 5.0Vdc, 8A/10A Output
Contact Us
For more information, call us at
USA/Canada:
+1 888 546 3243
, or +1 972 244 9288
Asia-Pacific:
+86.021.54279977*808
Europe, Middle-East and Africa:
+49.89.878067-280
India:
+91.80.28411633
www.ge.com/powerelectronics
February 24, 2014
©2012 General Electric Company. All rights reserved.
Version 1.02
Ordering Information
Please contact your GE Sales Representative for pricing, availability and optional features.
Table 1. Device Codes
Product codes
Input Voltage
Output Current
Output
Voltage
Remote On/Off
Logic
Connector
Type
Comcodes
KHHD010A0A41Z
24V/48V (18-75Vdc)
8A (18-36V
IN
)
10A (36-75V
IN
)
5.0V
Negative
Through hole
CC109173010
KHHD010A0A41-SRZ
24V/48V (18-75Vdc)
8A (18-36V
IN
)
10A (36-75V
IN
)
5.0V
Negative
Surface mount
CC109173027

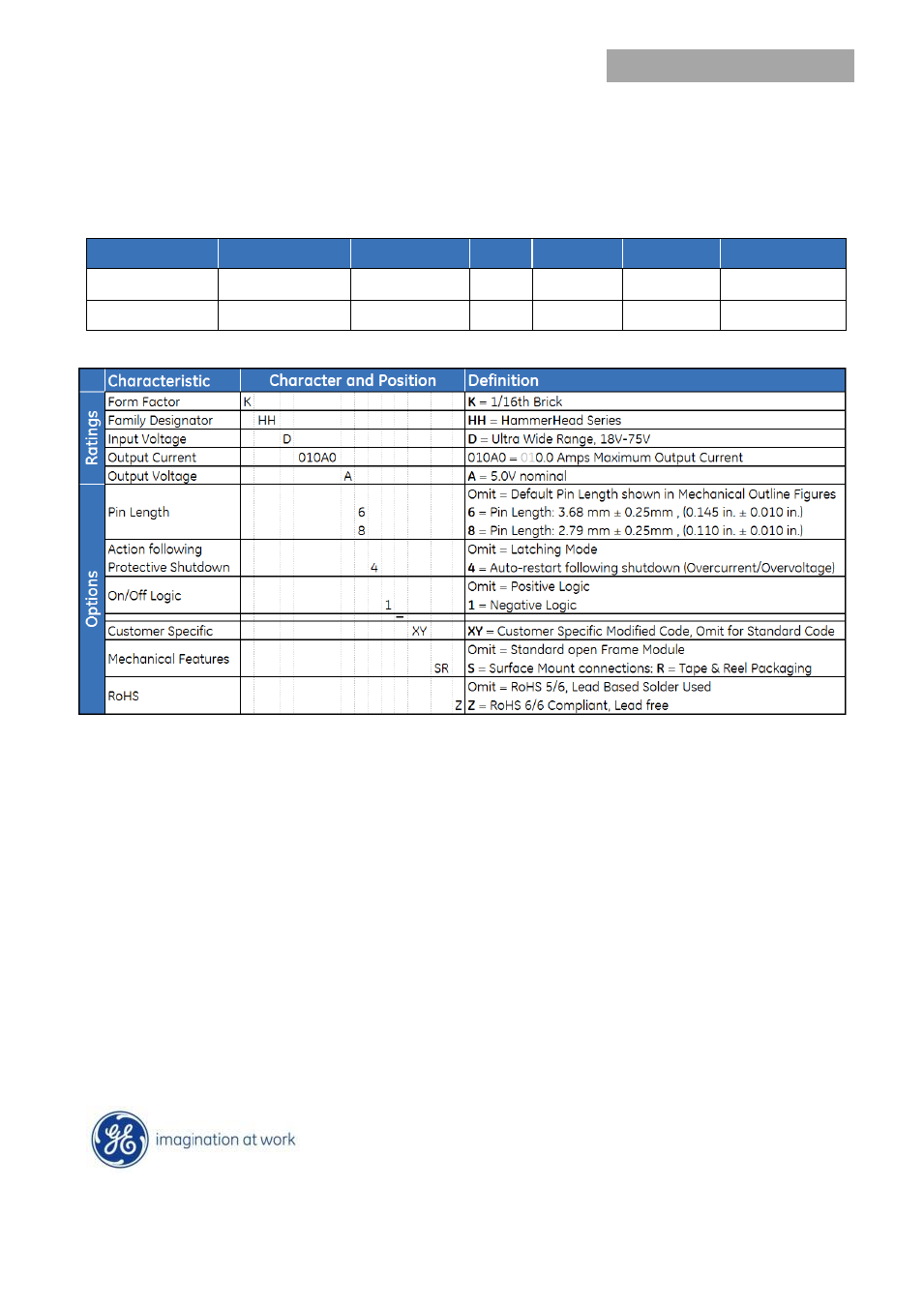

Table 2. Device Options
