2.2 INSTALLATION
The 6KCV300DVN interface card is delivered with a kit including 4 standoffs,
4 screws, washers and a 40-pole flat cable with connectors.
1. Switch the drive off.
R-TPD32- R-AMV32-
SBI DN
12
3
4
5
6
7
8
PWR RST RUN OP AL0 AL1 AL2
XS
X0
S1
ON OFF
H1
S2
S4
S3
S5
S6
S7
S8
B A
B A
B A
B A
B A
1 2 3 4 5
BUS

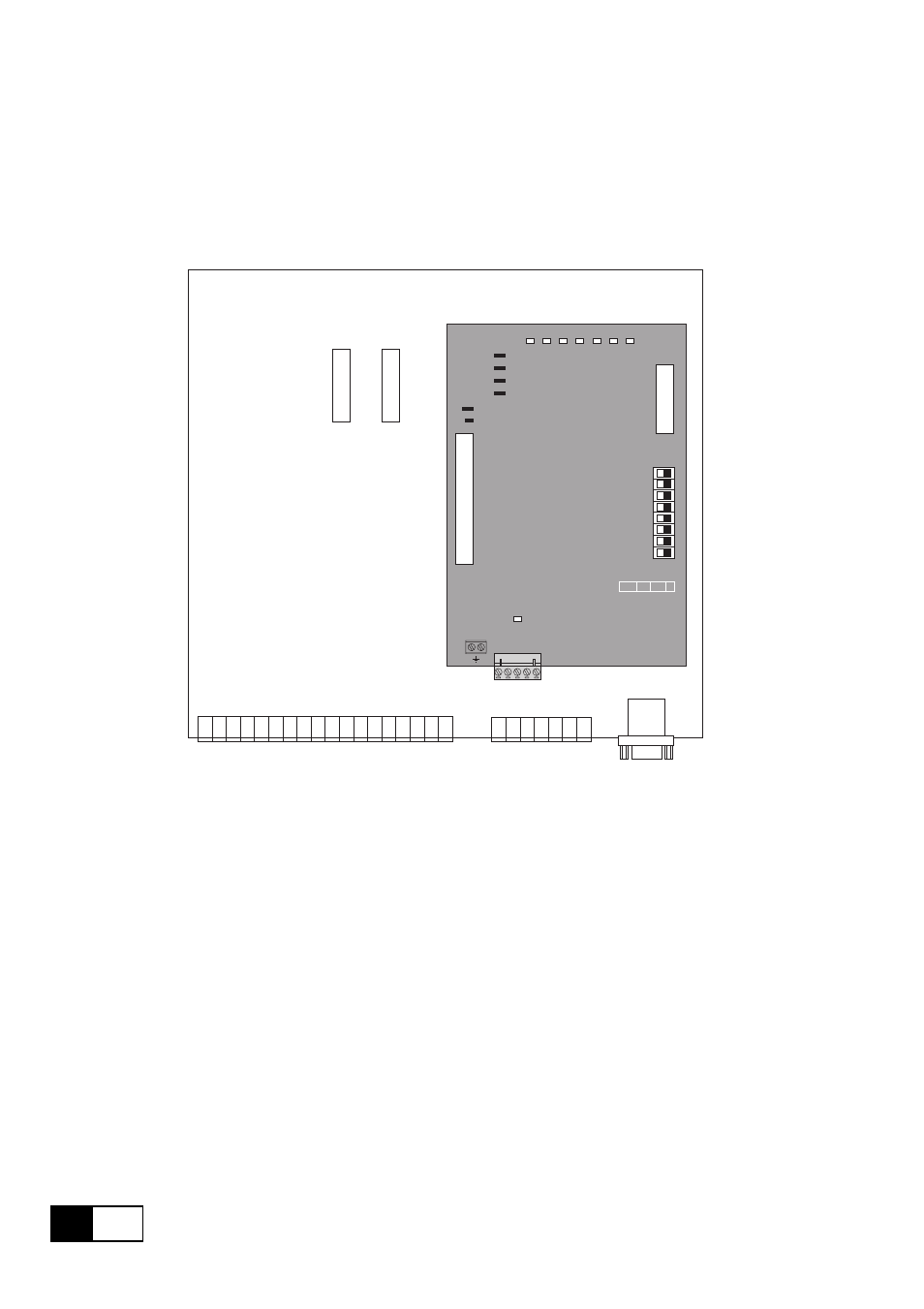

2. Fasten with screws and standoffs the 6KCV300DVN board to the
regulation board.The BUS connector is turned in the same direction as
the regulation board terminals.
3. The flat cable is connected to the XO connector placed on the board.
4. The Baud Rate of the 6KCV300DVN board is set via the Switches 7 and
8 of the Dipswitch S1. The Baud Rate is detected only when the board is
switched on and it can be modified only by switching off and swtching on
the board again.Table 2 shows the relation between the DIP-Switches and
the selectable Baud Rate value. The Default value is 125 Kbaud.
