Mounting – GE Industrial Solutions D20A6 expanded I_O for AV-300i Drives User Manual
Page 6
—————— I/O Expansion card ——————
6
GEI-100427
2. MOUNTING
The D20A6 card is supplied with standoffs and the cable for connection
between regulation and expansion card .
1.
Switch the drive off.
2.

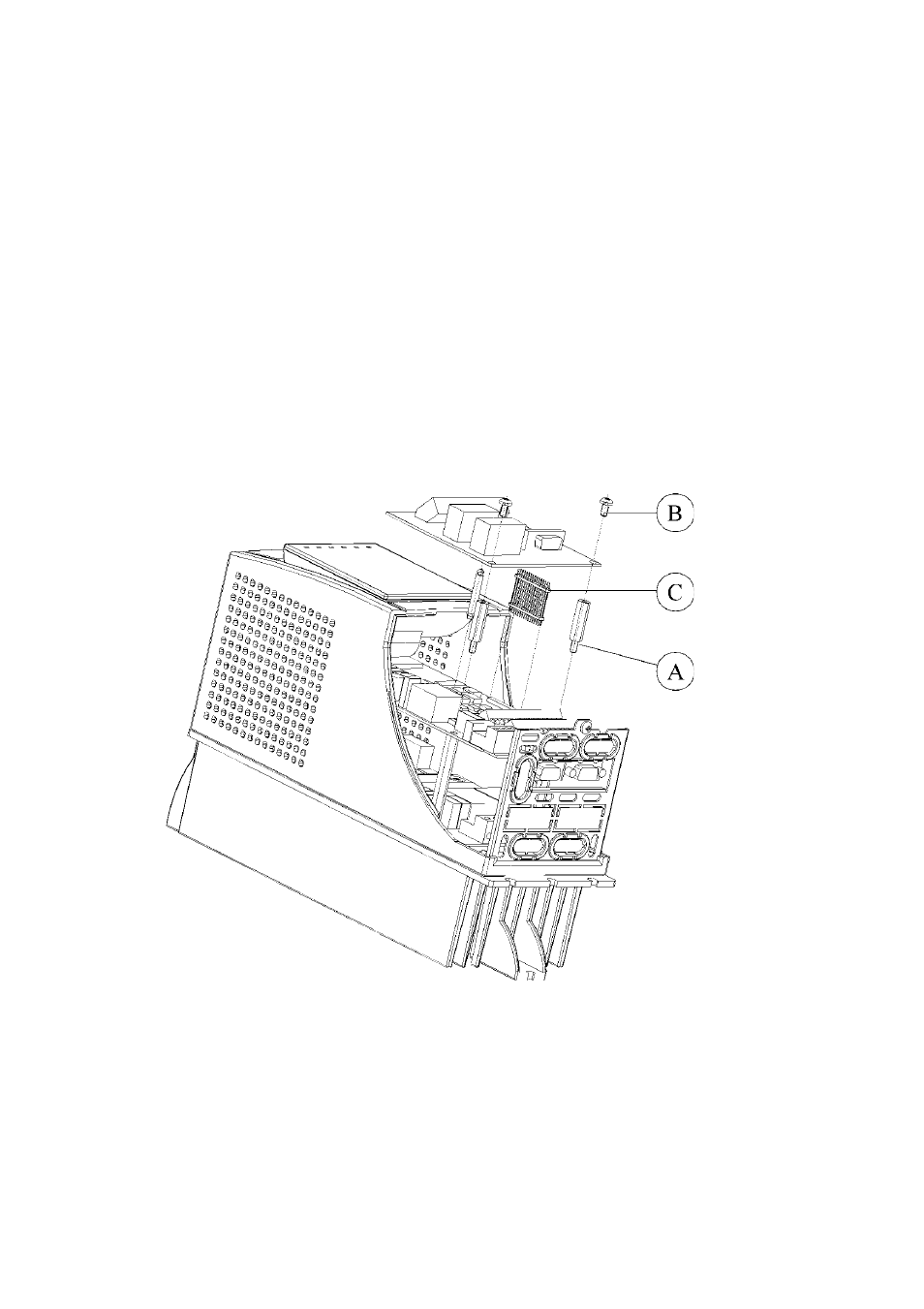

Fasten the D20A6 card to the drive regulation board by means of screws
(B) and standoffs (A).
3.
The D20A6 card is connected to the regulator card through the XH
connector using the supplied connector. The power supply (+5V) and the
control signals are provided by the drive via the XH connector.
4.
Switch on the drive.
