2. Usage Configuration: The racking handle
can be expanded and folded to Z-shape
for usage as shown in figure

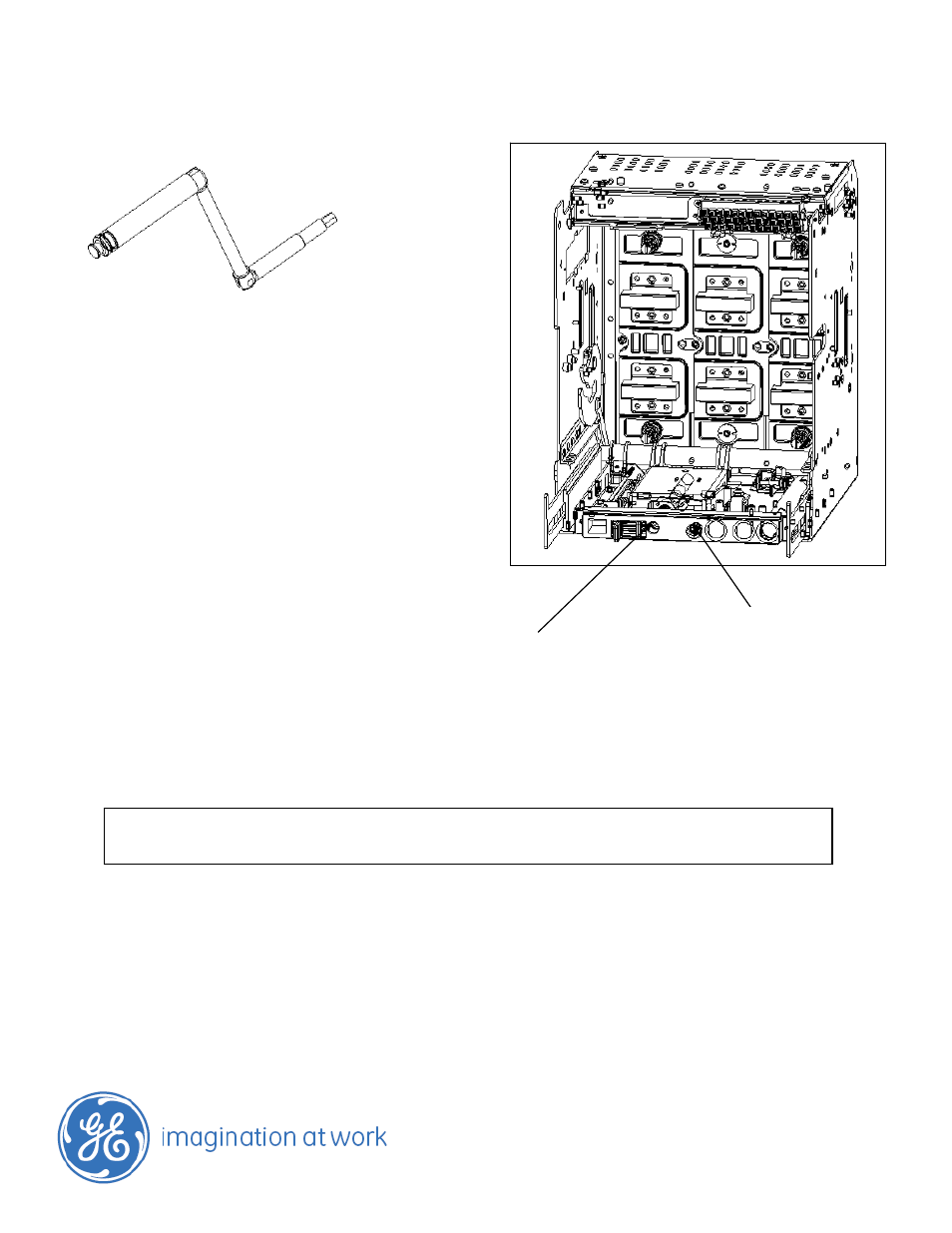

Figure 4. Racking handle in usage configuration
To Rack in/out follow the below procedure
1. Pull out the racking handle from the
storage tube
2. Expand and fold the racking handle to Z-
shape as shown in fig –4
3. Rotate the Quarter turn screw using a flat
screw driver Clockwise
4. Insert the Raking handle into the racking
screw access hole in the panel as shown
5. Rotate the racking handle clock wise to
rack in the breaker and anti-clock wise to
rack out the breaker
6. Once racking operation is over pull out the
handle from racking access hole and store
it is in storage tube
Quarter Turn
Screw
Racking screw
access hole
