Page 2
Environmental
Operating Temperature -40°C to +75°C
Storage Temperature -40°C to +85 °C
Power Derating > +65°C 2% per degree Celsius
Relative Humidity 95% max, non-condensing
Altitude 4000m max
Audible Noise < 55dBA
Slimline Power System Brochure © 2012 General Electric Company. All rights reserved. 07/12
General
Cooling Redundant Fan Cooled
Efficiency >90%
Heat Dissipation 97 W / 331 BTU

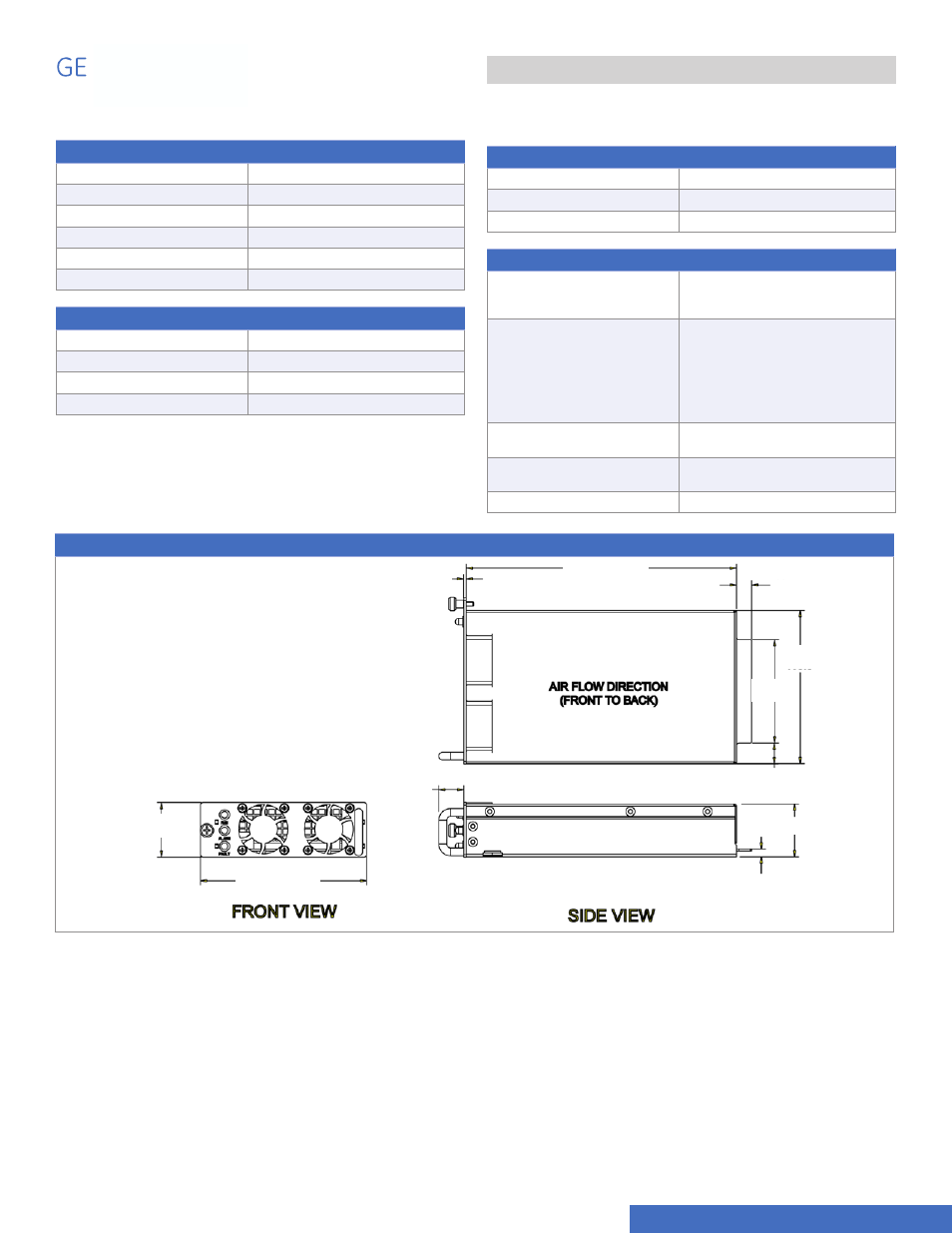

Outline Drawing
Safety and Standards Compliance
NEBs Evaluated by independent NRTL test
lab to Telcordia GR63 and GR1089-
CORE, Issue 4
Safety CE mark to Low Voltage Directive
2006/95/EC and EMC Directive
2004/108/E
UL 609501-1 Recognized
CSA C22.2 No. 60950-1-03 Certified
VDE0805:200112 (EN 609501) Licensed
RoHS Compliant to RoHS EU Directive
2002/95/EC
EMC FCC and EN 55022, Class B; FCC, Class
B
ESD EN61000-4-2, Level 4
Mechanical
Length (in./mm) 8.11 / 206.0
Width (in./mm) 4.98 / 126.5
Height (in./mm) 1.64 / 41.6
Weight (lb/kg) 3.08 / 1.4
TECHNICAL SPECIFICATIONS - RECTIFIERS
8.11 (206mm)
4.98 (126.5mm)
0.08 (2.0mm)
0.75 (19.0mm)
0.45 (11.5mm)
0.63 (15.9mm)
4.59
(116.5mm)
3.09
(78.6mm)
0.24
(6.10mm)
1.64
(41.6mm)
1.58 (40.2mm)
