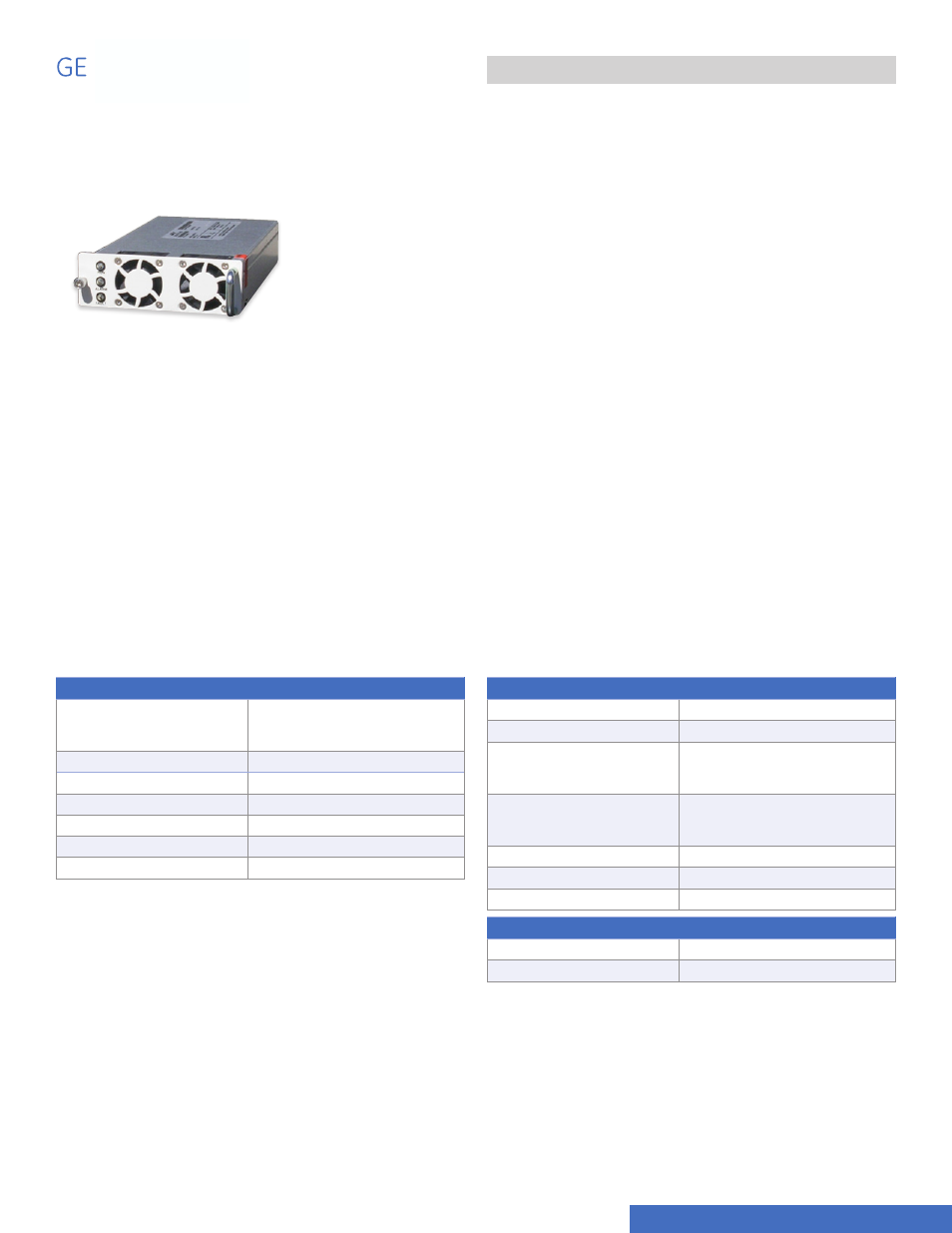

EP1000 Rectifiers (SPS Rectifiers)
Applications
Key Features
The SPS rectifiers are single phase, hot-pluggable, fan cooled rectifiers that provide highly
reliable DC power. The SPS EP1000 rectifiers are cost-effective rectifiers that occupy just 1RU
and it’s shallow depth is an ideal power solution for space critical applications. The constant
output power characteristics as well as the extended temperature range, universal AC input
voltage range and compact size are key attributes that make this rectifier the right choice for
your power needs.
These rectifiers are applicable for indoor and outdoor environments especially where equipment
depth and height are restricted. The SPS rectifiers communicate digitally to the Pulsar Edge
controller family over a RS485 bus to add extensive monitoring and alarm management facilities.
Its flexible and sophisticated feature set makes this front-end supply an excellent choice for
power in a variety of application spaces.
• Telecommunications networks
• Digital subscriber line (DSL)
• Indoor/outdoor wireless
• Routers/switches
• Fiber in the loop
• Transmission
• Data networks
• PBX
• Extended temperature range
• Redundant fan cooling
• Front panel LED indicators
• 1U height, minimized depth
• Universal AC input
• Analog load sharing
• Hot pluggable
• RoHS compliant
Input
Voltage Range
- Low-Line
- High-Line
90 – 175 Vac (500W)
176 – 290 Vac (1000W)
Input Frequency
45-65 Hz
Input Current
6 Amps
Inrush Transient
16 Apk
Total Harmonic Distortion (THD)
< 5 %
Power Factor
~1.0
Holdup Time
>10 ms full power
Output
Voltage Nominal
52 Vdc
Voltage Adjust Range
42-58 Vdc (software control)
Rated Output Current
- Low-Line
- High-Line
10 Adc max
20 Adc max
Rated Output Power
- Low-Line
- High-Line
500 Watts
1000 Watts
Psophometric Noise
<2 mV max
Ripple
<200 mVpkpk
Overvoltage Protection
59.5 Vdc
Control and Monitoring
Visual Status Indicators
Run, Alarm and Fault LEDs
Serial Interface
Half duplex RS485 (GP Protocol)
Slimline Power System Brochure
© 2012 General Electric Company. All rights reserved.
07/12
TECHNICAL SPECIFICATIONS - RECTIFIERS
