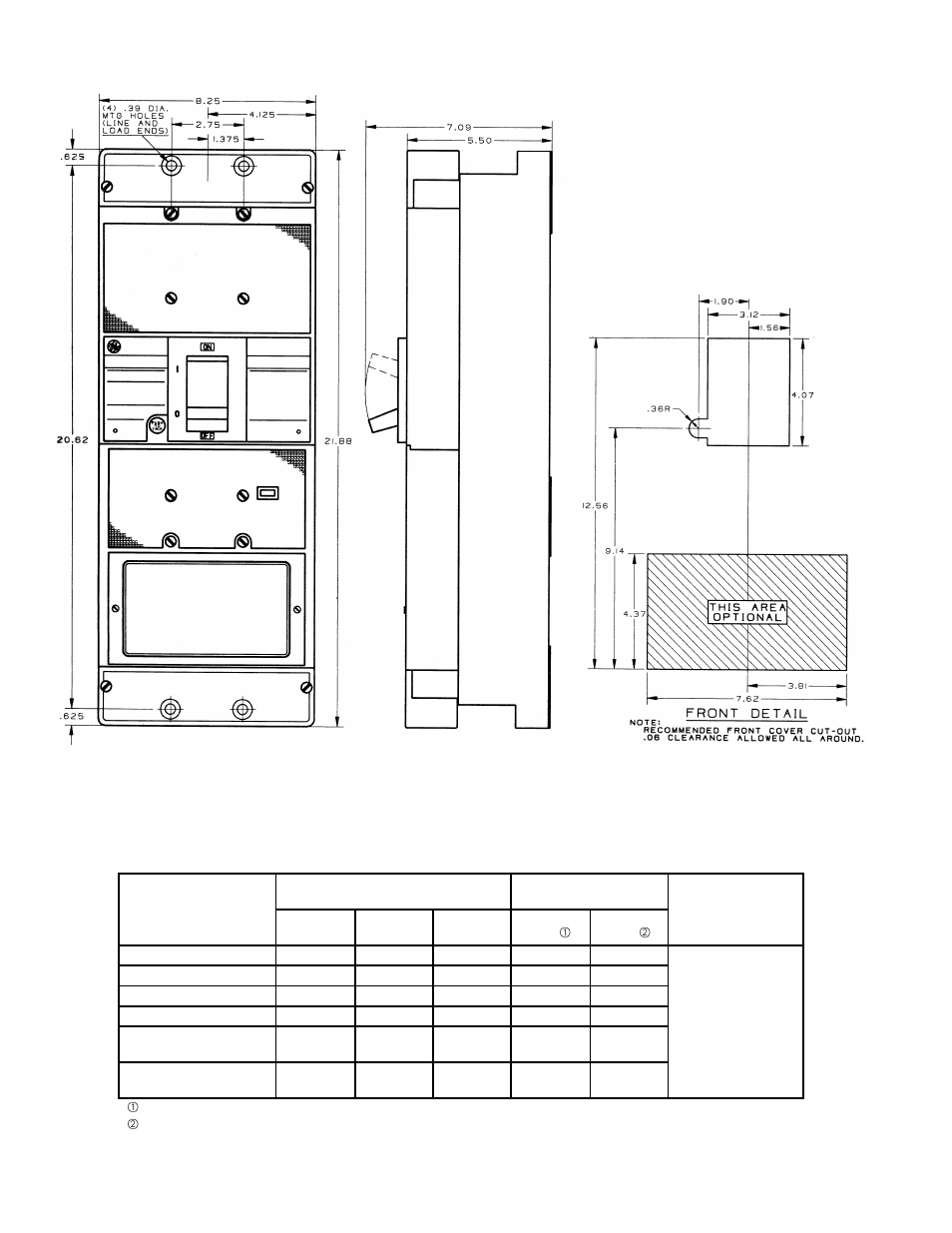

Outline Drawing for TKH8S, TKH12S, TKL8S, TKL12S
Internal Accessories
Internally mounted accessories are UL listed and field
installable, except for the bell alarm, which is only factory
installed. Available accessories are listed in Table 2. For detailed information on accessory applications, see
the GE BuyLog, GEP-1100, and GEP-746.
Pole Mounting Lead Exit
Total No. of
Accessories
Accessory Installation
Left Center Right Side Back
Within Any One
Breaker
Auxiliary Switches X X X
Shunt Trip X X X
Bell Alarm Switch X X X Any One
Undervoltage Release X X X plus
Combination Shunt
Trip with Aux Sw
X X X
Bell Alarm
Combination Under–
voltage with Aux Sw
X X X
UL listed.
Not UL listed.
Table 2. Available internal accessories and mounting positions.
