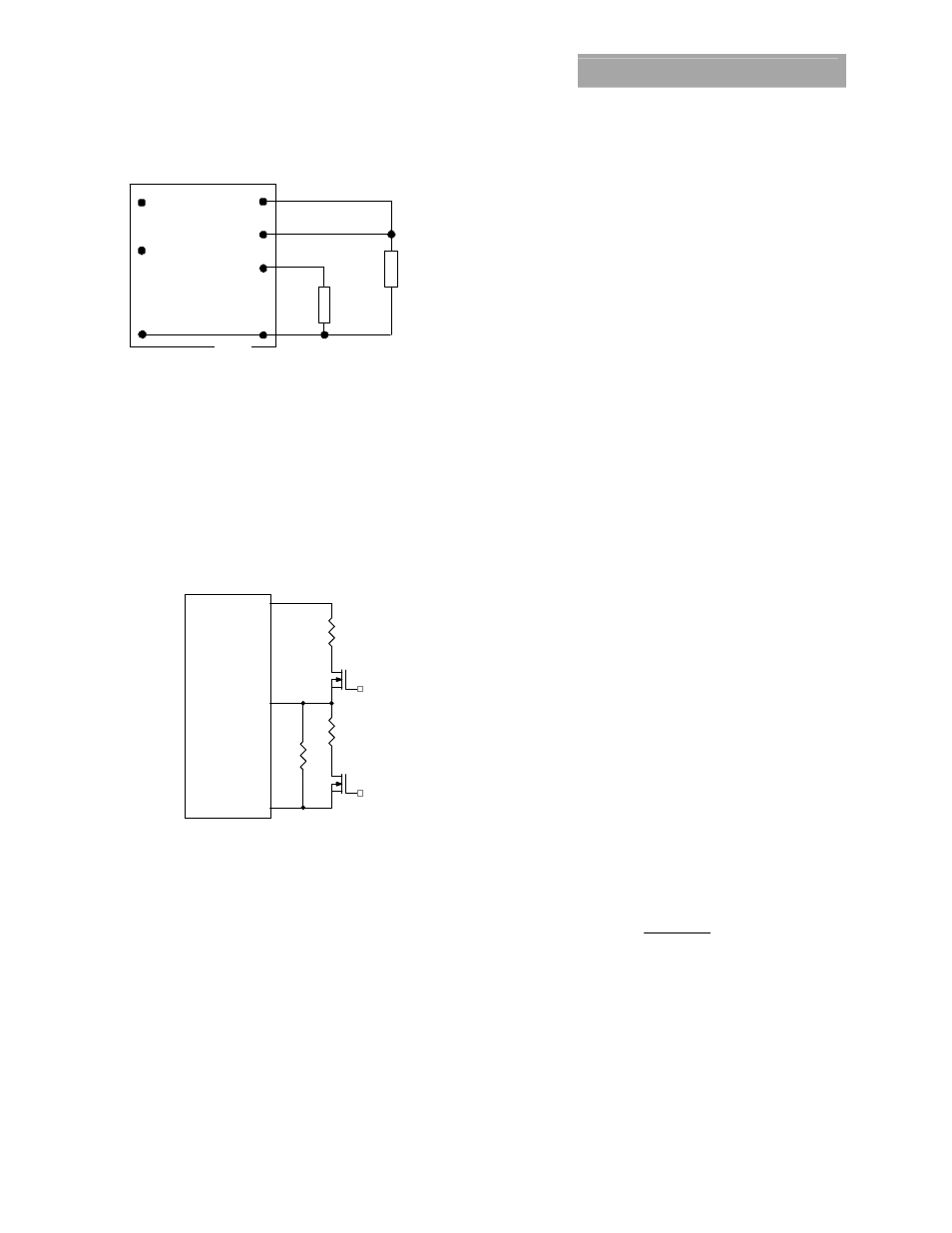

Figure 45. Circuit configuration for programming output
voltage using an external resistor.
Voltage Margining
Output voltage margining can be implemented in the 12V Pico
TLynx
TM 6A modules by connecting a resistor, R
margin-up
, from the
Trim pin to the ground pin for margining-up the output voltage
and by connecting a resistor, R
margin-down
, from the Trim pin to
output pin for margining-down. Figure 46 shows the circuit
configuration for output voltage margining. The POL
Programming Tool, available at
www.lineagepower.com under
the Design Tools section, also calculates the values of R
margin-up
and R
margin-down
for a specific output voltage and % margin.
Please consult your local GE technical representative for
additional details.
Vo
MODULE
GND
Trim
Q1
Rtrim
Rmargin-up
Q2
Rmargin-down
Figure 46. Circuit Configuration for margining Output
voltage.
Monotonic Start-up and Shutdown
The 12V Pico TLynx TM 6A modules have monotonic start-
up and shutdown behavior for any combination of rated
input voltage, output current and operating temperature
range.
Startup into Pre-biased Output
The 12V Pico TLynx TM 6A modules can start into a
prebiased output as long as the prebias voltage is 0.5V
less than the set output voltage. Note that prebias
operation is not supported when output voltage
sequencing is used.
Output Voltage Sequencing
The 12V Pico TLynx TM 6A modules include a sequencing
feature, EZ-SEQUENCE that enables users to implement
various types of output voltage sequencing in their
applications. This is accomplished via an additional
sequencing pin. When not using the sequencing feature,
either tie the SEQ pin to V
IN
or leave it unconnected.
When an analog voltage is applied to the SEQ pin, the
output voltage tracks this voltage until the output
reaches the set-point voltage. The final value of the SEQ
voltage must be set higher than the set-point voltage of
the module. The output voltage follows the voltage on
the SEQ pin on a one-to-one basis. By connecting
multiple modules together, multiple modules can track
their output voltages to the voltage applied on the SEQ
pin.
For proper voltage sequencing, first, input voltage is
applied to the module. The On/Off pin of the module is
left unconnected (or tied to GND for negative logic
modules or tied to V
IN
for positive logic modules) so that
the module is ON by default. After applying input voltage
to the module, a minimum 10msec delay is required
before applying voltage on the SEQ pin. This delay gives
the module enough time to complete its internal power-
up soft-start cycle. During the delay time, the SEQ pin
should be held close to ground (nominally 50mV ± 20
mV). This is required to keep the internal op-amp out of
saturation thus preventing output overshoot during the
start of the sequencing ramp. By selecting resistor R1
(see fig. 47) according to the following equation
05 . 0
24950
1
−
=
IN
V
R ohms,
the voltage at the sequencing pin will be 50mV when the
sequencing signal is at zero.
