Label Filler Plates
Label filler plates are used on all panels with type APF Four-
Piece Trim. They provide a visible location to place all rating
and informational marking. Use the following procedure to
install these plates:
1. Attach the two mounting posts provided to the interior
endplate at the LOAD end of the panel. Secure with the
1 / 4 -20 self-tapping screws provided and tighten to 55–60
in-lb. See Figure 2.
2. Attach the label filler plate to the mounting posts,
oriented as shown in Figure 2. Secure with the 1 / 4 -20 self-
tapping screws provided and tighten to 55–60 in-lb.
3. Attach the labels to the filler plate.

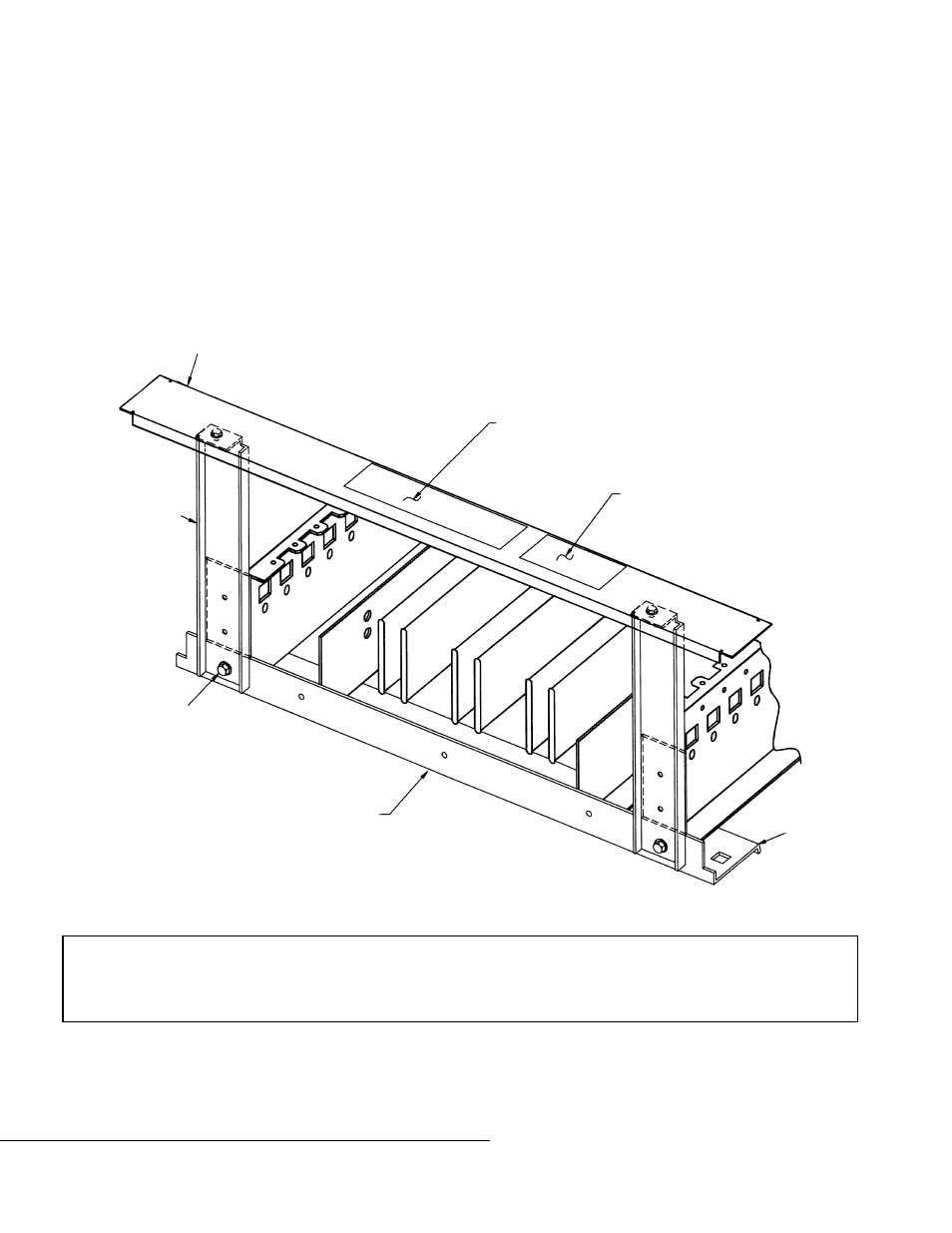

Figure 2. Installing label filler plates.
g
GE Industrial Systems
General Electric Company
41 Woodford Ave., Plainville, CT 06062
GEH5583 R03 0301 © 2001 General Electric Company
These instructions do not cover all details or variations in equipment nor do they provide for every possible contingency
that may be met in connection with installation, operation, or maintenance. Should further information be desired or
should particular problems arise that are not covered sufficiently for the purchaser’s purposes, the matter should be
referred to the GE Company.
Label Filler Plate
Panel Rating
Label
Lighting or Appliance
Branch Circuit Label
Interior (only partially
shown for clarity
Interior
End Plate
1 / 4 -20 Self-
Tapping Screw
Mounting
Post
