Page 10
10
Lineage Power
Data Sheet
March 2008
75 Vdc Input Maximum, 20 A Maximum
FLTR100V20 Filter Module

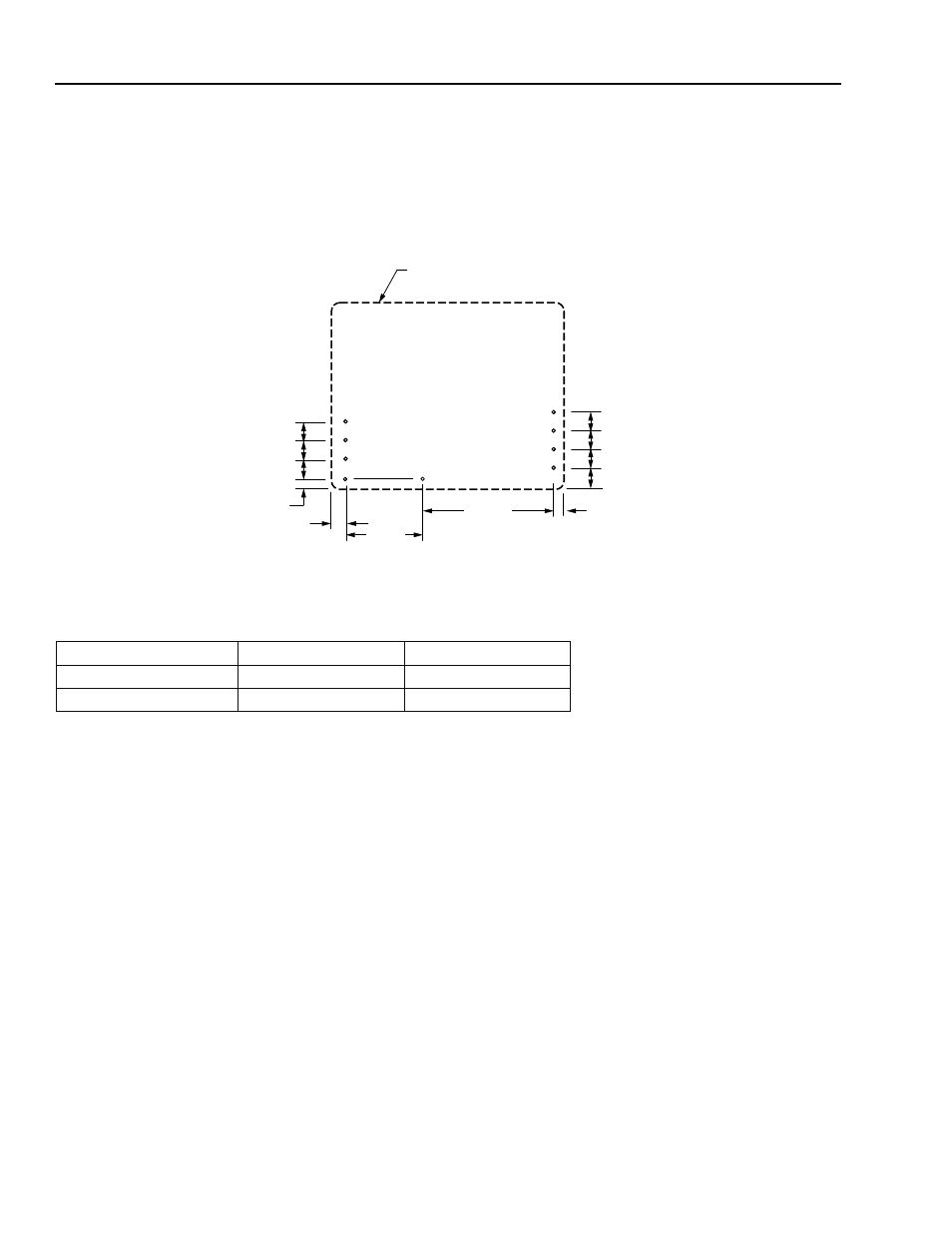

Recommended Hole Pattern
Component-side footprint.
Dimensions are in millimeters and (inches).
Note: Do not route copper paths beneath power module standoffs.
8-1323e
Ordering Information
Device Code
Comcode
Description
FLTR100V20
107742454
Standard Pin Length
FLTR100V206
108995775
0.145 Pin Length
GND
17.78
(0.700)
MODULE OUTLINE
5.08 (0.200)
5.08 (0.200)
5.08 (0.200)
5.08 (0.2
5.08 (0.2
6.4 (0.25
5.08 (0.2
3.8 (0.15)
3.8 (0.15)
3.8
(0.15)
25.4
(1.000)
V
I
V
O
