GE Industrial Solutions AF-600 FP Panel Through Mount Kit User Manual
Page 10

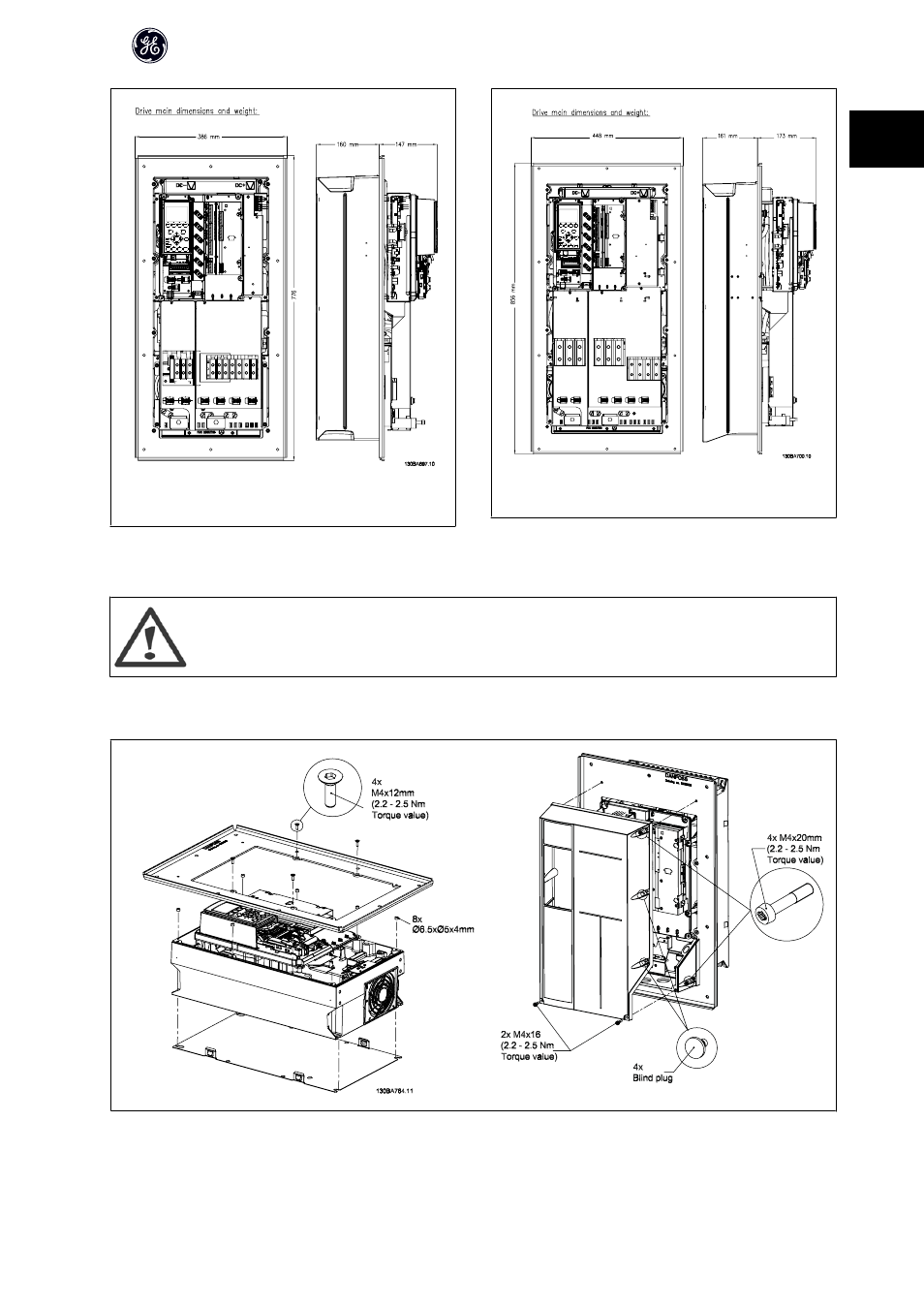

Illustration 1.10: OPCPMK31
Illustration 1.11: OPCPMK32
Once the flange has been assembled to the drive, the unit can be presented to the cut-out in the panel. The heatsink can be carefully positioned through the cut-
out, taking care not to damage the gasket and the unit can be secured using suitable nuts and bolts through the fixing holes.
Be aware that the plastic cover must be mounted for the kit to comply with CE and UL requirements.
Assembly of mounting flange to drive with cover. The cover will provide IP21 on the electronics side:
130BB253.11
Table 1.1: OPCPMK15
AF-650 GP/AF-600 FP Panel Through Mount Kit
9
1
