I-T-E 1600 Ampere Red Frame Breakers Only
1. Attach the mounting brackets removed from the old
copper terminals in Section 3, step 6 of I-T-E 1600
Ampere Breakers, onto the insulated housings, using
the Philips-head screws removed in step 5, as shown
in Figure 16.
2. Attach a new copper load-terminal extension to each
insulated housing with the two 3 / 8 -16 x 1" bolts, lock
washers, and flat washers provided, as shown in
Figure 16.
3. Insert the two #10-32 x 1 1 / 4 " screws, with the lock
washers, flat washers, and nuts provided, through
the insulated housing, as shown in Figure 16.
4. Assemble a copper CT post, CT, and insulating
barrier onto each insulated housing. Insert and finger
tighten the
1 / 2 -13 x 1 1 / 2 " bolt, with lock and flat
washers, into each CT post, as shown in Figure 17.

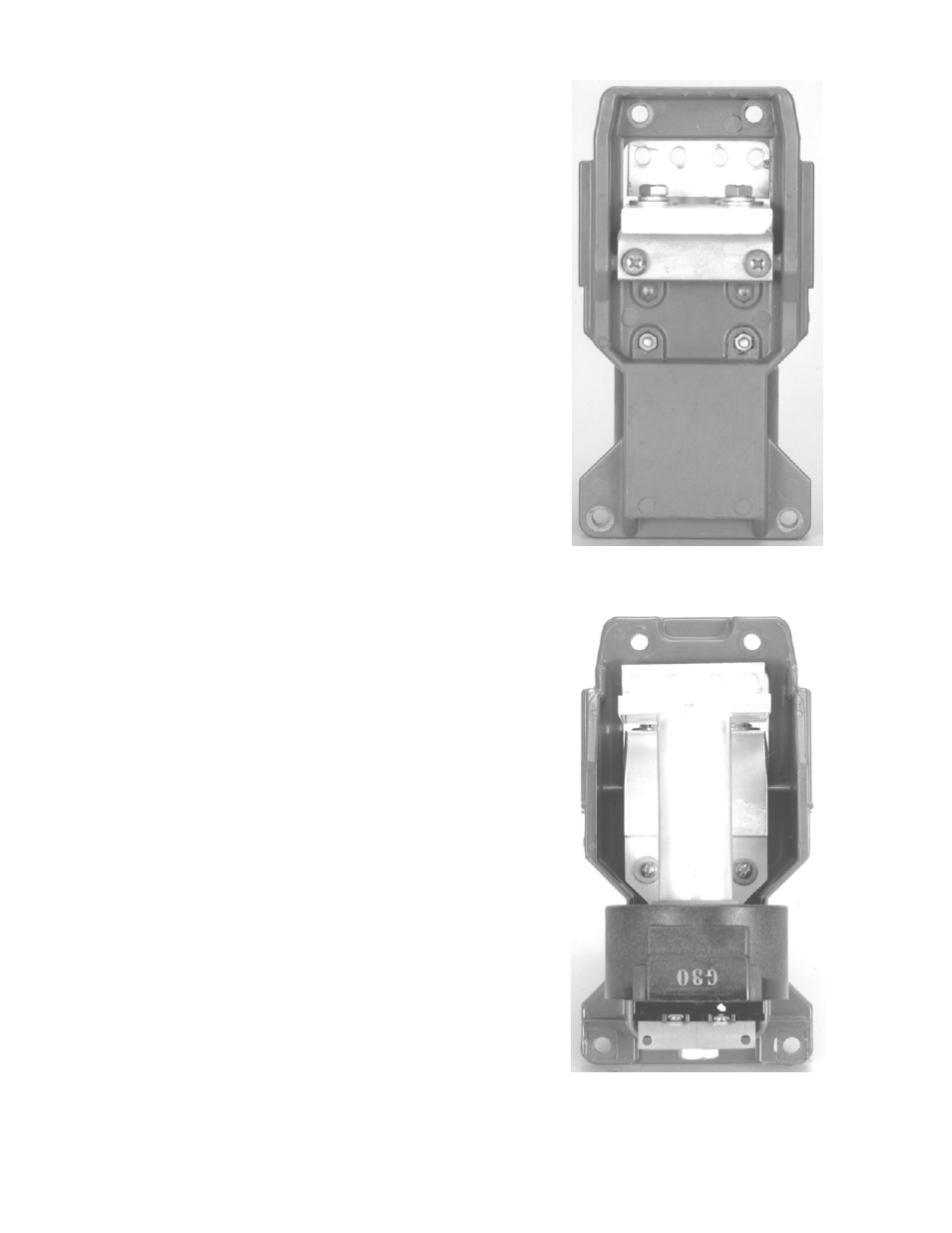

Figure 16. Terminal assembly for K-1600 red frame
breaker.
Figure 17. CT assembly for K-1600 red frame breaker.
