Instructions
Equipment Single Branch
Series AMC3KMFP
– Series
class 1 and 2
AMC3KMFP
800 A SK85PK
1200A SK125PK
– AV3, AV5 Contact Factory
Table 6. Equipment Mounting Hardware Kits
WARNING: Danger of electrical shock or injury. Turn
OFF the power ahead of equipment before installing
this device or removing any other device.
IMPORTANT: Danger de choc électrique ou de blessure.
Couper l’alimentation entrant dans l’appareil avant de
monter celui-ci ou de démonter d’autres appareils.
For individual front panel mounting:
1. Drill and tap all mounting holes and make any
necessary front-panel escutcheon cutouts, as
shown in Figure 1.

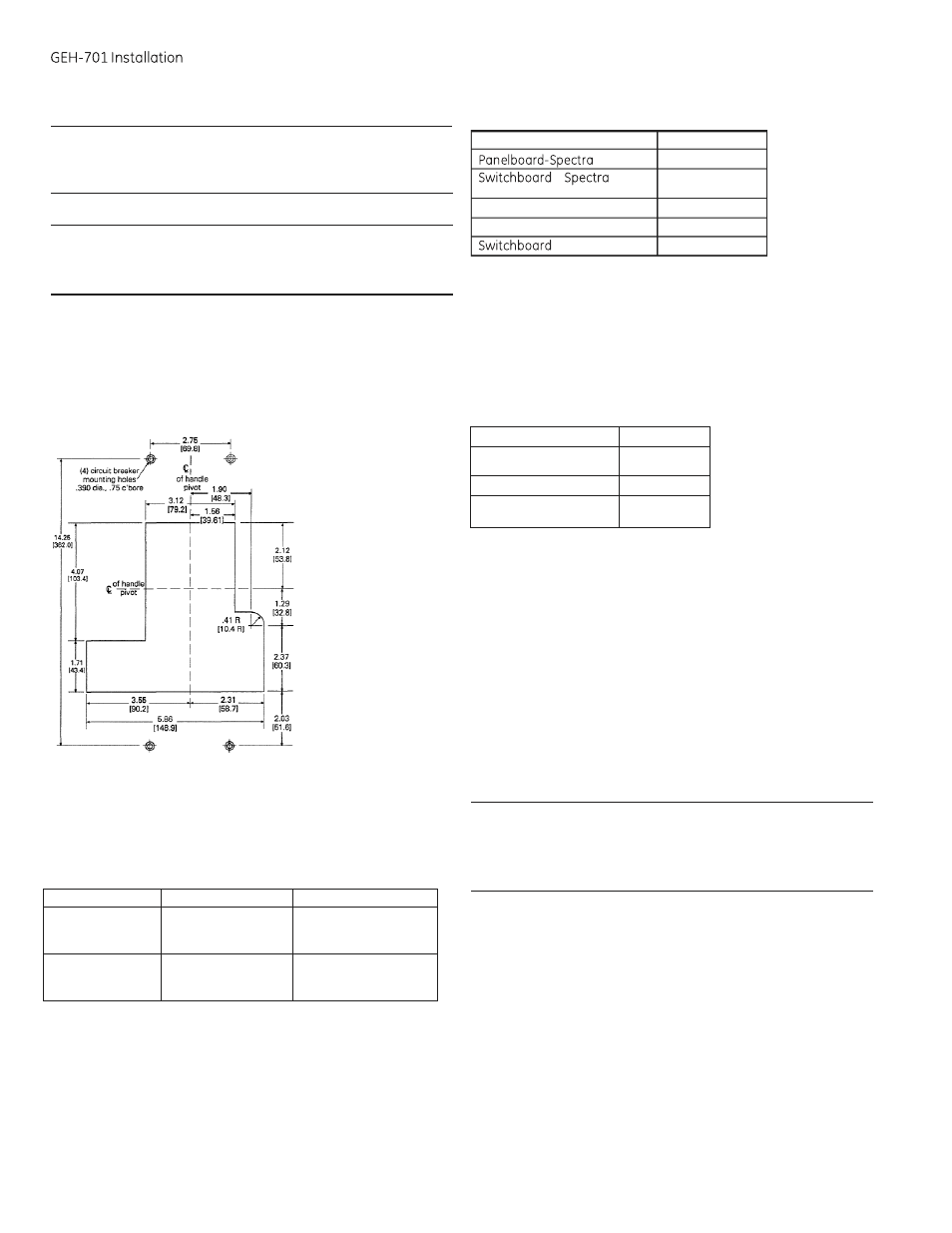

Figure 1. Mounting Hole and Escutcheon Cutout Pattern in/(mm)
2. Mount the breaker with the hardware described in
Table 5, following the instructions supplied with the kit.
Catalog Number Application Kit Description
SKMSK1
Mounting plate with
tapped holes
Four 5/16-18x 1-1/4
screws and lock
washers
SKMSK2
Mounting plate with
clearance holes
Four 5/16-18x 1-3/4
screws, nuts, and lock
washers
Table 5. Breaker Mounting Screw Kits
For GE switchboard and panelboard mounting:
Install the breaker into the equipment according to the
instructions supplied with the equipment . Available
mounting hardware kits are listed in Table 6.
For individual mounting in a GE enclosure:
Install the breaker according to the instructions
supplied with the enclosure. Available enclosures
are listed in Table 7 (refer to the BuyLog for other
accessories and/or any enclosure limitations).
Table 7. Enclosures
Enclosure Type (1) Catalog No.
NEMA 1 (indoor)
TK4V1200F
TK4V1200S
NEMA 3R (outdoor) TK4V1200R
NEMA 12 (oil-tight
and dust-tight)
SG1200J
Setup and Adjustment
The Spectra ® RMS microEntelliGuard TM trip units are
digital, rms sensing, electronic trip units with an LCD
and keypad for viewing and/or changing the various
function settings. Refer to User’s Manual GEH-702
for detailed information concerning the operation,
adjustment, and setting of the breaker trip unit .
You should record the overcurrent protection and
protective relay set points for future reference.
NOTE: Trip units as received may have settings that are
undesirable for the specific application. Ensure that
settings are appropriately adjusted before energizing
the breaker.
Operation
The circuit breaker status is indicated by ON/OFF
markings, universal I/O symbols, and an indicator
window that shows red for ON, yellow for TRIP, and
green for OFF. The corresponding handle positions are
illustrated in Figure 2. To close the breaker from the OFF
position, move the handle to the ON position. To close the
breaker from the TRIP position, first move the handle to
the OFF (reset) position, and then back to the ON position.
A Push-To-Trip button is provided for convenience in
testing the mechanical operation of the breaker.
