Thermal Considerations
Power modules operate in a variety of thermal
environments; however, sufficient cooling should
always be provided to help ensure reliable operation.
Considerations include ambient temperature, airflow,
module power dissipation, and the need for increased
reliability. A reduction in the operating temperature of
the module will result in an increase in reliability. The
thermal data presented here is based on physical
measurements taken in a wind tunnel. The test set-
up is shown in Figure 35. Note that the airflow is
parallel to the long axis of the module as shown in
figure 34. The derating data applies to airflow in
either direction of the module’s long axis.
Air Flow
T
ref

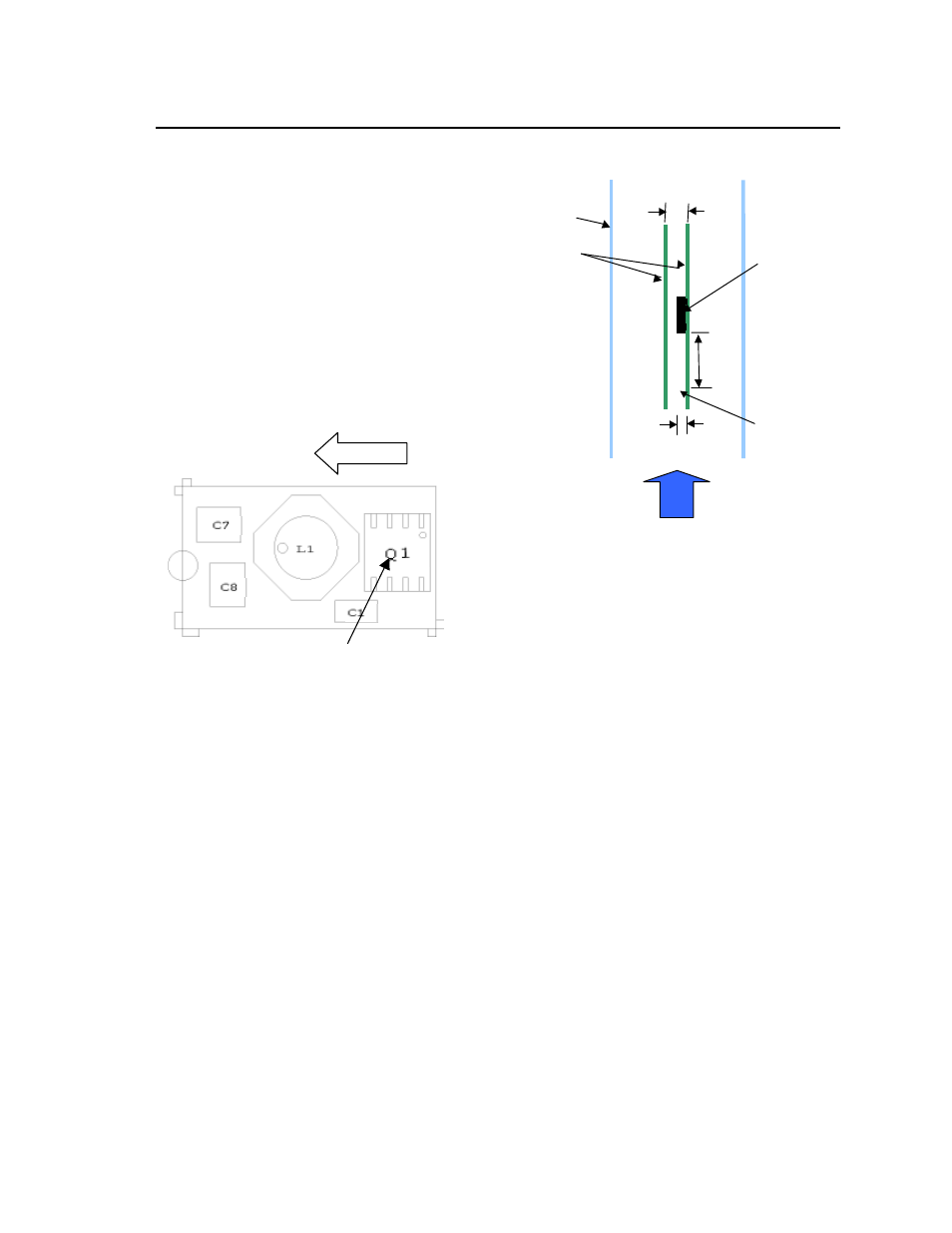

Figure 34. Tref Temperature measurement
location.
The thermal reference point, T
ref
used in the
specifications is shown in Figure 34. For reliable
operation this temperature should not exceed 115
o C.
The output power of the module should not exceed
the rated power of the module (Vo,set x Io,max).
Please refer to the Application Note “Thermal
Characterization Process For Open-Frame Board-
Mounted Power Modules” for a detailed discussion of
thermal aspects including maximum device
temperatures.
Figure 35. Thermal Test Set-up.
Air
flow
x
Power Module
Wind Tunnel
PWBs
5.97_
(0.235)
76.2_
(3.0)
Probe Location
for measuring
airflow and
ambient
temperature
25.4_
(1.0)
