8. Insert two screws [10] into the holes in the circuit breaker and tighten to bracket
[8] with 18-22 in-lb.
9. Remove the four screws [12] of existing filler plate from dead front where TQD
breaker needs to be installed, as illustrated in Figure 2.

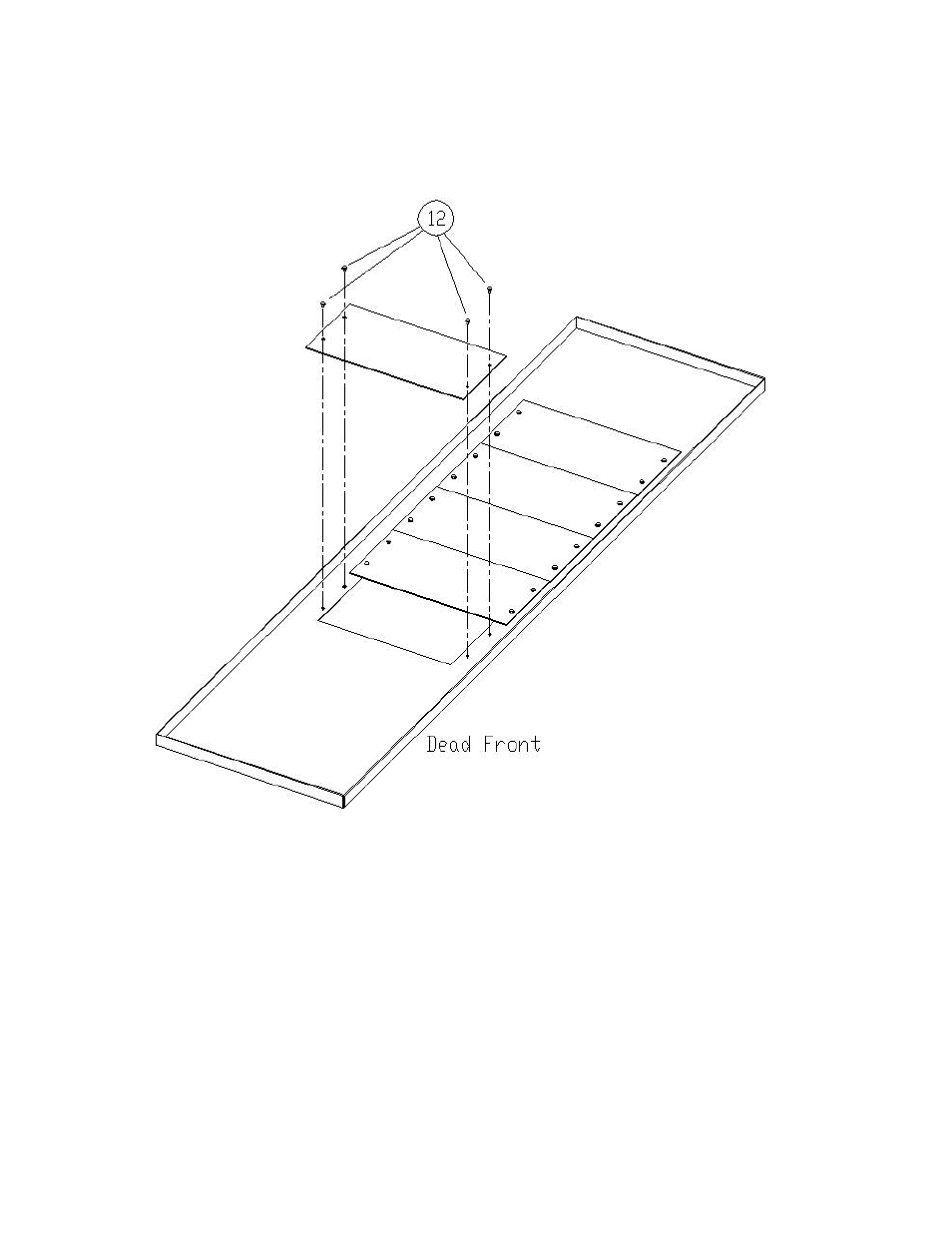

Figure 2. Removing the shield inserts from the shield for TQD breaker installation in
A–Series
®
II Panelboards.
10. Place the filler plate [11] over the dead front so that the four same-size holes line
up with the threaded holes of the dead front, as illustrated in Figure 3. Fasten filler
plate to the dead front with four #10-32 x
3
/
8
screws [12] tightened to 27-36 in-lb.
11. Reattach the dead front to the interior with the 8 screws removed in step 2.
Tighten the screws to 27-36 in-lb.
