GE Industrial Solutions Programmer Disconnect User Manual
Page 8
7
Programmer Disconnect — Accessory Manual for Retrofil CB
DEH-41532 02/12
3. Slide the inner frame assembly to its maximum inserted condition.
4. Note that his position corresponds to the frame position when the breaker would be all the way in and
fully connected.
5. Use the slot, inner semicircle as a datum reference and mark the mounting-hole locations using the template
shown in
Figure 9
. Dimensions shown are in inches.
6. Drill ¼-inch diameter holes at 4 locations as marked.

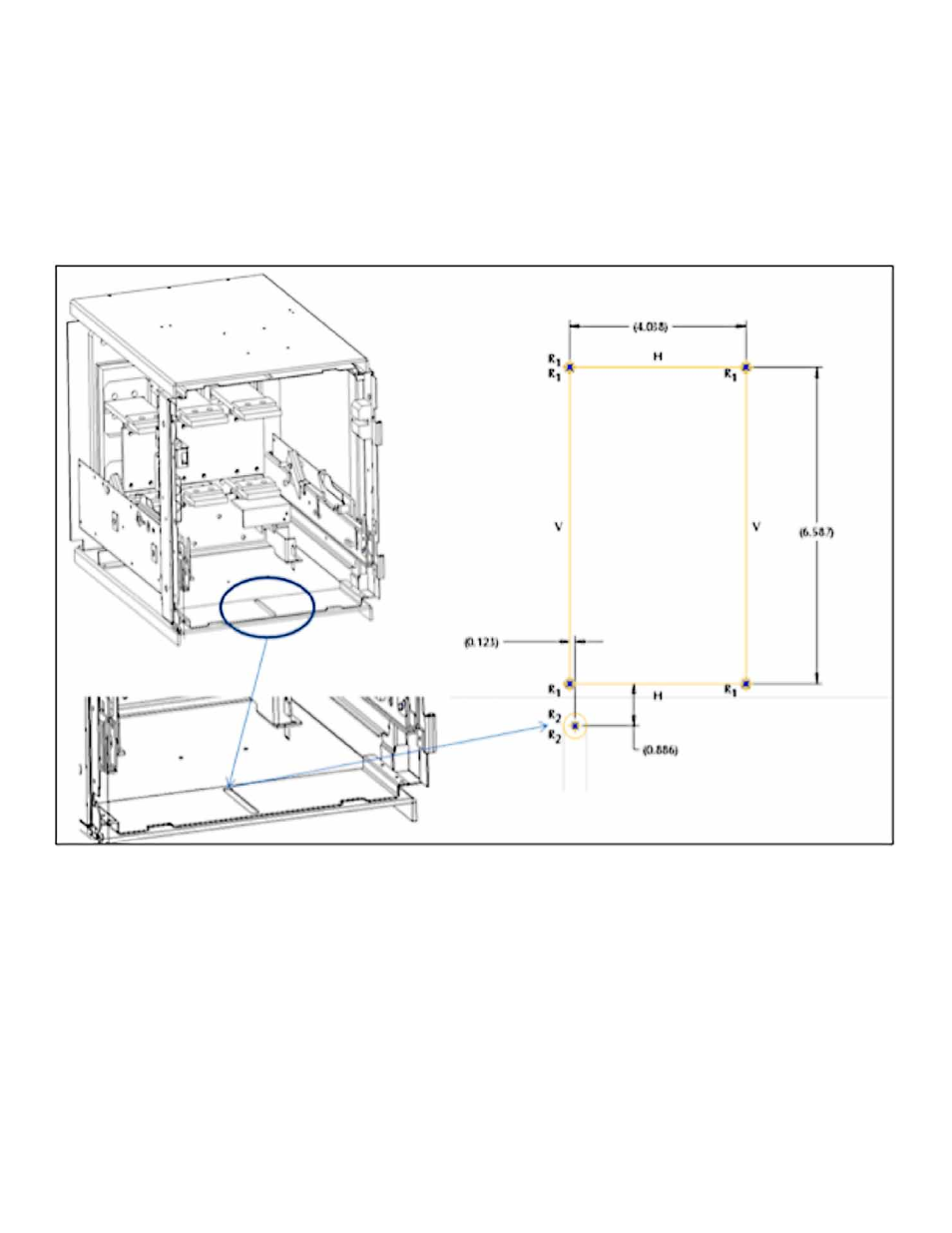

Figure 9. AKD-6—Slide the Inner Frame (Dimensioning)
7.
Place the programmer disconnect assembly on the mounting holes and secure it to the base of the programmer
using hardware (Bolt—M6 X 35, Nut—M6 (metric)) provided along with the programmer disconnect assembly kit
(
Figure 10
).
8. Check the movement of programmer disconnect on slides for biasing.
9. Tighten the hardware hand-tight (
Figure 11
).
10. From the disconnect plug, route the wire to suitable incoming cables from the compartment.
