5
Programmer Disconnect — Accessory Manual for Retrofil CB
DEH-41532 02/12

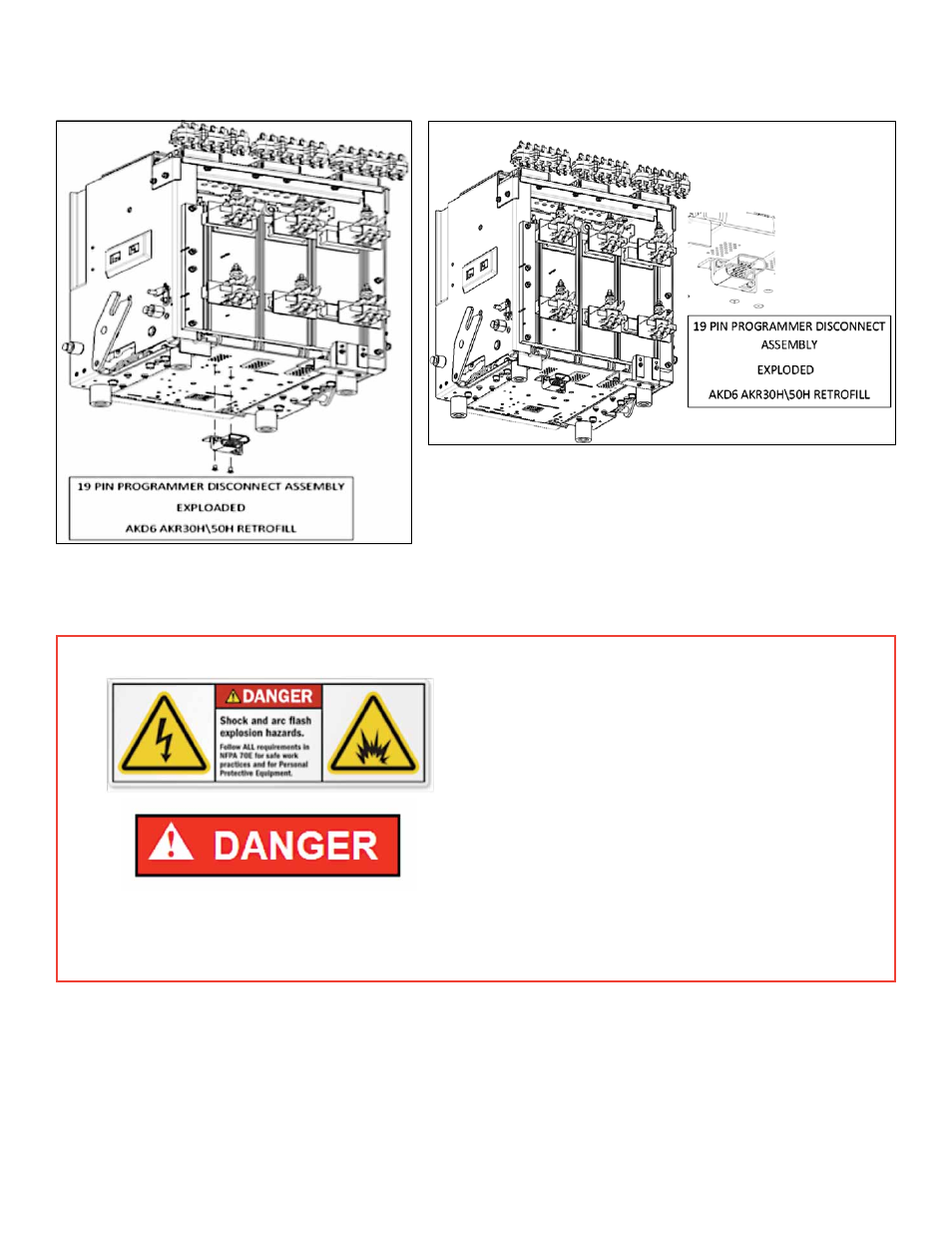

Figure 5. 19-Pin Programmer Disconnect for
the AKD-6 AKR30H\50H Retrofill, Exploded View
Figure 6. 19-Pin Programmer Disconnect AKD-6
AKR30H\50H Retrofill, Installed
AKD-6—Programmer Secondary Disconnect (Compartment Side)
• Turn off all power to switchgear. Tagout
and lockout main source, up-stream or
main breaker.
• Failure to comply with these instructions
will result in death or serious injury from
severe burns caused by arc flashing that
has exceedingly high temperatures.
• Always wear personal protection equipment
according to OSHA standards and appropriate
to the severity of potential burns.
• Ensure only qualified personnel install, operate, service, and maintain all electrical equipment.
• Installing the programmer disconnect should not be carried out when the compartment is live.
• The compartment should be de-energized before the installing the programmer disconnect assembly.
1. Check the movement of programmer disconnect on slides for biasing.
2. Complete the wiring harness from the programmer disconnect to source wiring.
NOTE: 12-pin programmer disconnect configuration is not provided with the AKD6 version of Retrofils of EntelliGuard ACB.
