Data Sheet
July 23, 2013 ©2013 General Electric Company. All rights reserved.

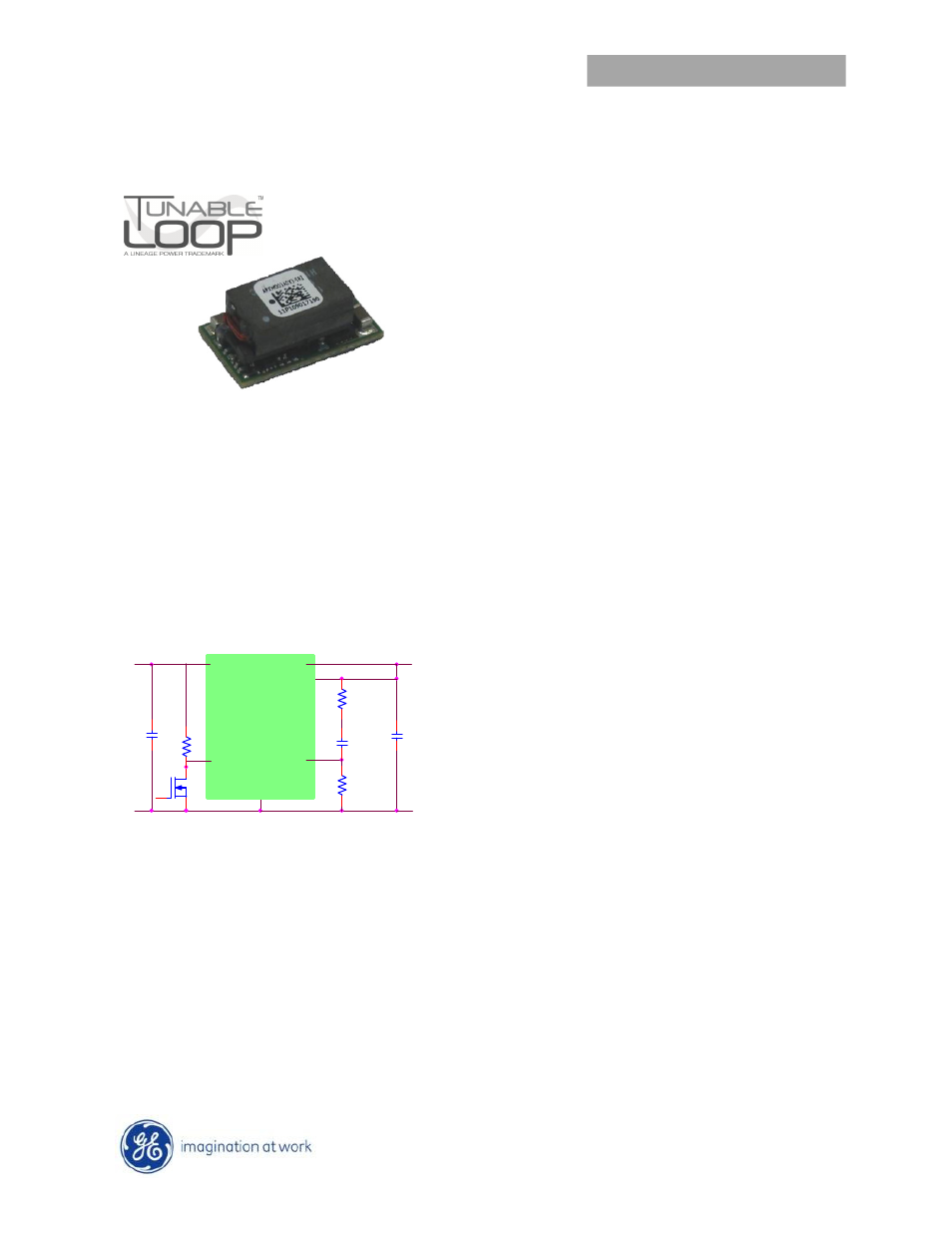

9-36V ProLynx TM 3A: Non-Isolated DC-DC Power Modules
9Vdc –36Vdc input; 3Vdc to 18Vdc output; 3A to 1.5A Scaled output current
9Vdc –24Vdc input; -3.3Vdc to -12Vdc output 1 , 3A to 0.7A Scaled output current
Features
 Compliant to RoHS EU Directive 2002/95/EC (Z versions)
 Compatible in a Pb-free or SnPb reflow environment (Z
versions)
 Extra Wide Input voltage range (9Vdc–36Vdc)
 Output voltage programmable from 3Vdc to 18 Vdc via
external resistor
 Tunable Loop TM to optimize dynamic output voltage
response
 Patent Pending AutoLimit automatic scaling of current limit
with output voltage
 Output overcurrent protection (non-latching)
 Overtemperature protection
 Remote On/Off
 Remote Sense
 Small size: 20.3 mm x 11.4 mm x 8.5 mm (0.8 in x 0.45 in x
0.335 in)
 Wide operating temperature range (-40°C to 85°C)
 UL* 60950-1, 2 nd Ed. Recognized, CSA † C22.2 No. 60950-1-
07 Certified, and VDE ‡ (EN60950-1, 2 nd Ed.) Licensed
 ISO** 9001 and ISO 14001 certified manufacturing facilities
Applications
 Industrial equipment
 Distributed power architectures
 Intermediate bus voltage applications
 Telecommunications equipment
Description
The 9-36V ProLynx TM series of power modules are non-isolated dc-dc converters that can deliver up to 3A of output current. These
modules operate over an extra wide range of input voltage (V
IN
= 9Vdc–36Vdc) and provide a precisely regulated output voltage from
3Vdc to 18Vdc, programmable via an external resistor. Two new features added with this family of products are the ability to
externally tune the voltage control loop and a variable current limit inversely dependent on output voltage. Other features include
remote On/Off, adjustable output voltage, over current and overtemperature protection. The Tunable Loop
TM , allows the user to
optimize the dynamic response of the converter to match the load with reduced amount of output capacitance leading to savings on
cost and PWB area and AutoLimit enables the module to deliver the max possible output power across the entire voltage range.
* UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
1 Output range linked to input voltage range see page 24
RoHS Compliant
Co
VOUT
Vin+
SENSE
Q1
Vout+
TRIM ON/OFF
Cin
VIN
MODULE
RTUNE
GND RTrim
CTUNE R
