GE Industrial Solutions Spectra RMS Cable Operators - Manual (Page 3)

X Y Z
SE & SF 0.82 7.13 3.06
SG 1.00 7.27 3.46
SK 0.54 9.02 4.60
Maximum Dimensions in Inches
Enclosure 36” Cable 48” Cable
Depth E* F G E* F G
8 13.5 4.0 15.0 25.5 16.0 27.0
10 13.0 5.0 14.8 25.0 17.0 26.8
12 12.8 6.0 14.5 24.8 17.0 26.5
16 10.5 4.5 14.2 22.5 16.5 26.2
18 8.5 3.5 12.6 20.5 15.5 24.6
20 — 0.5 10.0 22.0 15.0 24.0
24 — — — 19.5 14.0 22.0
* Maximum E dimension only if F = 4.5”.

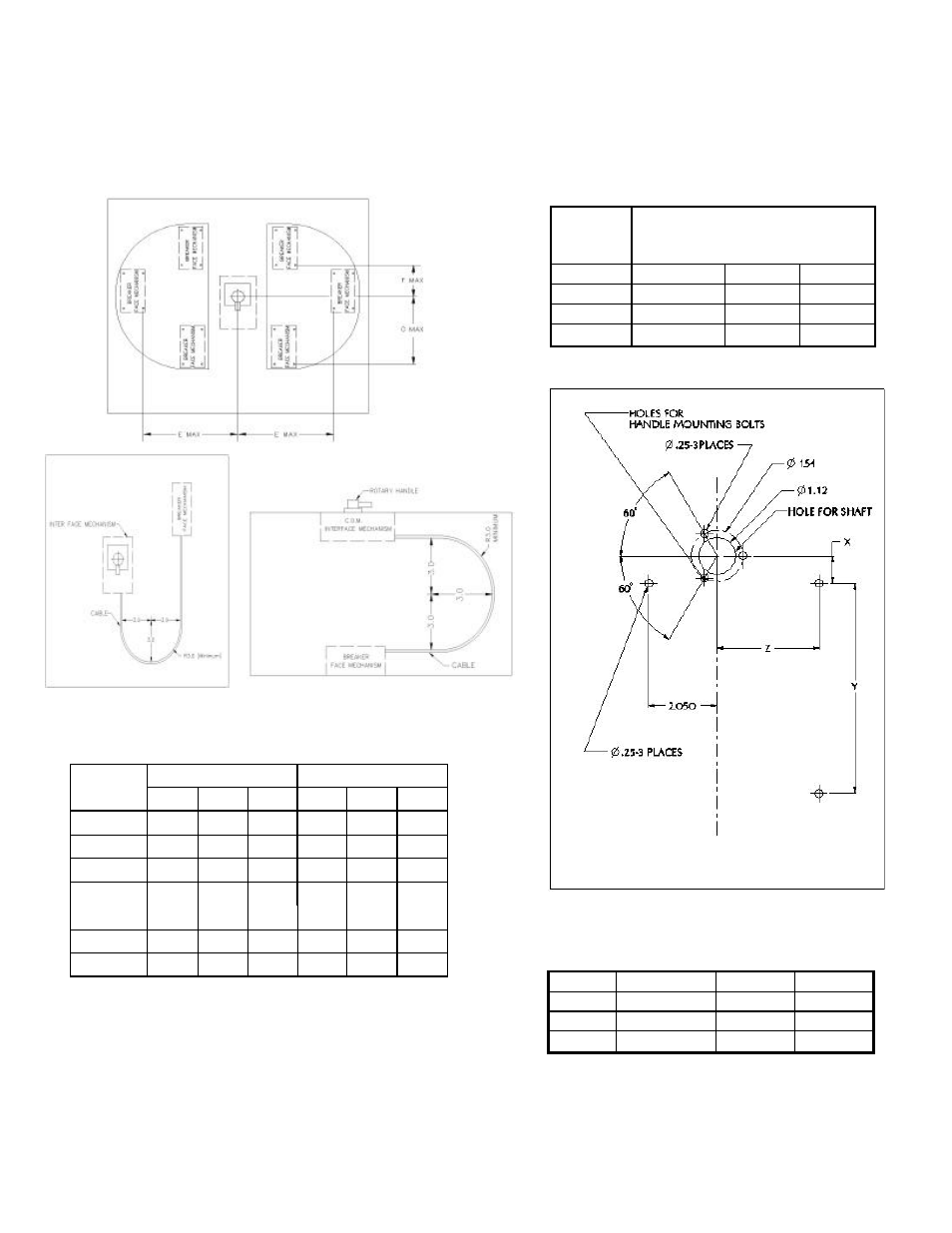

Table 4. Drilling Diagram
Figure 2. Shaft Length
Figure 3. Drilling Diagram
Panel
Board
Thickness
Shaft Length (Y)
(Inches) S/E ,S/F S/G S/K
0.075 3.0 3.0 3.0
0.125 3.0 3.0 3.0
0.1968 3.12 3.12 3.12
Table 2. Approximate Breaker Mounting Zone zone
Table 3. Shaft Length
3
To determine maximum mounting dimensions for
60-inch through 120-inch-long operating cables,
add the respective additional lengths to the 48-inch
cable maximum dimensions. (For example, add 12
inches to E, F, and G dimensions for 60-inch cable
length.)
