Page 12

Installing the Trip Unit
1. Remove the large screw from the rear of the trip unit.
Place the trip unit in position on the mounting plate,
with the 50-pin connector aligned with the opening in
the plate. Secure with the large screw, as shown in
Figure 16.
2. Insert the 50-pin female connector on the wiring
harness into the trip unit connector through the rear
of the mounting plate. Secure to the mounting plate
with the two small screws provided, as shown in
Figure 16.
3. Place the trip unit and mounting plate in position on
the support bracket mounted on the breaker. Secure
with the three screws, lock washers, and flat washers
through the holes in the mounting plate into the
tapped holes in the bracket, as shown in Figure 17.
Configuring the Trip Unit
See DEH-40034 for detailed instructions for setting up
ProTrip trip units.

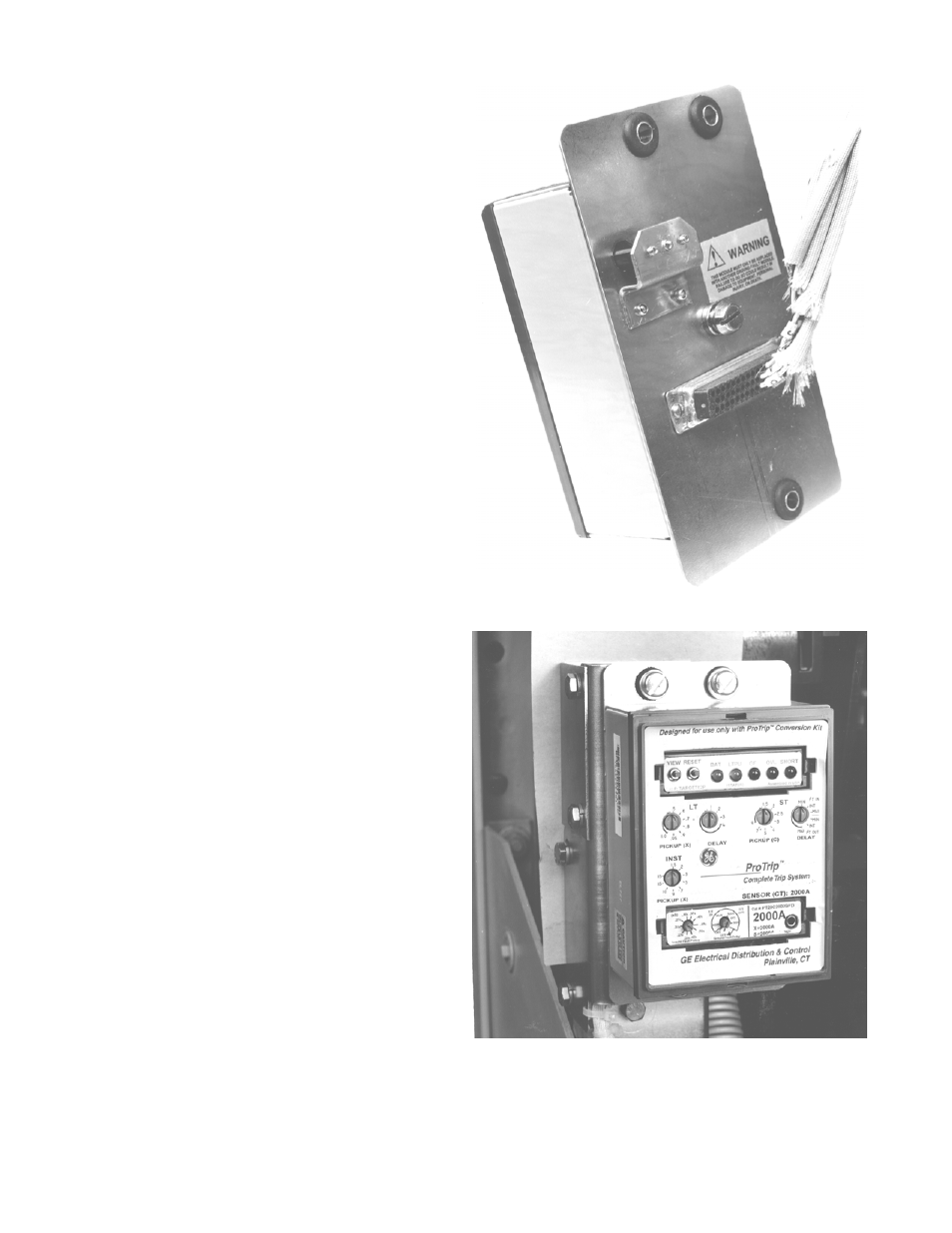

Figure 16. Attaching the trip unit to the mounting plate.
Figure 17. Trip unit mounted onto the breaker.
12
