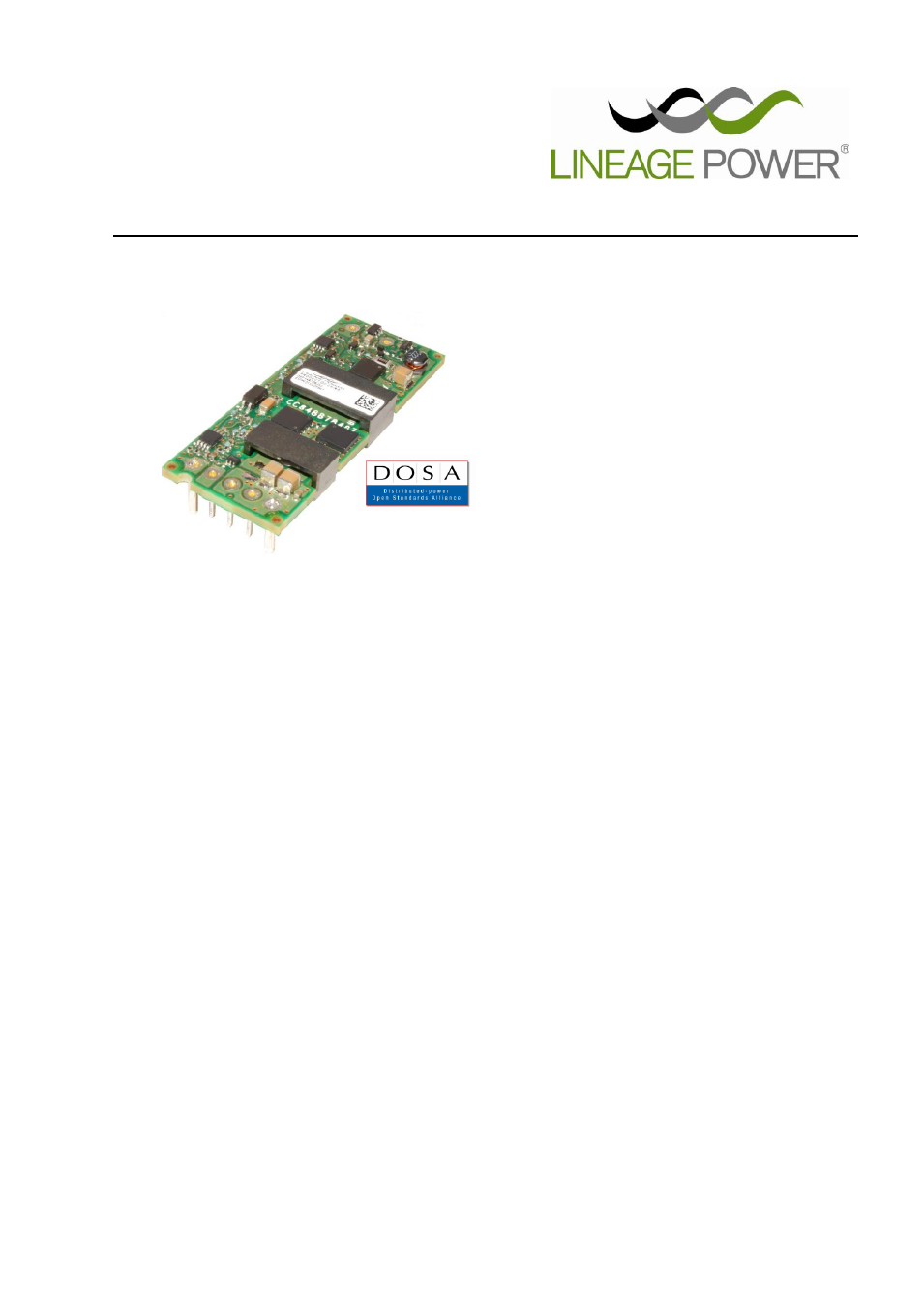

ESTW015A0F Series (Eighth-Brick) DC-DC Converter Power Modules
36
–75Vdc Input; 3.3Vdc Output; 15A Output Current
*
UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
§
This product is intended for integration into end-user equipment . All of the required procedures of end-use equipment should be followed.
¤ IEEE and 802 are registered trademarks of the
Institute of Electrical and Electronics Engineers, Incorporated.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS09-004 ver.1.03
PDF name: ESTW015A0F.pdf
STINGRAY
™ SERIES
Features
Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
Compliant to ROHS EU Directive 2002/95/EC with
lead solder exemption (non-Z versions)
Delivers up to 15A Output current
High efficiency 91% at full load (Vin=48V
dc
)
Full load at T
A
=85
o
C for airflow of 1 m/s(200 LFM)
or greater
Industry standard, DOSA compliant footprint
57.9mm x 22.8mm x 8.5mm
(2.28 in x 0.9 in x 0.335 in)
Wide input voltage range: 36-75 V
dc
Tightly regulated output
Constant switching frequency
Positive remote On/Off logic
Input under voltage protection
Output overcurrent and overvoltage protection
Over-temperature protection
Remote sense
Output Voltage adjust: 80% to 110% of V
o,nom
Wide operating temperature range (-40°C to
85°C)
UL* 60950-1, 2
nd
Ed. Recognized, CSA
†
C22.2 No.
60950-1-07 Certified, and VDE
‡
(EN60950-1, 2
nd
Ed.) Licensed
CE mark meets 2006/95/EC directive
§
Meets the voltage and current requirements for
ETSI 300-132-2 and complies with and licensed for
Basic insulation rating per EN60950-1
2250 V
dc
Isolation tested in compliance with IEEE
802.3
¤
PoE standards
ISO
**
9001 and ISO 14001 certified manufacturing
facilities
Applications
Distributed power architectures
Wireless networks
Access and optical network Equipment
Enterprise Networks including Power over Ethernet
(PoE)
Latest generation IC’s (DSP, FPGA, ASIC) and
Microprocessor powered applications
Options
Negative Remote On/Off logic (-1 option,
preferred/standard)
Surface Mount version (-S option)
Auto-restart (-4 option, preferred/standard)
Trimmed leads (-6 or -8 options)
Description
The Lineage Power
®
Stingray
™ Series, ESTW015A0F, Eighth-brick power modules are cost optimized isolated dc-dc
converters that can deliver up to 15A of output current and provide a precisely regulated output voltage over a wide range of
input voltages (Vin = 36 -75V
dc
). The module achieves full load efficiency of 91% at 3.3V
dc
output voltage. The open frame
modules construction, available in both surface-mount and through-hole packaging, enable designers to develop cost- and
space-efficient solutions. Standard features include remote On/Off, remote sense, output voltage adjustment, overvoltage,
overcurrent and overtemperature protection.
RoHS Compliant
