TM
COMMISSIONING GUIDE
ASPMETER
DET-757
PAGE 5
©2011 For technical support please contact
10111
our GE tech support team at 1-800-GE-1-STOP (1-800-431-7867), Option 4

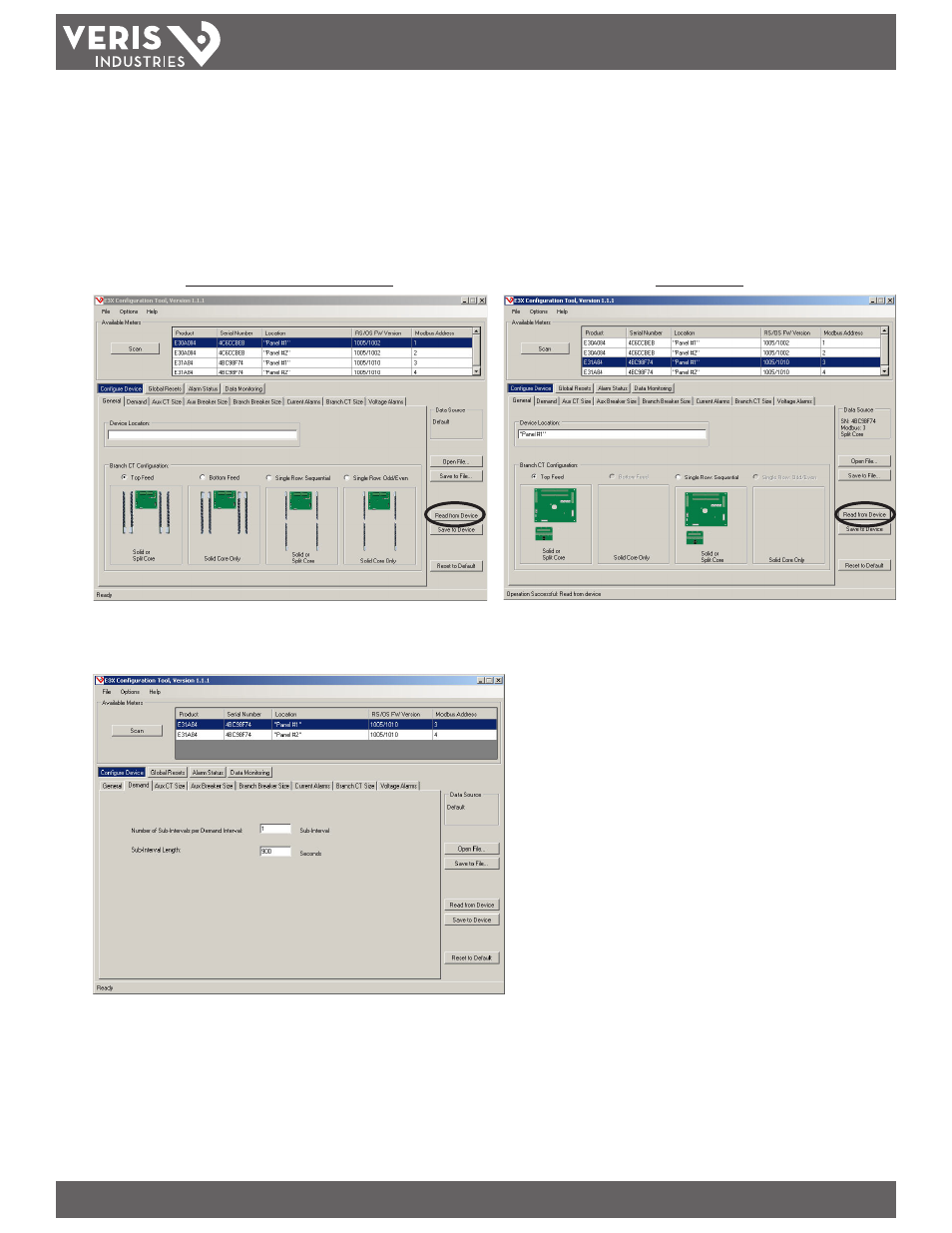

Configure Device Button
After scanning for devices, the tool locates all E3x and ASPMETER devices connected to the system. Select a meter from the list and click the Read From Device button to
configure.
1. General.
Select the CT configuration used in the installation. This tab looks different for the ASPMETER (E30) solid-core and E31 split-core devices, with only the options for the
selected device appearing as options. The Device Location is an optional description the installer can enter to specify the location of each device on the network. Note:
If the configuration tool is opened on a computer not connected to a meter, the tool defaults to the E30 General tab.
E30 General Tab (Use for ASPMETER)*
E31 General Tab
2. Demand.
Select the number of sub-intervals and the sub-interval length to be used in data collection.
* Note: the ASPMETER is only available
as a solid-core product.
