Commissioning guide – GE Industrial Solutions ASPMETER commiss User Manual
Page 4
TM
COMMISSIONING GUIDE
ASPMETER
DET-757
PAGE 4
©2011 For technical support please contact
10111
our GE tech support team at 1-800-GE-1-STOP (1-800-431-7867), Option 4

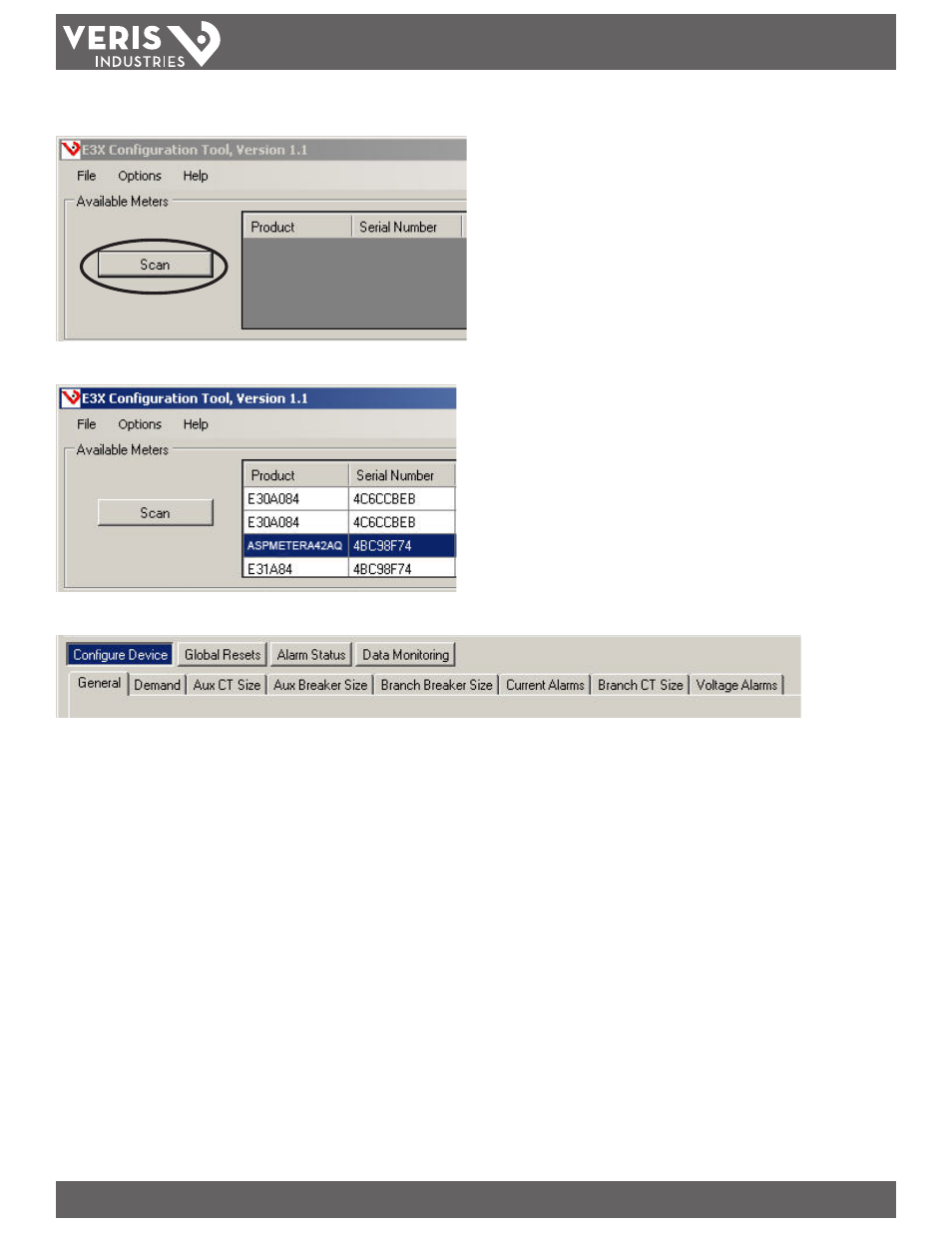

Click the Scan button to have the software locate available devices on the system.
All devices located in the scan will appear in the box adjacent to the Scan button. Click on the device you wish to configure.
Below the Scan window is a row of buttons: Configure Device, Global Resets, Alarm Status, and Data Monitoring.
When each button is selected, a unique row of tabs appears below. The information in these tabs must be configured to the system requirements. Every setting has a default
value programmed in. The next sections describe the settings found within each tab.
Each main board with four
ribbon cable connections uses
two Modbus addresses.
