DEH40155
DEH40155 Rev.No.02 4
Figure 3. Attaching the shield insert to the shield for TEY breaker installation in
A-Series
®
II Panelboards.
9. If TEY breakers has to be installed after SG or SF/TFJ or SE/TED/TQD as shown
in Figure 4 then gap between the breakers (dim A) has to be followed as

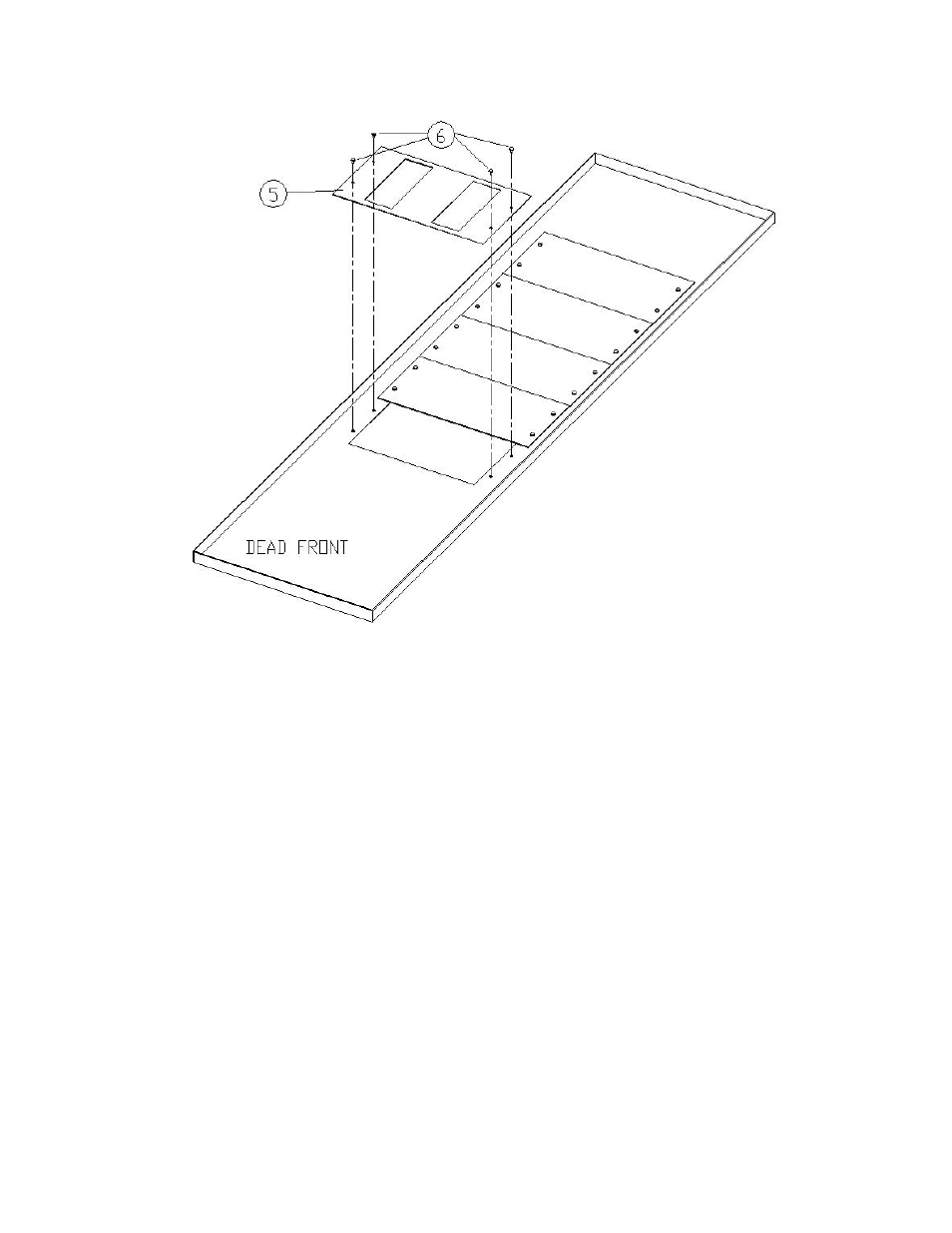

mentioned in Table 2. Replace the subsequent blank filler of dead front with TEY
filler plate given in kit ASPP6TEY12D using steps 9 to 11.
10. If TEY breaker has to installed immediate after crossbar as shown in Figure 5
then gap between the breaker and crossbar has to be 0.06inch.
