Cch125 sseries – GE Industrial Solutions CCH125 Series User Manual
Page 2

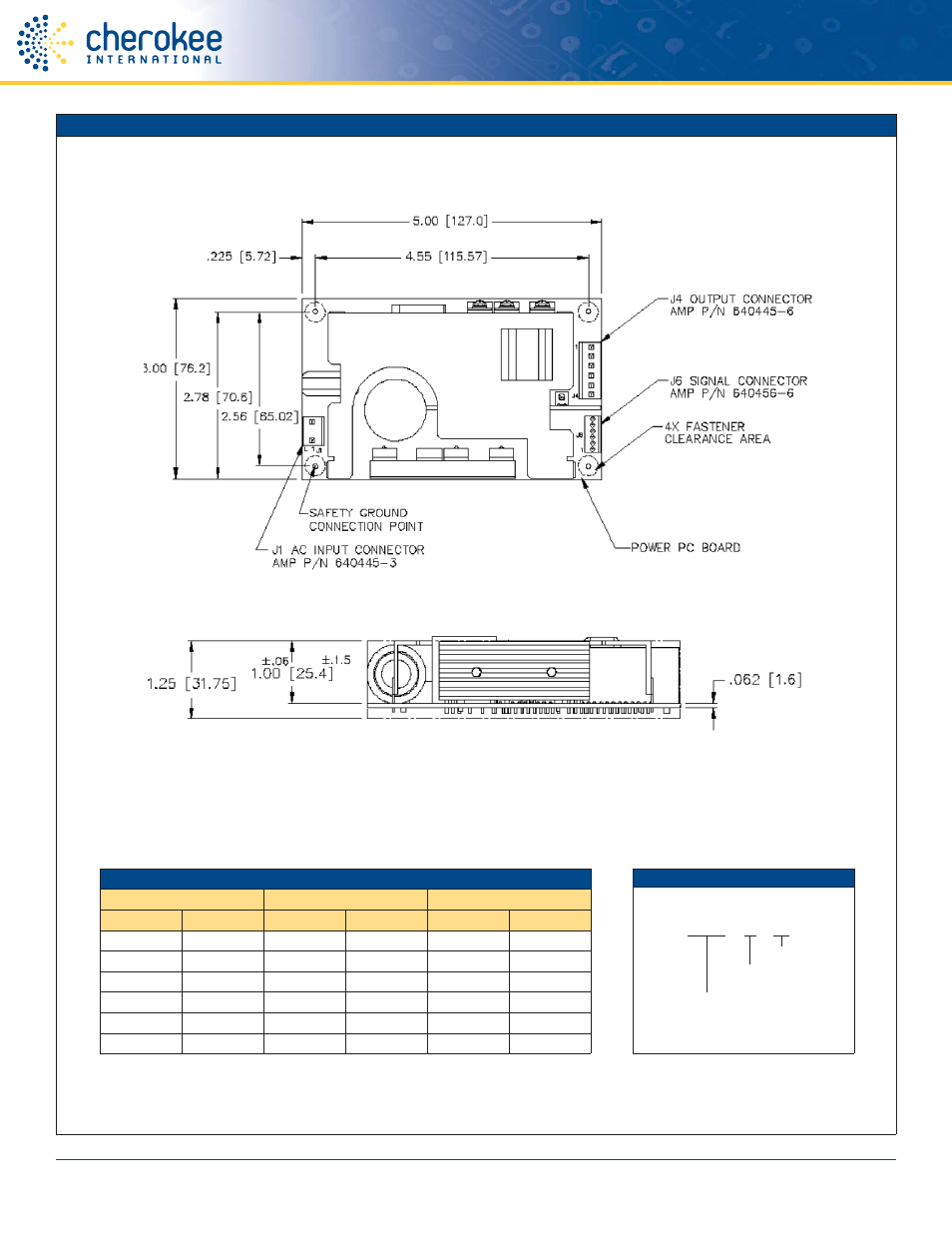

OUTLINE DDRAWING
CCH125 SSeries
125 Watt Switching Power Supply
PIN AASSIGNMENTS
J1 ((AC Input)
J4 ((DC Output)
J6 ((Status)
PIN
FUNCTION
PIN
FUNCTION
PIN
FUNCTION
1
LINE
1
V1
1
RTN
2
N / C
2
V1
2
-S
3
NEUTRAL
3
V1
3
+S
4
RTN
4
AC FAIL
5
RTN
5
PS OK
6
RTN
6
REMOTE
J1 Connector is AMP Part # 640445-3
J4 Connector is AMP Part # 640445-6
J6 Connector is AMP Part # 640456-6
PART NNUMBER DDEFINITION GGUIDE:
CCH125
F1
-1A
Revision
Output Model
F1 : 12V @ 10.5A
Series Name:
Cherokee International (North America)
2841 Dow Avenue
P: (714) 544-6665
Tustin, CA 92780 USA
F: (714) 838-4742
Cherokee International (Europe)
Boulevard de l’Europe, 131
P: +32.10.438.510
B-1301 Wavre, Belgium
F: +32.10.438.213
Cherokee International (China) Power Supply Ltd.
1353 Chenqiao Road, Shanghai Sengpu Industrial Park
Shanghai, 201401 China
P: 021 6710 8910
cherokeepwr.com
