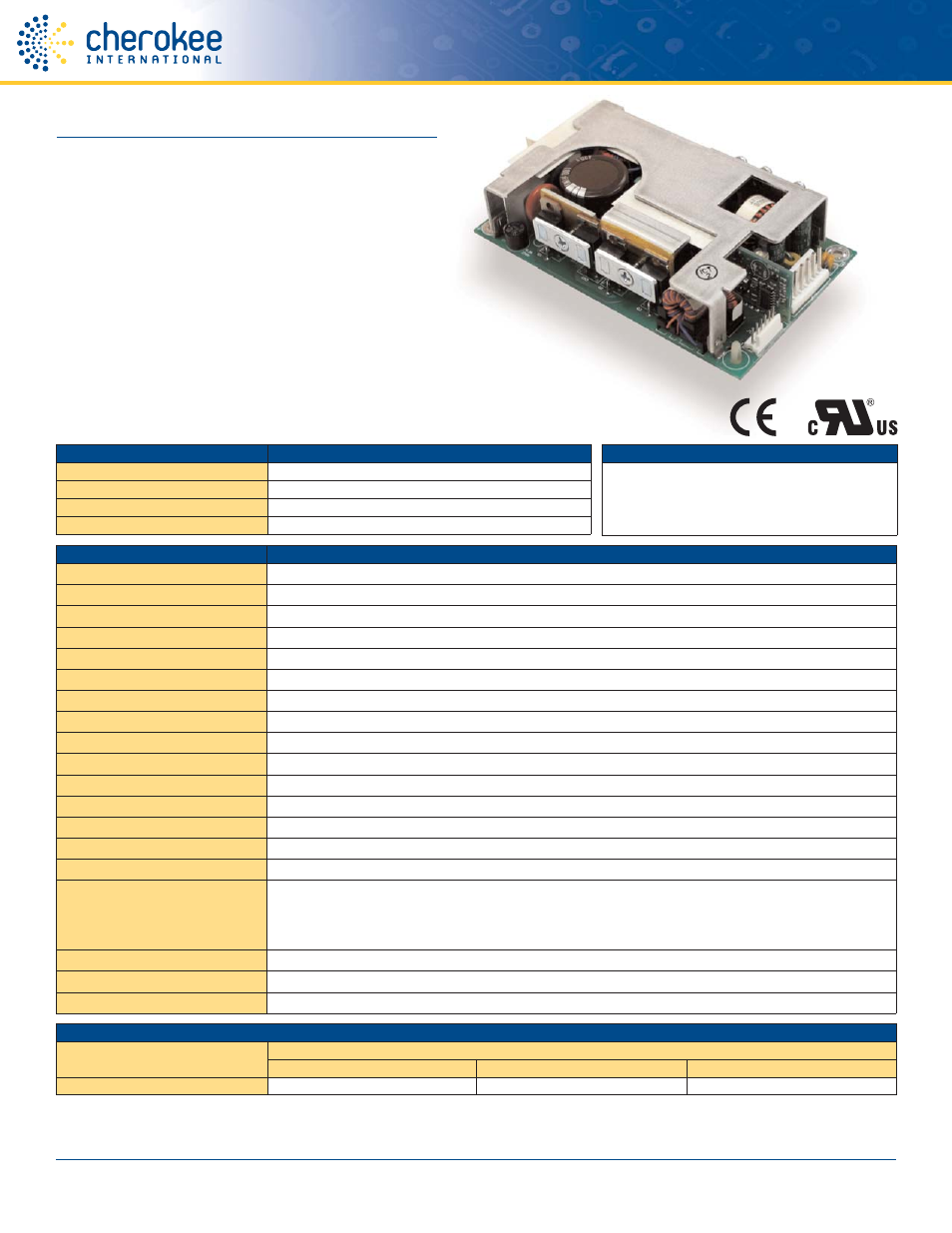

Cch125 sseries, Product ffeatures

CCH125 SSeries
125 Watt Switching Power Supply
Product FFeatures:
125 W
Watt M
Modular PPower SSupply
Universal AAC Input RRange ((90-2264 VVAC)
Optional PPower FFactor CCorrection ((CCH Models)
Low PProfile ffor 11U HHigh AApplications
Meets VVDE/FCC CClass ““B” EEMI
Industry SStandard 33 xx 55” FFootprint
Total PPower OOverload LLimit PProtection
Over-CCurrent PProtection
International SSafety CCertifications - UUL, CCSA, TTUV &
& CCE M
Mark ((LVD)
SPECIFICATIONS
125 W
Watt SSingle OOutput SSwitching PPower SSupply
Input Voltage Range
Universal AC Input (90-264VAC; 47-63Hz)
Harmonic Current
0.99 Power Factor (EN61000-3-2 Class D Compliant)
Inrush Current (Cold Start)
25A @ 115VAC
Input Protection
Single fuse (6.3A / 250VAC / Slow Blow)
EMI
FCC and VDE Level “B” (Conducted)
Efficiency
75% typical (measured at full load)
Maximum Output Power
125 Watts Continuous
Total Power Over-Load Limit
Set at 138W typical by sensing the primary input current
Voltage Adjustment Range
+/-5%
Regulation
+/-2% max
Output Ripple & Noise
1% pk-pk @ 20MHz with 0.1 F ceramic and 10 F electrolytic caps across the output
Over Voltage Protection
112.75 - 137.5%
Over Current Limit
110-135% of Iout Nominal. Output recovers when the fault is removed
Hold-Up Time
16ms min at 115 VAC / 60Hz Input and 84 Watt Output Operation
Operating Temperature
Full load from 0 to 50ºC. Derates linearly from 50ºC to 65ºC at 2.5% per ºC
Status & Control
Remote Sense (compensates for up to 250mV Drop)
Remote on/off Control (A low signal turns the power supply off)
AC FAIL: Signal is high when AC input voltage signal is within specified regulation.
DC Good (PS OK): Signal is High when DC output voltage is within regulation.
Shock & Vibration
Shock (11±3ms, 3 axes, Half Sine): 15Gpk, Vibration (Random vibration, 5-500Hz, 10min each axis: 2.4Grms
Dimensions
3.00 x 5.00 x 1.25” (215.9mm x 125.7mm x 38.1mm) for standard open frame model
Safety Approvals
UL 60950-1, CUL CSA 60950-1, TUV IEC 60950-1, CE Mark (LVD)
Specifications listed assume 25°C Ambient Operating Temperature and Full Load Operation unlesss otherwise specfified. This product is qualified for use in OEM equipment and is not appropriate for stand-alone operatiuon. The information contained within this specification
is believed to be true and correct at the time of publication, however, Cherokee International accepts no responsiblity for consequences arising from printing errors or inaccuracies. The information and specifications contained herein are subject to change without notice.
KEY M
MARKET SSEGMENTS &
& AAPPLICATIONS
Automation Equipment
Industrial Applications
Gaming Application
Computer Peripherals
Point of Sale Equipment
Test Equipment
Networking / Datacom
FEATURES
BENEFITS
PFC Compliant to EN61000-3-2
Supports global use of power supply
Input protection per EN61000-4
Designed to operate in harsh environmental conditions
Economical
Lowered system costs
Flexibility with options
Custom capability without NRE & long lead-times
Output CConfigurations
MODEL NNUMBER
V1 OOUTPUT
Vout
Io M
Min
Io M
Max
CCH125F1
12
0.4 A
10.5 A
