2
Keylock Operation
When operating the keylocks, turn both keys
quickly from one position to the other and
remove the key quickly at the end of the
rotation.
“W” and “E” locks operate similar to a 2 barrel
keylock. When one lock is rotated, it causes the
other lock to rotate.
The key is removable from the “E” lock when the
key is turned to the left and the breaker is open.
See Figure 4.
The key is removable from the “W” lock when
the key is turned to the right. See Figure 4.
Locks Rotated Breaker Racking Door
Right Open or Closed Can be opened
Left Locked Open Locked closed
Keylock Ordering Information
Ordering form is available at
http://www.kirkkey.com/websiteimages/KKIC_Ordering_Form.pdf
These instructions do not purport to cover all details or variations in equipment nor to provide for every possible
contingency to be met in connection with installation, operation or maintenance. Should further information be desired or
should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the matter should be
referred to the General Electric Company.
GE Industrial Systems
41 Woodford Ave.
Plainville, CT 06062
www.geindustrial.com
© 2010 General Electric Company
All Rights Reserved
EntelliGuard is a registered trademark of the General Electric Company
DEH - 41500

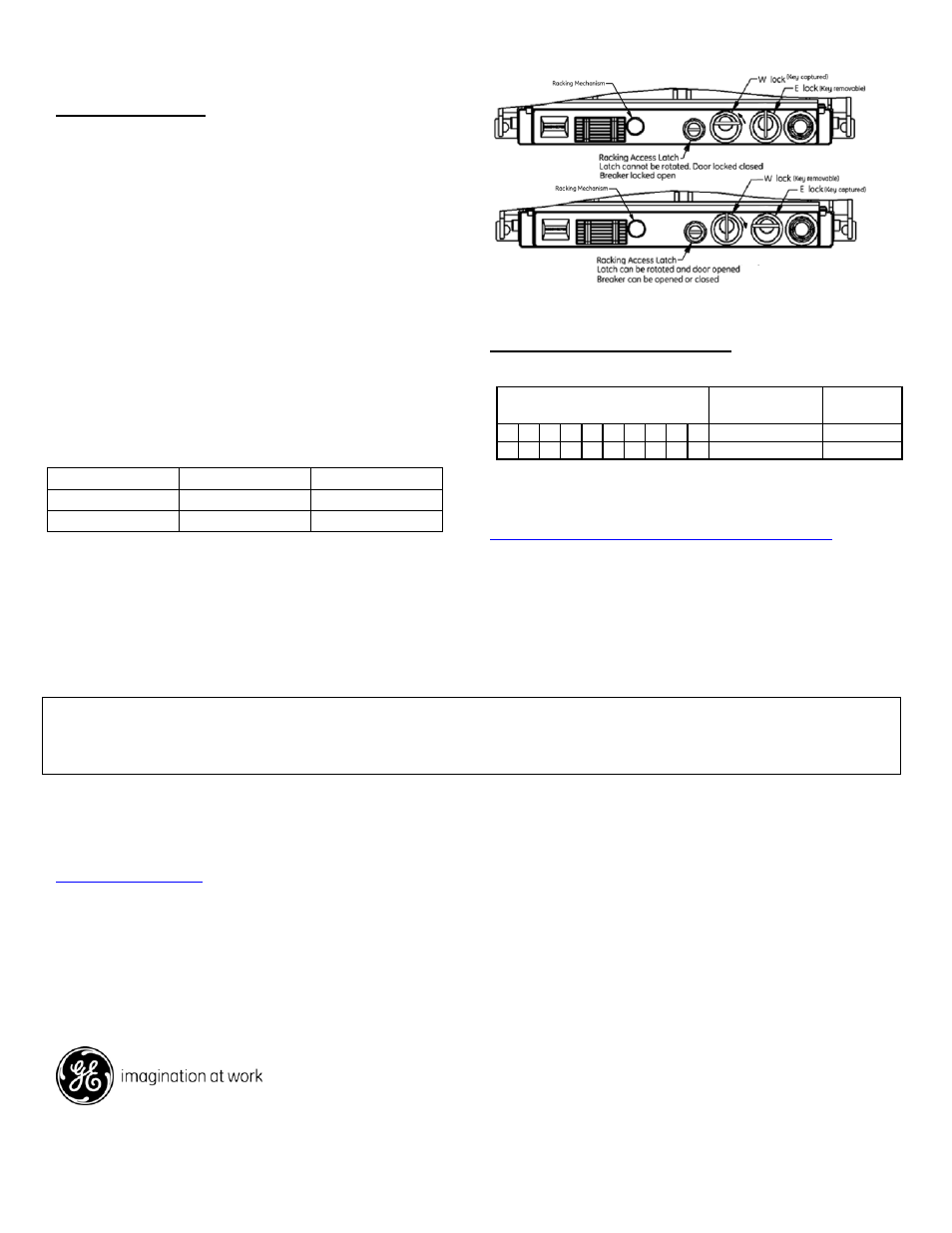

Figure 4
Figure 5
Remarks
Key
Removable
E.W.
K C A M X X X 1 0 S CW TO TRAP E
K C A M X X X 1 1 S CCW TO TRAP W
Reference to Keylock
Ordering Number
