GE Industrial Solutions AF-650 GP Top & Bottom Cover Duct Kit User Manual
Page 2
Instruction
No:
177R0110
V1
May
7,
2009
Page
2
Remove the screws from the top of drive.
Note: remove only the screws located to-
ward the rear of the drive. Do not remove
the screws that are securing the fan in
place. See Figure 1.
Note: The photos in this Instruction Sheet represent a 4x-Frame drive. 5x-Frame drives use parts simi-
lar to those in the photos however they are sized appropriately for the 5x-Frame drives.
Install the top duct cover plate as shown
in Figure 3 using the new 16mm, M5
screws provided with the kit
Install the gasket on the top cover plate
as shown in Figure 2.

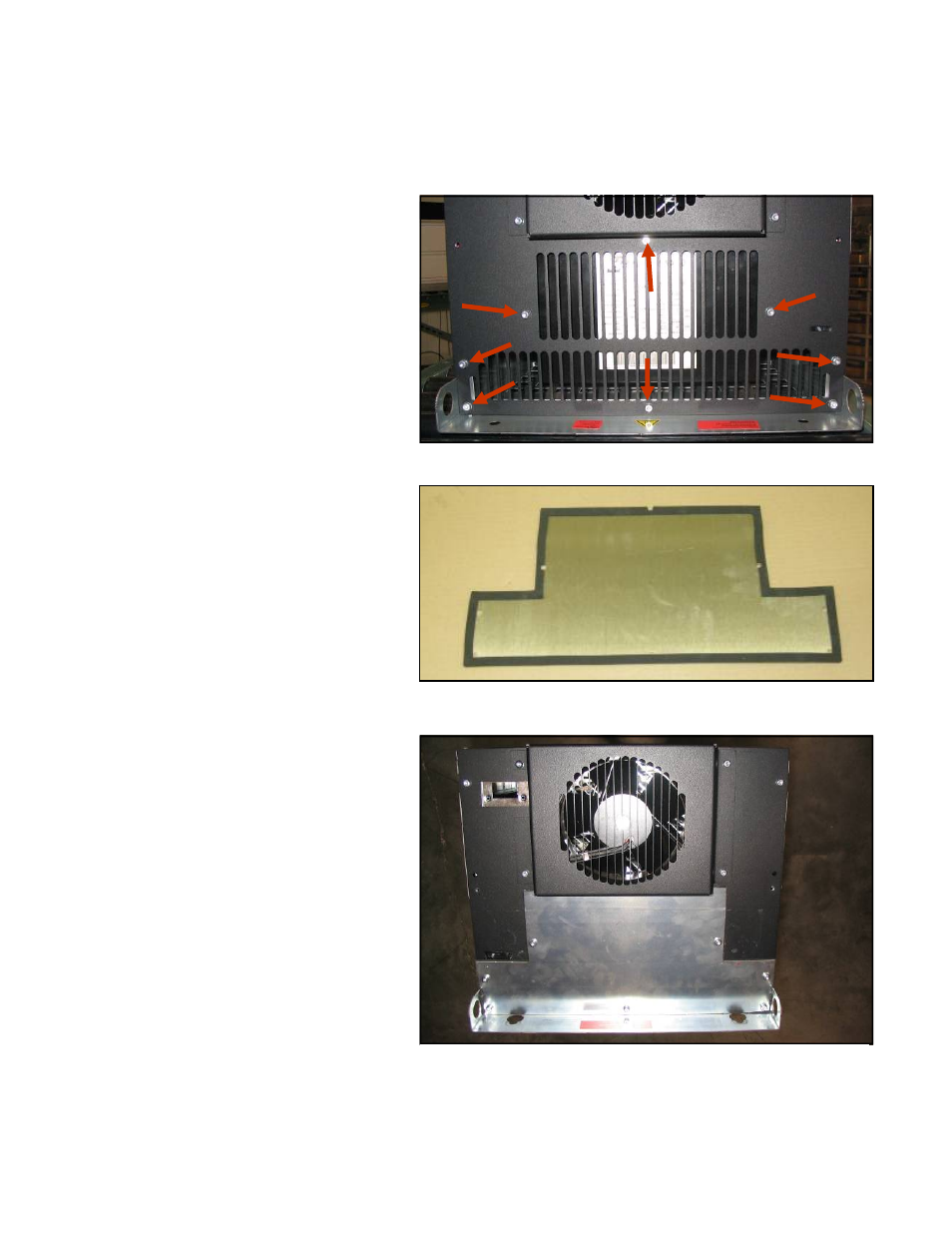

Figure 1. Screws to be removed from top of drive
Figure 2. Gasket applied to top cover plate
Figure 3. Top cover plate installed
177R0110
July 15, 2009
DET-703, Page 2
177R0110
February 25, 2010
DET-703a, Page 2
177R0110
March 15, 2010
DET-703b, Page 2
