GE Industrial Solutions Record Plus Plug-In Bases: FC100 - Manual

DEH40915 Installation Instructions
g

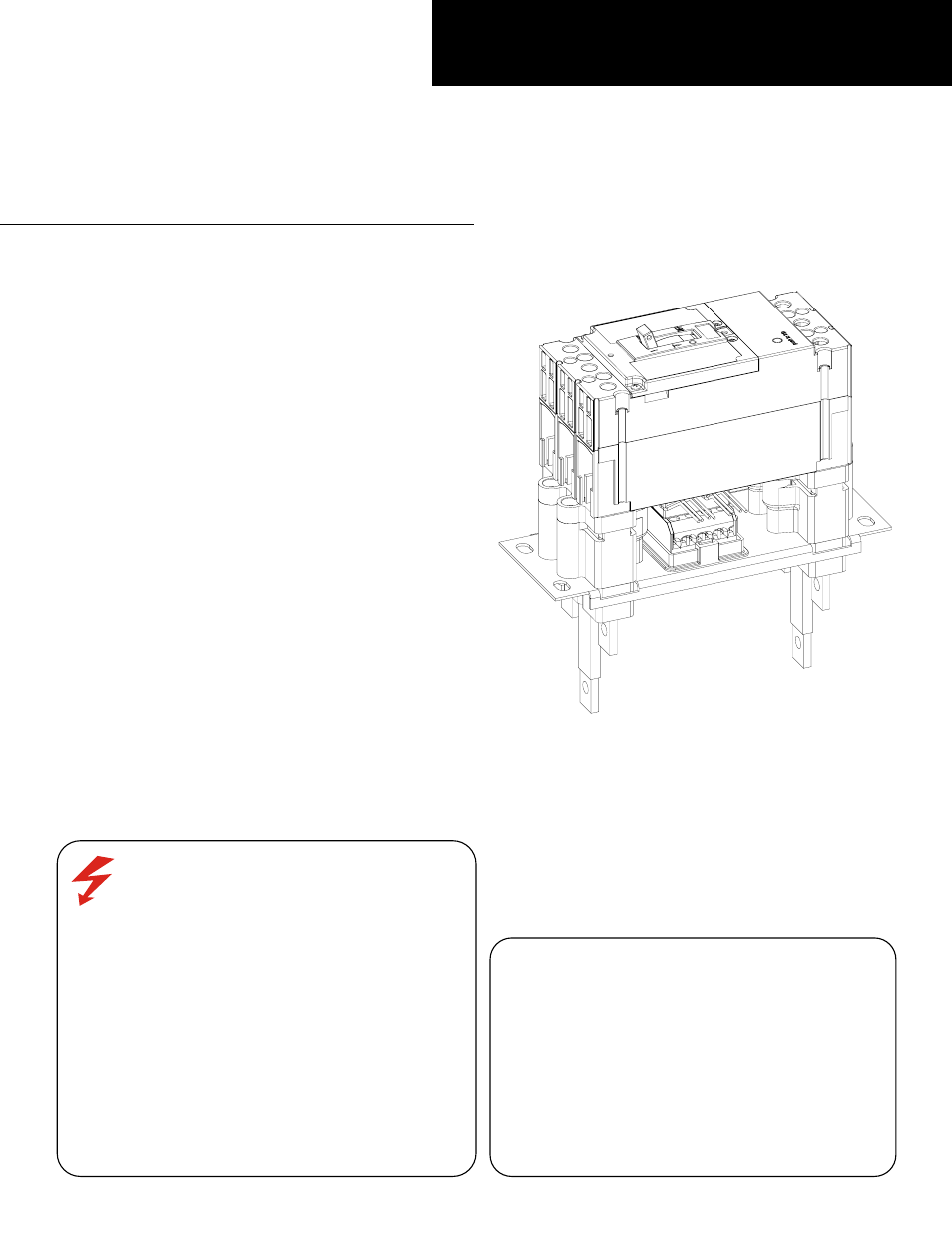

Figure 1. FC100 breaker mounted on Plug-In Base with
Secondary Disconnect and Mounting Plate
Record Plus ™
Molded Case Circuit Breaker
Accessories
Plug In Base
Congratulations and thank you for choosing the
Record Plus TM family of current-limiting c ircuit
breakers. This UL-listed Plug-In Mounting Plate
accessory kit is suitable for use with the FC100
circuit breaker series as illustrated in Figure 1.
Record Plus™ circuit breakers are designed with a
full line of integrated accessories. All units use the
latest in integrated modular circuit breaker
technology for flexibility in application and
maximizing the product’s utilization and
capabilities.
All Record Plus™ circuit breakers and the
accessories are listed by Underwriters Laboratories
to the UL489 standard and the CSA Standard C22.2,
No. 5. These circuit breakers are certified to
IEC60947-2.
These accessories are also for use with our MAG-
BREAK® instantaneous trip-only circuit breakers,
which meet the same standards and are UL-
recognized components for use in motor
applications. They can also be used with our molded
case switches, which are listed per Underwriters
Laboratories to the UL489 standard.
Record Plus™ circuit breakers and their accessories
are designed and manufactured to exceed our global
customers’ high standards for reliability and quality.
Warning: DANGER of Electrical shock or injury. Ensure
ALL electrical power supplies are "OFF” before installing
or removing any devices. The breaker, trip unit or
accessories MUST ONLY be installed and serviced by
QUALIFIED personnel, see NEMA publication AB4.
Caution: This product is NOT suitable for use
in equipment not specifically design to accept
it. Contact equipment manufacturer for
possible equipment modifications.
Avertissement : Danger contre les risques
d'électrocutions. S'assurer avant toutes
manipulations du disjoncteur que les différentes
sources d'alimentation sont en position «OFF». Les
disjoncteurs, unités de protection ou accessoires
doivent être installés par des personnes qualifiées et
habilitées. Lira NEMA publication AB4.
Important: Cet appareil nedoit pas etre
employe dans un equipement non
specialement adapte a cet effet. Contactez le
constructeur concernant les possibles
modifications a apporter a l'equipemen
