9. Tilt the device backwards until the rear hooks
engage in the slots on the mechanism top
support plate as shown in the Fig. 6
.

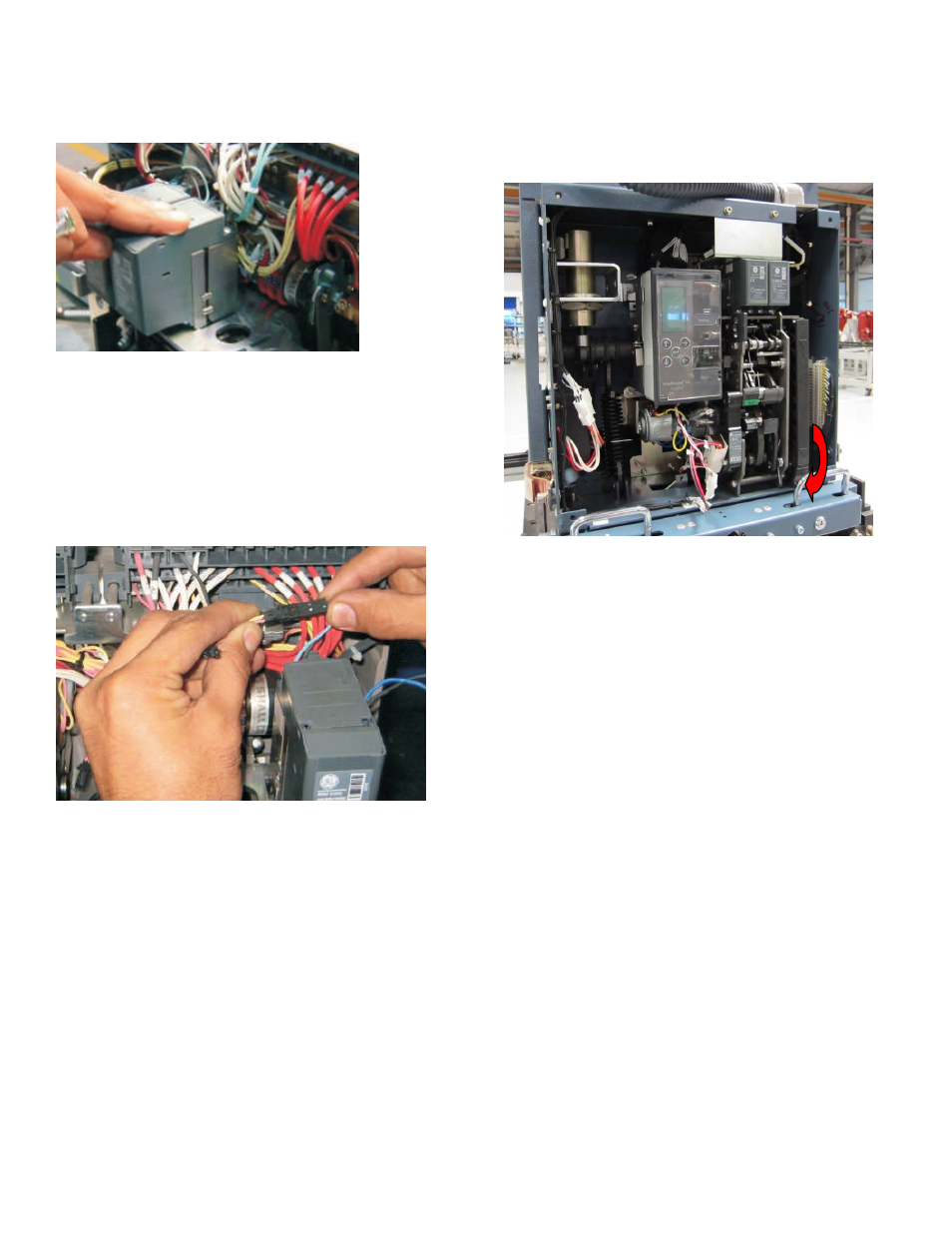

Figure 6. Assembly of coil
10. Plug the connector from the Release
Indication Contact cover with the connectors
from the harness of the trip unit as shown in Fig.7.
While connecting ensure the coils are connected
with the correct connectors from the harness
such as marked as ST1/UV1/CC/ST2&UV2 from
the respective coils.
11. To reinstall the cover, rotate the charging
handle down and slide the front cover over the
handle to assemble the front cover to housing as
shown in Fig. 8.
Figure 8
12. Ensure the fascia is aligned properly with the
trip unit and the pad lock features of the breaker.
13. Fasten the 4 mounting screws of fascia with
the housing using a pozi drive screwdriver. Apply
torque of 3-4 Nm.
Figure 7. Assembly of connector
