2
Rotate the charging handle down and slide the
front cover over the handle to remove the front
cover as shown in Fig. 1.C.

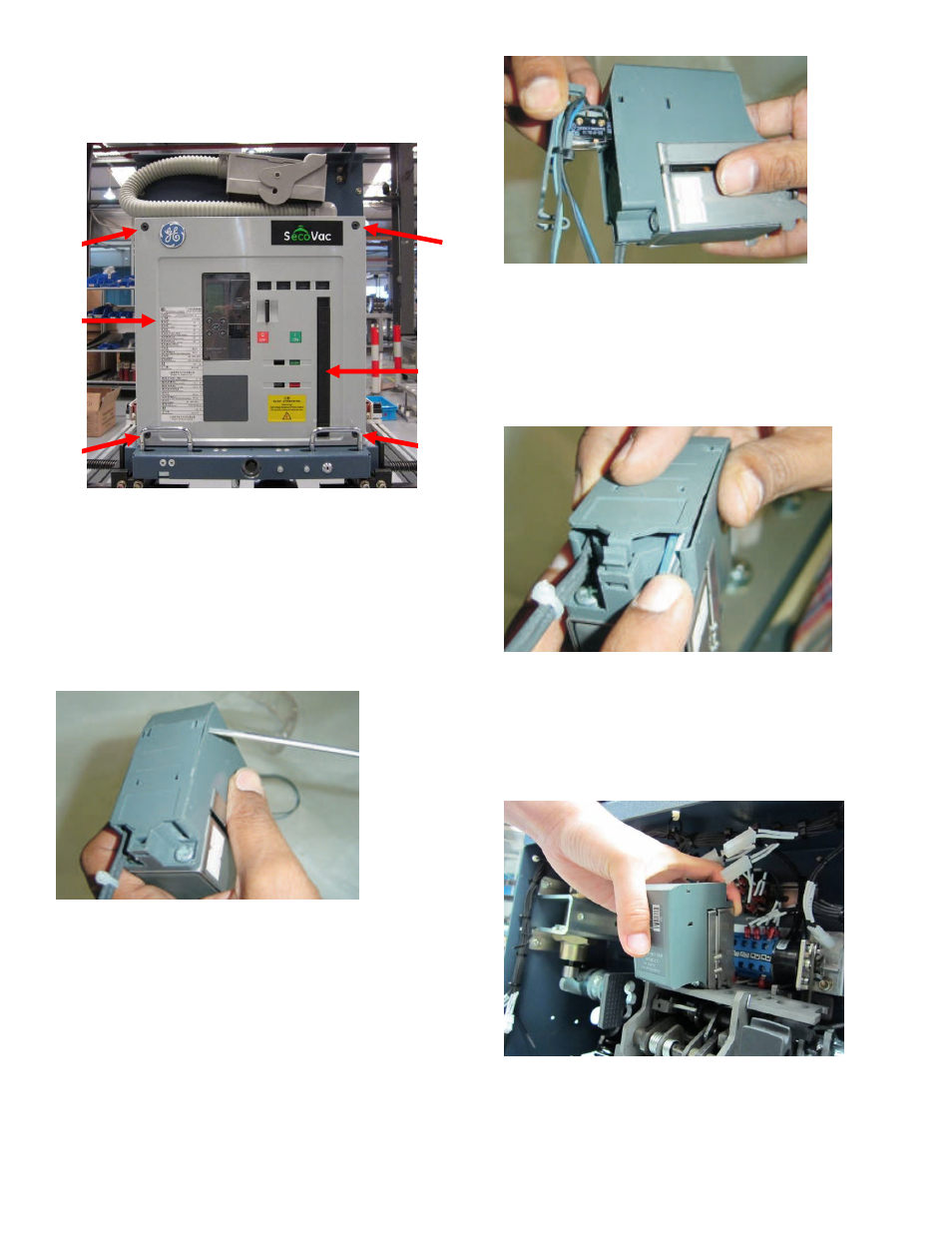

Figure 1. (A) Front Cover (B) Screw Removal (C) Handle
Rotation
4. Remove the existing coil from the mechanism.
5. Remove the coil cover by pressing the three
snaps as shown in Fig. 2
.
Figure 2. Removing the existing cover
6. Align the new cover with Release Indication
Contacts on the coil as shown in Fig. 3.
Figure 3. Cover assembly
7. Guide the wires in the wire opening of the coil
housing as shown in Fig. 4. Press the cover and
ensure the 3 snaps are engaged with the
openings in the coil housing.
Figure 4. Cover assembly
8. Tilt the coil forward and engage the front hooks
into the mechanism top support plate as shown
in the Fig. 5.
Figure 5. Assembly of coil
A
B
C
