GE Industrial Solutions Distribution Cable Harness - Manual

Overview

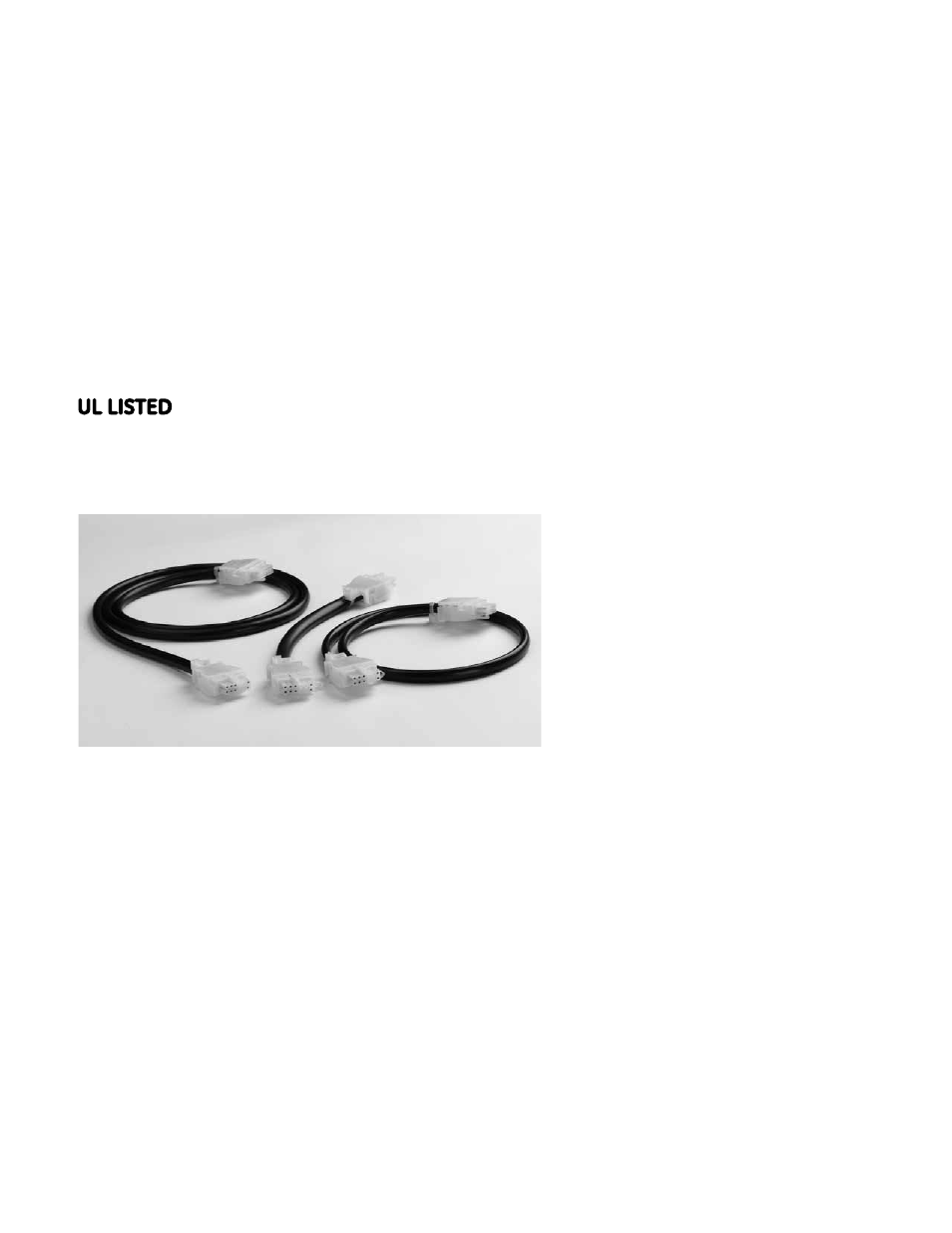

The General Electric Distribution Cable Harness is a
modular connector used to carry a variety of electronic
signals between Spectra
® RMS Molded-Case Circuit
Breakers with microEntelliGuard TM or MicroVersaTrip ®
PM/Plus Trip Units and Distribution Cable Accessories.
The Distribution Cable accessories supported by the
Distribution Cable Harness are as follows:
• Power Supply Plate
• Voltage Conditioner Plate
• Power Supply Assembly
• Voltage Conditioner Assembly
• Distribution Cable Junction Box
• Distribution Cable Extension
• Distribution Cable Terminal Block
• Voltage Module
The Distribution Cable Harness is also used in GE
Spectra
® Series Switchboards to either connect
Distribution Cable Junction Boxes (Cat. Nos. SDCJBB
and SDCJBBC) to other Distribution Cable Junction
Boxes or to connect Distribution Cable Boxes to the
Voltage Module.
Because both ends are receptacles, you cannot use the
Distribution Cable Harness as an extension cable; use
the Distribution Cable Extension (Cat. Nos. SDCEA30
and SDCEA30C) for this application (microEntelliGuard
TM
Trip Units with 20-pin connectors use the SDCEA30C
extension cable).
GEH-6255 Installation Instructions
Distribution Cable Harness
For Spectra ® RMS Molded-Case Circuit Breakers
with microEntelliGuard TM , MicroVersaTrip ® PM or MicroVersaTrip ® Plus Trip Units
For Catalog Number SDCHA11, SDCHA30, SDCHA60
Circuit Breaker Accessory
GE Energy
Industrial Solutions
