GEH-6250 Installation Instructions

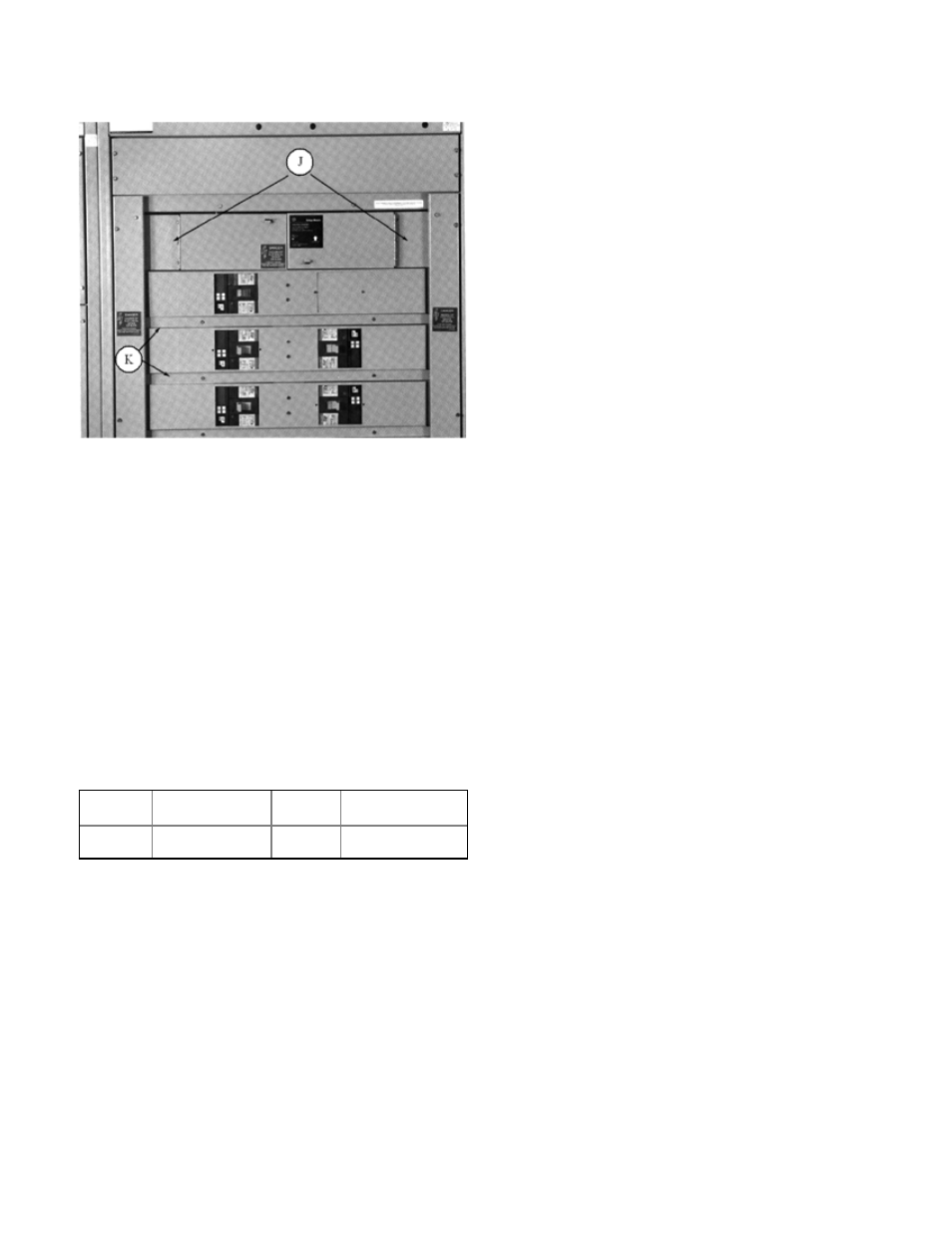

Figure 13. Voltage Module installed in the Spectra ® Series
Switchboard.
Parts and Options
The only user-serviceable components or parts on
the Voltage Module are the fuses in the AC INPUT fuse
blocks. The fuses listed in the Table 4 are recommended
as Replacements for use with the voltage Module.
Failure to use the proper type of fuses can result in the
damage to the Voltage Module. Five fuses per Voltage
Module are required.
Table 4. Recommended Replacement Fuses for use with the
Voltage Module
Ampere
Rating
Catalog
Manufacturer
Number Comments
2 amp Gould-Shawmut ATMR 2
Class CC current
limiting fuse
Additional Information
Refer to these other user’s manuals for more details·:
GEH-5934 MicroVersaTrip ® Plus and MicroVersaTrip ®
PM Trip Units in Spectra ® RMS Molded-
Case Circuit Breakers
GEH-700 Spectra ® G Breaker w/
microEntelliGuard™ Trip Unit
GEH-701 Spectra ® K Breaker w/
microEntelliGuard™ Trip Unit
GEH-702 microEntelliGuard™ Trip Unit Users Manual
DEH-41318 Universal Rating Plug
GEH-6251 Power Supply Plate
GEH-6252 Voltage Conditioner Plate
GEH-6253 Power Supply Assembly
GEH-6254 Voltage Conditioner Assembly
GEH-703 MET Battery Pack Adapter
GEH-704 MET Advanced Distribution Cable
Junction Box
DEH-006 Distribution Cable Junction Box
GEH-705 MET Distribution Cable Extension (20-pin)
GEH-6256 Distribution Cable Extension (12-pin)
GEH-6255 Distribution Cable Harness (12-pin)
GEH-706 MET Distribution Cable Terminal Blocks
(11 point & 22 point)
GEH-6257 Distribution Cable Terminal Block (11 point)
GEH-6491 POWER LEADER™ Modbus Concentrator
GEH-6502 POWER LEADER™ PMCS 5.0 Network
Architecture Guide
GEH-707 MET Sealable Cover kits
DEH-4568 GTU digital test kit (GTUTK20)
GEH-5551 Shunt Trip and UVR instructions
GEH-5593 Aux switch and bell alarm
GEK-64467 TIM-1 Zone Selective Interlock Module
