EntelliGuard™ 800–2000 Ampere Power Circuit Breakers
Chapter 4. Accessory Operation
4.7 Hidden Close Button
The Hidden Close Button is an unmarked replacement for
the normal CLOSE button. Hidden Close Buttons are
provided on all breakers with Network Interlock
accessories. Pressing the Hidden Close Button in the
normal manner will not close the breaker. The catalog
number is WPHIDONKIT1. For installation instructions
see DEH187.
Operation
Charge the breaker closing spring, then insert the end of a
stiff rod, with maximum diameter of 0.1 inch, through the
hole in the center of the Hidden Close Button, as illus-
trated in Figure 10. When the rod engages the mechanism,
light pressure on the rod will close the breaker mechanism.
The Hidden Close Button is double-insulated from the
current-carrying parts of the breaker.

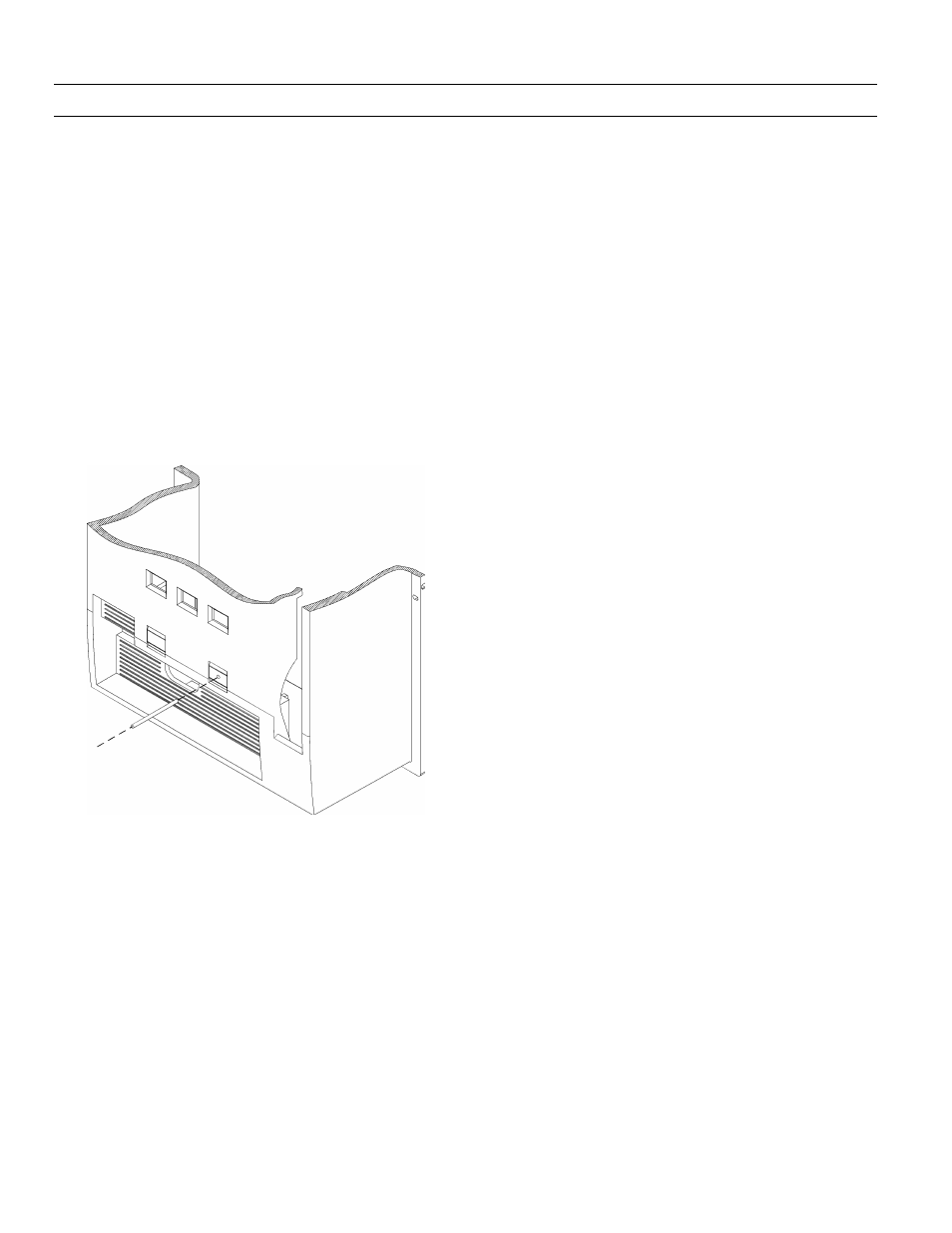

Figure 10. Operation of the Hidden Close Button.
