Data Sheet
October 1, 2009

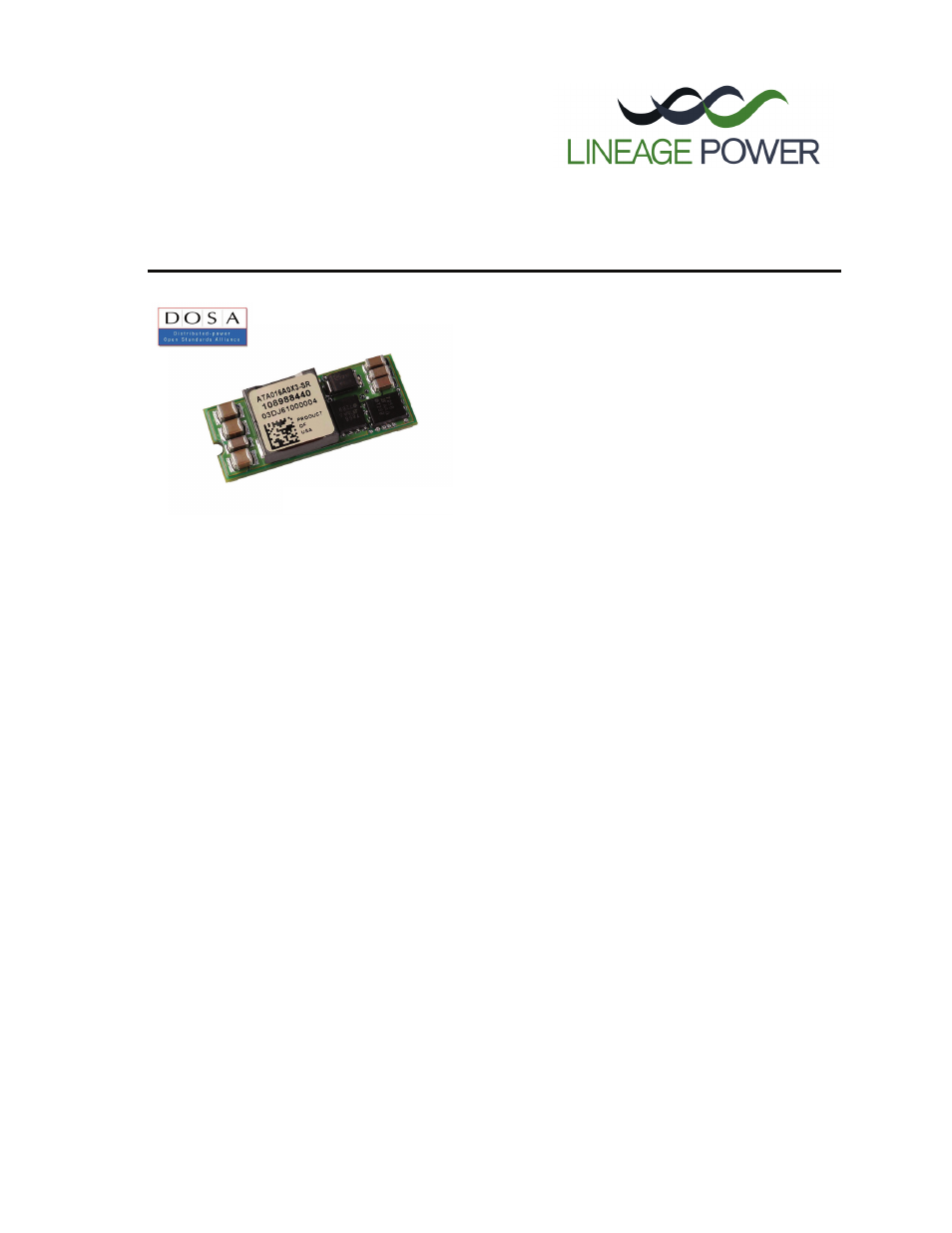

Austin SuperLynx TM II 12V SMT Non-isolated Power Modules:
8.3Vdc – 14Vdc Input; 0.75Vdc to 5.5Vdc Output; 16A Output Current
* UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS03-110 ver. 1.43
PDF name: superlynx_II_12v_smt_ds.pdf
Applications
ƒ Distributed power architectures
ƒ Intermediate bus voltage applications
ƒ Telecommunications equipment
ƒ Servers and storage applications
ƒ Networking equipment
ƒ Enterprise Networks
ƒ Latest generation IC’s (DSP, FPGA, ASIC) and
Microprocessor powered applications
Features
ƒ Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
ƒ Compliant to ROHS EU Directive 2002/95/EC with
lead solder exemption (non-Z versions)
ƒ Flexible output voltage sequencing EZ-
SEQUENCE
TM
ƒ Delivers up to 16A output current
ƒ High efficiency – 92% at 3.3V full load (V
IN
= 12.0V)
ƒ Small size and low profile:
33.0 mm x 13.5 mm x 8.28 mm
(1.30 in x 0.53 in x 0.326 in)
ƒ Low output ripple and noise
ƒ High Reliability:
Calculated MTBF = 9.2M hours at 25 o C Full-load
ƒ Output voltage programmable from 0.75 Vdc to
5.5Vdc via external resistor
ƒ Line Regulation: 0.3% (typical)
ƒ Load Regulation: 0.4% (typical)
ƒ Temperature Regulation: 0.4 % (typical)
ƒ Remote On/Off
ƒ Remote Sense
ƒ Output overcurrent protection (non-latching)
ƒ Wide operating temperature range (-40°C to 85°C)
ƒ UL* 60950-1Recognized, CSA † C22.2 No. 60950-1-
03 Certified, and VDE ‡ 0805:2001-12 (EN60950-1)
Licensed
ƒ ISO** 9001 and ISO 14001 certified manufacturing
facilities
Description
Austin SuperLynx TM II 12V SMT power modules are non-isolated DC-DC converters that can deliver up to 16A of
output current with full load efficiency of 92% at 3.3V output. These modules provide a precisely regulated output
voltage programmable via an external resistor from 0.75Vdc to 5.5Vdc over a wide range of input voltage (V
IN
= 8.3
– 14Vdc). Austin SuperLynx TM II has a sequencing feature, EZ-SEQUENCE TM that enable designers to implement
various types of output voltage sequencing when powering multiple modules on board.
RoHS Compliant
EZ-SEQUENCE TM
