GE Data Sheet
EHHD020A0F Hammerhead™ Series; DC-DC Converter Power Modules
18-75Vdc Input; 3.3Vdc, 20.0A, 66W Output
Contact Us
For more information, call us at
USA/Canada:
+1 888 546 3243 , or +1 972 244 9288
Asia-Pacific:
+86.021.54279977*808
Europe, Middle-East and Africa:
+49.89.878067-280
India:
+91.80.28411633
www.ge.com/powerelectronics
April 4, 2013 ©2012 General Electric Company. All rights reserved. Version 1.08

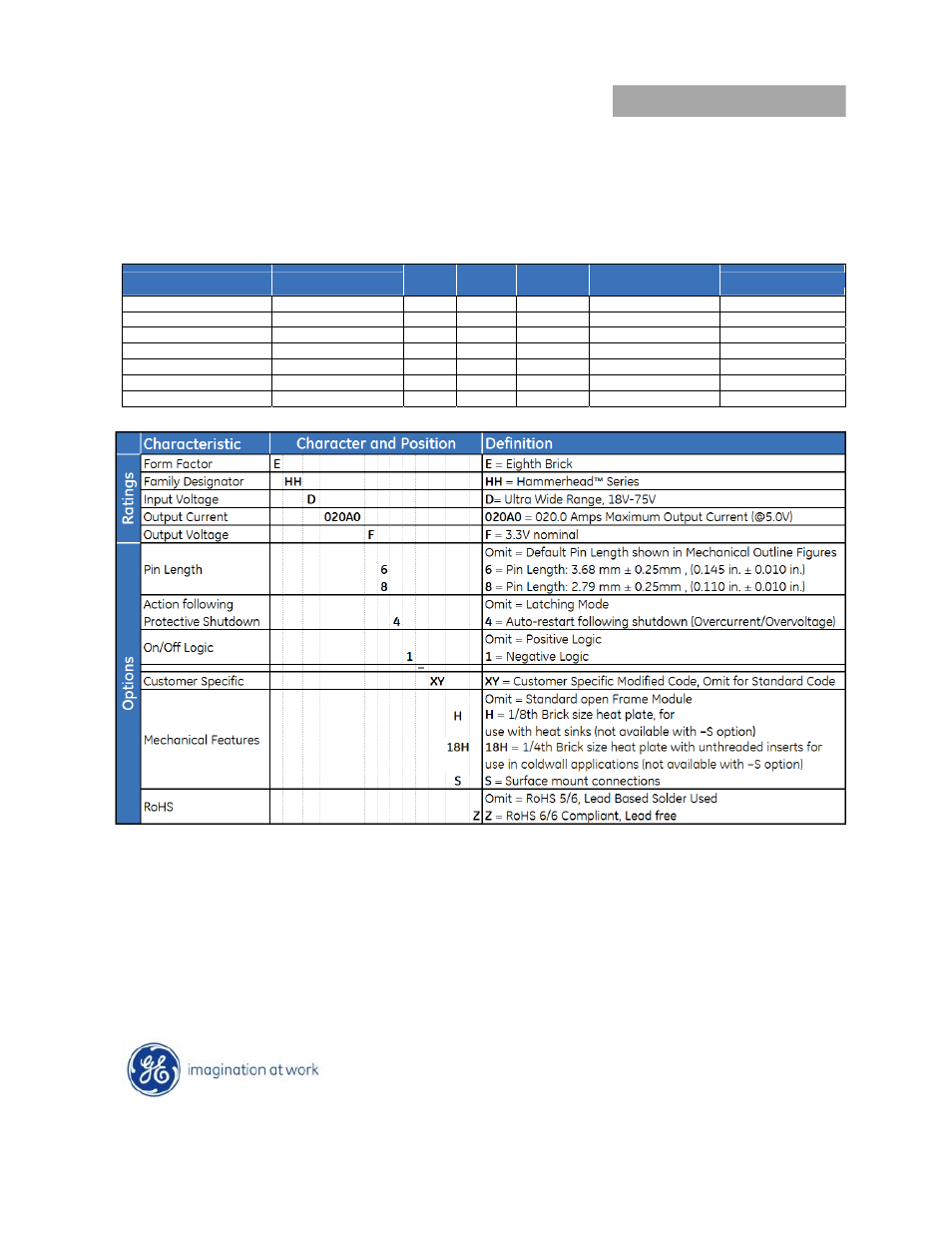

Ordering Information
Please contact your GE Sales Representative for pricing, availability and optional features.
Table 1. Device Codes
Product Codes Input Voltage
Output
Voltage
Output
Current
On/Off
Logic
Connector
Type
Comcodes
EHHD020A0F41Z 24/48V (18-75Vdc) 3.3V 20A Negative Through hole CC109161477
EHHD020A0F64Z 24/48V (18-75Vdc) 3.3V 20A Positive Through hole CC109171427
EHHD020A0F641Z 24/48V (18-75Vdc) 3.3V 20A Negative Through hole 150022799
EHHD020A0F41-HZ 24/48V (18-75Vdc) 3.3V 20A Negative Through hole CC109161964
EHHD020A0F641-HZ 24/48V (18-75Vdc) 3.3V 20A Negative Through hole 150022798
EHHD020A0F64-18HZ 24/48V (18-75Vdc) 3.3V 20A Positive Through hole CC109171435
EHHD020A0F41-SZ 24/48V (18-75Vdc) 3.3V 20A Negative Surface mount CC109161972
Table 2. Device Coding Scheme and Options
