Varistor Products
MLA Automotive Varistor Series
Surface Mount Multilayer Varistors (MLVs) > MLA Automotive Series
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/ML.html or MLA.html for current information.
MLA Automotive Series

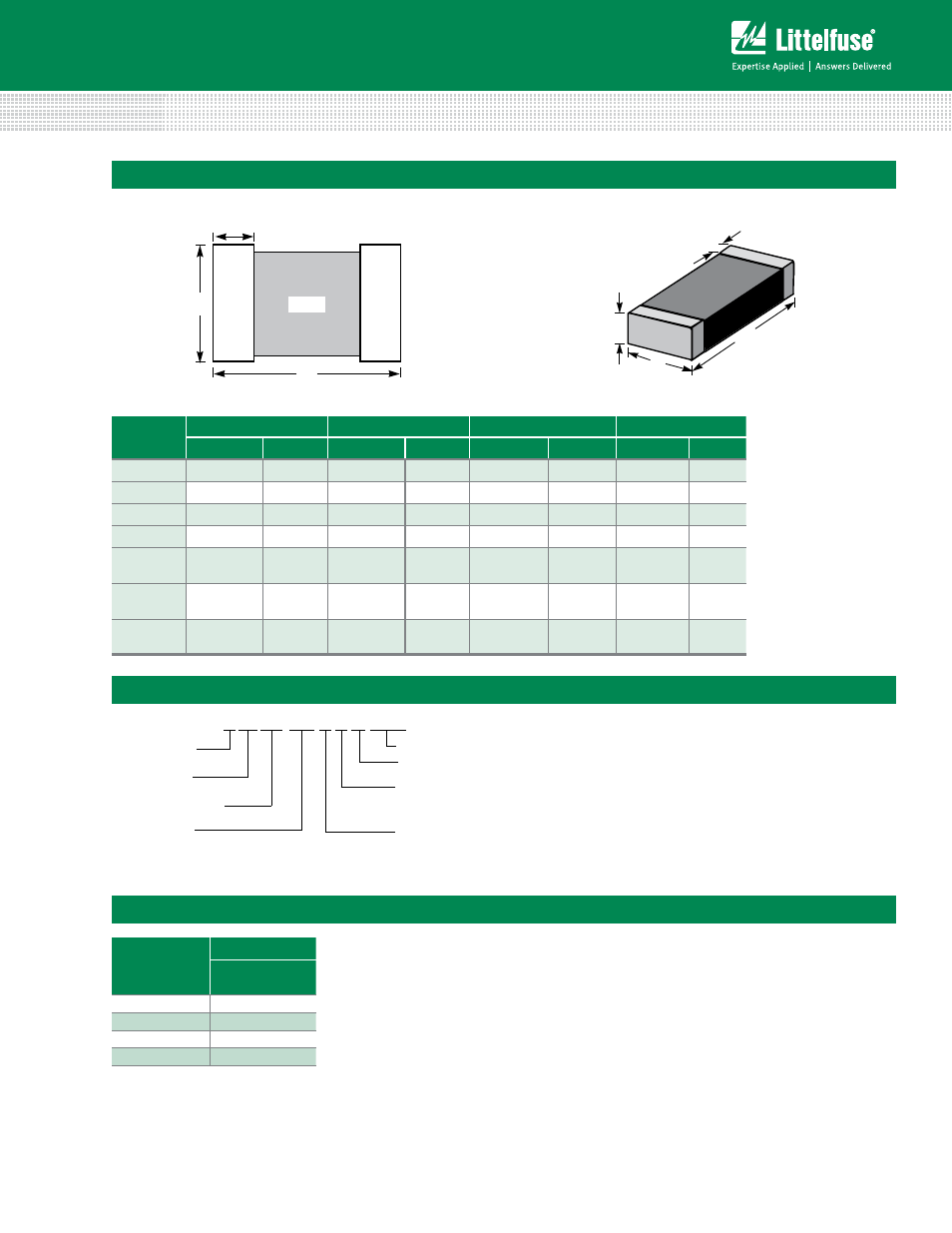

Product Dimensions (mm)
NOTE : Avoid metal runs in this area, parts not recommended for use in applications using
Silver (Ag) epoxy paste.
PAD LAyOUT DIMENSIONS
C
B
A
NOTE: Avoid metal runs in this area.
Parts not recommended for use in
applications using silver epoxy paste.
NOTE
CHIP LAyOUT DIMENSIONS
E
L
W
D
Dimension
1210 Size 1206 Size 0805 Size 0603 Size
IN MM IN MM IN MM IN MM
A 0.160 4.06 0.160 4.06 0.120 3.05 0.100 2.54
B 0.100 2.54 0.065 1.65 0.050 1.27 0.030 0.76
C 0.040 1.02 0.040 1.02 0.040 1.02 0.035 0.89
D (max.) 0.113 2.87 0.071 1.80 0.043 1.10 0.040 1.00
E
0.020
-/+0.010
0.50
-/+0.25
0.020
-/+0.010
0.50
-/+0.25
0.020 -/+
0.010
0.50 -/+
0.25
0.015
-/+0.008
0.4
-/+0.20
L
0.125
-/+0.012
3.20
-/+0.30
0.125
-/+0.012
3.20
-/+0.30
0.079
-/+0.008
2.01
-/+0.20
0.063
-/+0.006
1.6
-/+0.15
W
0.100
-/+0.012
2.54
-/+0.30
0.060
-/+0.011
1.60
-/+0.28
0.049
-/+0.008
1.25
-/+0.20
0.032
-/+0.060
0.8
-/+0.15
Part Numbering System
V 18 1206
PACKING
AUTOMOTIVE SERIES
OPTIONS (see Packaging table for quantities)
DEVICE SIZE:
DEVICE FAMILY
Littelfuse TVSS Device
X AUTO
MAXIMUM DC
WORKING VOLTAGE
MLA X X
CAPACITANCE OPTION
No Letter: Standard
L: Low Capacitance Version
END TERMINATION INDICATOR
MULTILAYER SERIES
DESIGNATOR
N: Nickel Barrier
(Matte Tin outer surface, plated on Nickel underlayer
plated on silver base metal)
H: 7in (178mm) Diameter Reel, Plastic Carrier Tape
0603 = .063 inch x .031 inch (1.6 mm x 0.8 mm)
0805 = .08 inch x .08 inch (2.0 mm x 1.25 mm)
1206 = .126 inch x .063 inch (3.2 mm x 1.6 mm)
1210 = .126 inch x .1 inch (3.2 mm x 2.5 mm)
Packaging*
Device Size
Quantity
7” Inch Reel
("H" Option)
1210 2,000
1206 2,500
0805 2,500
0603 2,500
*(Packaging) It is recommended that parts be kept in the sealed bag provided and that parts be used as soon as possible when removed from bags.
