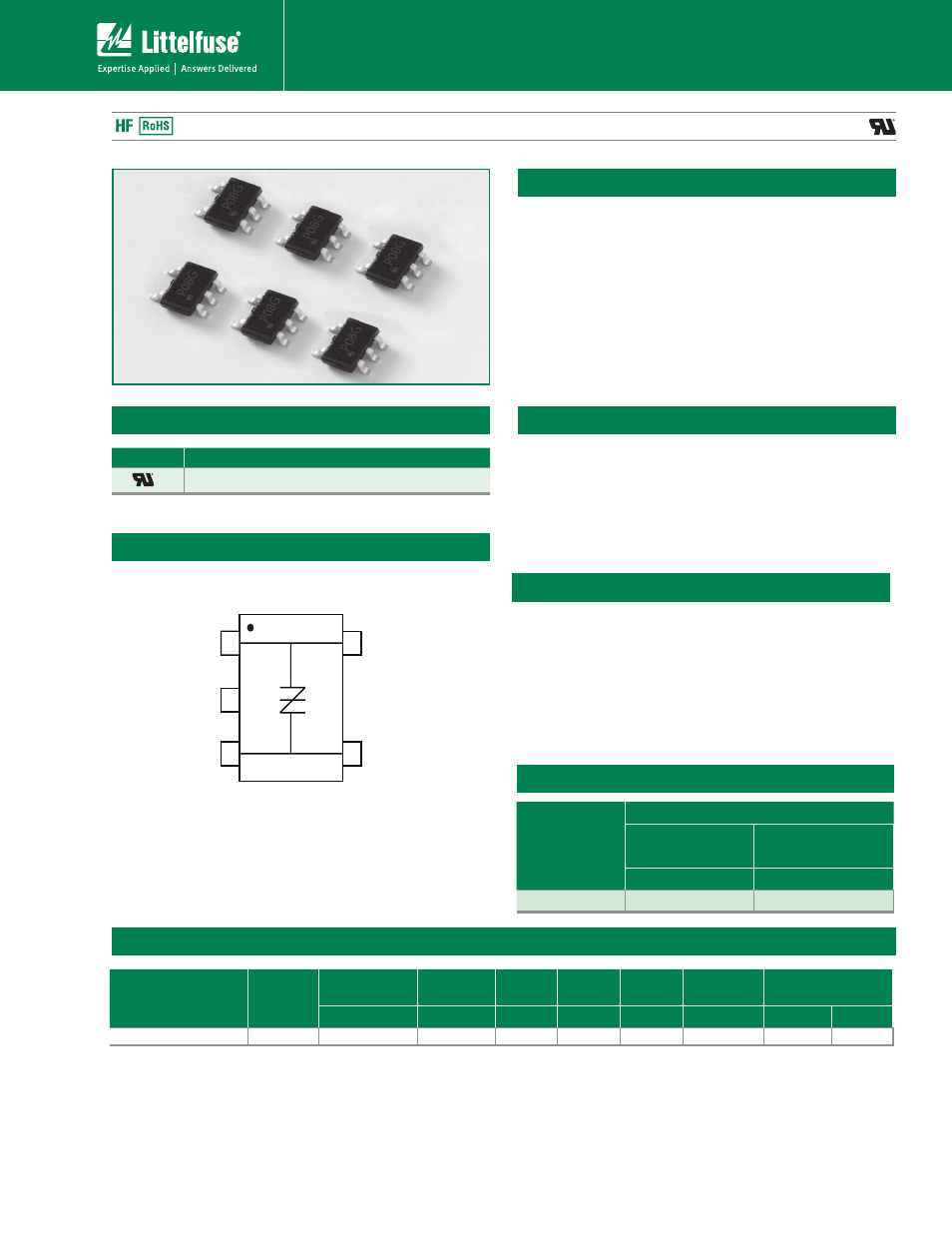

SIDACtor ® Protection Thyristors
355
Revised: March 28, 2012
© 2012 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
Teccor ® brand SIDACtor ® DSL Protection Devices
Description
Features & Benefits
• Lower overshoot protection
than clamping
• SOT23-5 surface mount
package
• Low insertion loss
• Low capacitance
• Bidirectional transient
voltage protection
• Robust surge rating
• RoHS compliant
Protection solution to meet
Electrical Characteristics
Part Number Marking
V
DRM
@I
DRM
=5µA V
S
@250V/µs I
H
I
S
I
T
V
T
@I
T
=2.2
Amps
Co@f=1MHz,2V
V min V max mA typ mA max A max V max pF typ pF Max
P0080T023G5RP P08G 8 15 30 500 2.2 4 9.0 10
Notes:
- All measurement are made at an ambient temperature of 25°C Ipp applies to -40°C
- Ipp is repetitive surge rating and is guaranteed for the life of the product.
- SIDACtor devices are bidirectional. All electrical parameters and surge rating apply to
- Specifications are subject to change without notice.
• YD/T 950
• YD/T 993
• YD/T 1082
• GR 1089 Inter-building
• GR 1089 Intra-building
• IEC 61000-4-2 • IEC 61000-4-5
• ITU K.20/21 Basic Level
• ITU K.20/21 Enhanced
Level
• TIA-968-A
• TIA-968-B
Agency Approvals
Agency Agency File Number
E133083
Schematic Symbol
P0080T023G5
This new P0080T023G5 is targeted for the tertiary or line
driver side protection position for VDSL2+ and ADSL2+
applications. This new low capacitance over voltage
protection does not require a bias voltage and is sufficiently
robust for the chip-side position behind the coupling
transformer. This SOT23-5 solution, with its flow-through
design, minimizes PCB trace layout routing makes it
compatible with a variety of line drivers. Its low capacitance
makes it compatible with ADSL2 and VDSL2, and the
30MHz bandplan of VDSL2+.
(Tip)
NC
(Ring) (Ring)
(Tip)
Surge Ratings
Series
I
PP
10x1000µs 8x20µs
Amps min Amps min
18 50
throught +85°C temperature range. forward and reverse polarities.
