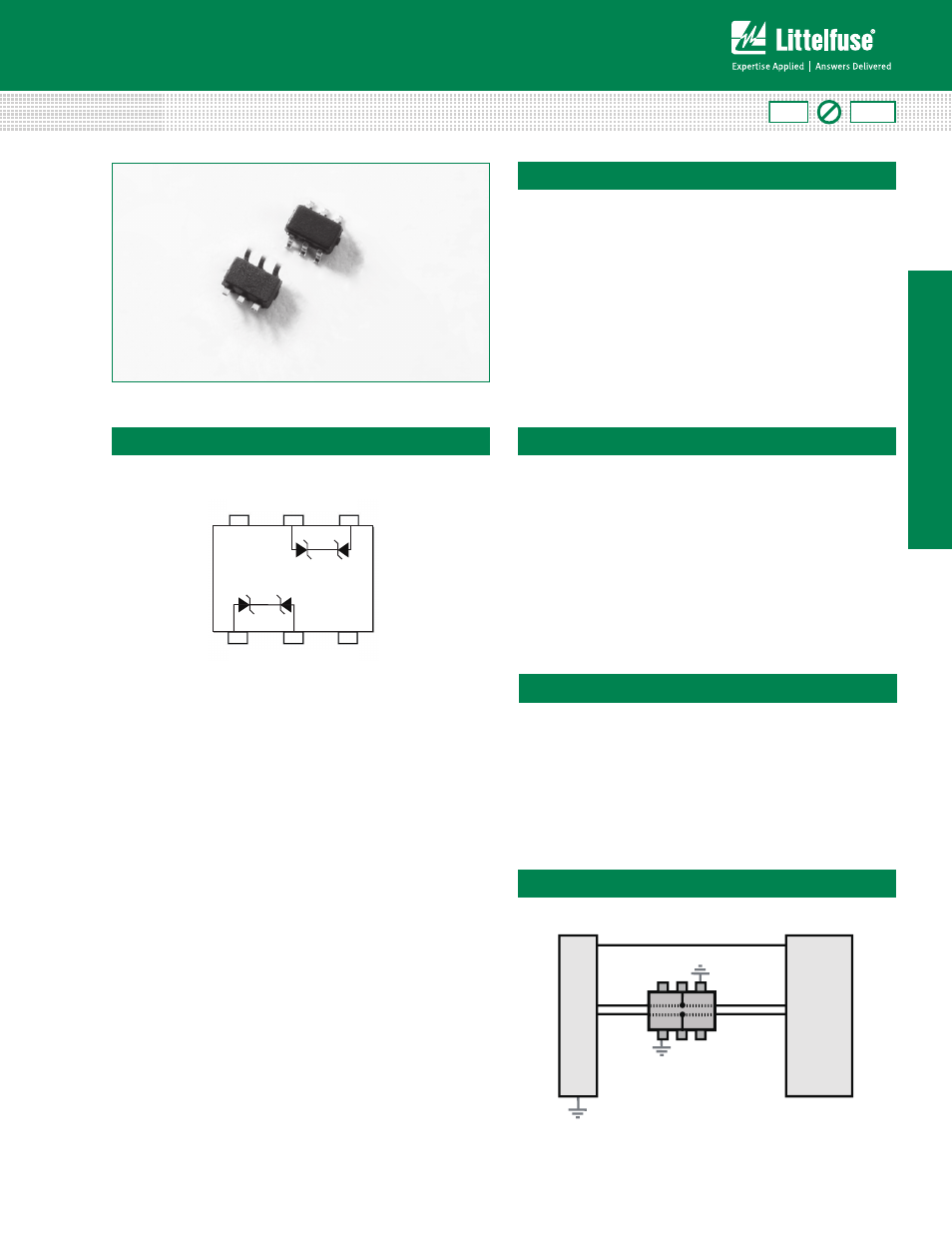

background image

1

©2013 Littelfuse, Inc.

Specifications are subject to change without notice.

Please refer to

www.littelfuse.com

for current information.

TVS Diode Arrays

(SPA

®

Diodes)

Revision: July 17, 2013

SP3006 Series

SP30

06 S

eries

Low Capacitance ESD Protection - SP3006 Series

Description

Features

Applications

The SP3006 Series includes ultra low capacitance back to-
back zener diodes to protect high-speed ports of electronic
equipment that may experience destructive electrostatic
discharges (ESD). The robust diode can safely absorb
repetitive ESD strikes at the maximum level specified in
the IEC 61000-4-2 international standard (Level 4, ±8kV
contact discharge) without performance degradation. Its
very low loading capacitance makes it ideal for protecting
high-speed data lines such as USB2.0, USB3.0, HDMI, and
IEEE 1394.

• ESD protection of ±8kV

contact discharge,
±15kV air discharge,
(IEC61000-4-2)

• EFT protection,

IEC61000-4-4, 40A
(5/50ns)

• Lightning Protection,

IEC61000-4-5, 2.0A
(8/20µs)

• Low capacitance of 0.5pF

(@ V

R

=0V)

• Low leakage current of

0.5μA (MAX) at 5V

• Miniature SOT563

package (1.6x1.6x0.5mm)
saves board space

• Game Consoles
• LCD/ PDP TVs
• DVD Players
• Desktops
• MP3/ PMP

• Digital Cameras
• Set Top Boxes
• Smart Phones
• Notebooks
• Computer Peripherals

Pinout and Functional Block Diagram

6

5

4

1

2

3

Life Support Note:
Not Intended for Use in Life Support or Life Saving Applications
The products shown herein are not designed for use in life sustaining or life saving
applications unless otherwise expressly indicated.

RoHS

Pb

GREEN

Application Example

USB Controller

USB Port

IC

NC

NC

GND

SP3006

D+

D-

SP3006 Series 0.5pF, 8kV Diode Array
