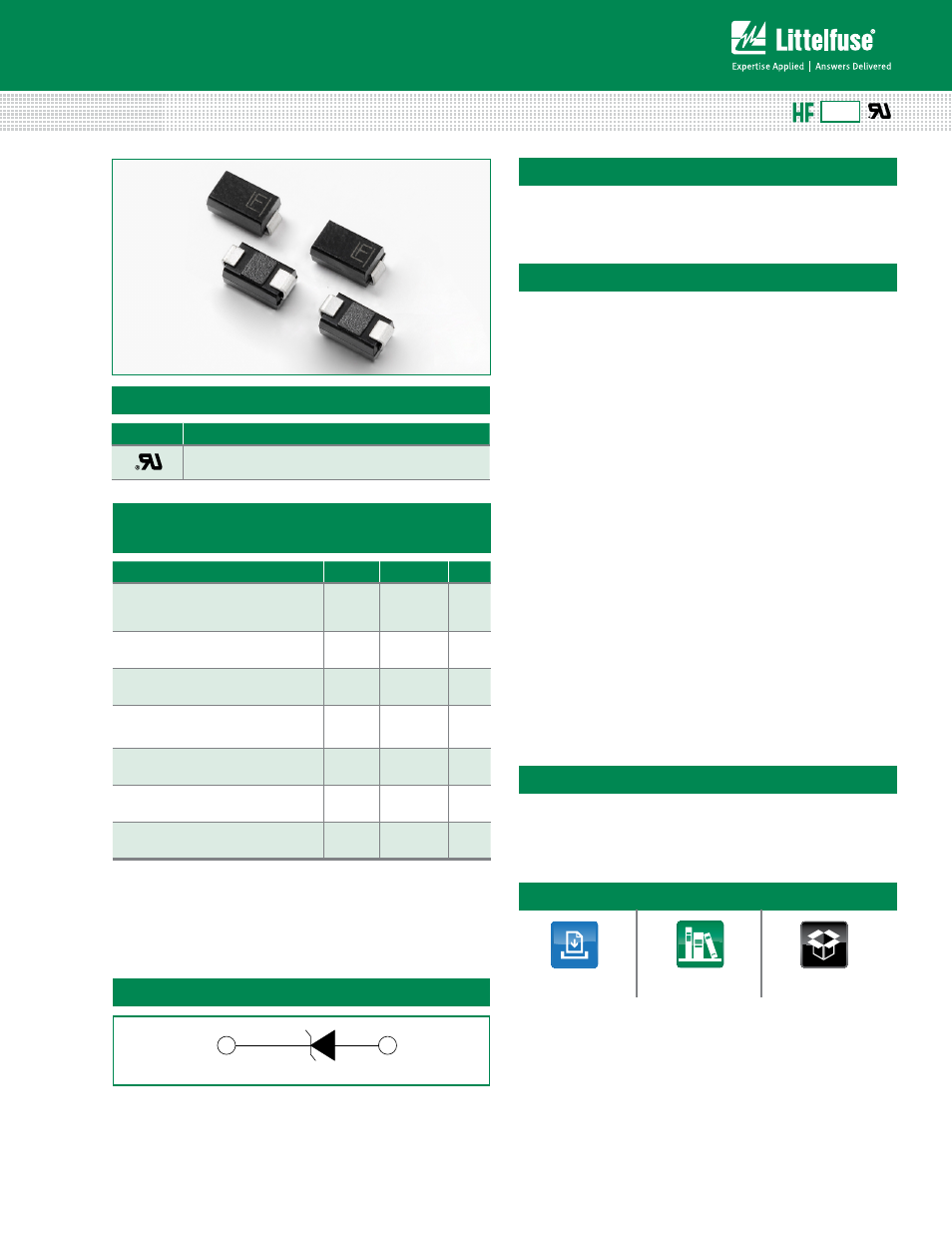

Littelfuse SMA6J Series User Manual
Sma6j series, Transient voltage suppression diodes, Surface mount – 600w > sma6j series
Transient Voltage Suppression Diodes
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/20/14
Surface Mount – 600W > SMA6J series
Description
Features
Maximum Ratings and Thermal Characteristics
(T
A
=25°C unless otherwise noted)
Parameter
Symbol
Value
Unit
Peak Pulse Power Dissipation at
T
A
=25ºC by 10/1000µs Waveform
(Fig.2)(Note 1), (Note 2)
P
PPM
600
W
Power Dissipation on Infinite Heat
Sink at T
A
=50°C
P
M(AV)
3.3
W
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
I
FSM
60
A
Maximum Instantaneous Forward
Voltage at 25A for Unidirectional
Only (Note 4)
V
F
3.5V/6.5
V
Operating Junction and Storage
Temperature Range
T
J
, T
STG
-55 to 150
°C
Typical Thermal Resistance Junction
to Lead
R
uJL
30
°C/W
Typical Thermal Resistance Junction
to Ambient
R
uJA
120
°C/W
Notes:
1. Non-repetitive current pulse, per Fig.4 and derated above T
A
=25ºC per Fig. 3.
2. Mounted on 5.0x5.0mm copper pad to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
device only.
4. V
F
< 3.5V for V
BR
_
<
200V and V
F
< 6.5V for V
BR
_
>
201V.
The SMA6J series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O Interfaces,
V
CC
bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
• For surface mounted
applications to optimize
board space
• Low profile package
• Typical failure mode is
short from over-specified
voltage or current
• Whisker test is conducted
based on JEDEC
JESD201A per its table 4a
and 4c
• IEC-61000-4-2 ESD
15kV(Air), 8kV (Contact)
• ESD protection of data
lines in accordance with
IEC 61000-4-2 (IEC801-2)
• EFT protection of data
lines in accordance with
IEC 61000-4-4 (IEC801-4)
• Built-in strain relief
• Glass passivated junction
• Low inductance
• Excellent clamping
capability
• 600W peak pulsepower
capability at 10/1000µs
waveform, repetition rate
(duty cycle): 0.01%
• Fast response time:
typically less than 1.0ps
from 0 Volts to V
BR
min
• Typical I
R
less than 1µA
above 12V
• High temperature
soldering: 260°C/40
seconds at terminals
•
V
BR
@T
J
= V
BR
@25°C × (1+
α
T
x (T
J
- 25))
(αT: Temperature Coefficient)
• Plastic package has
underwriters laboratory
flammability 94V-O
• Meet MSL level1, per
J-STD-020, LF maximum
peak of 260°C
• Matte tin lead–free plated
• Halogen free and RoHS
compliant
SMA6J Series
Uni-directional
Functional Diagram
Bi-directional
Uni-directional
Cathode
Anode
RoHS
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
Additional Information
