Littelfuse MLA Automotive Varistor Series - Manual

© 2014 Littelfuse, Inc. 47
Revised: January 16, 2014
Varistor Products
MLA Automotive Varistor Series
Surface Mount Multilayer Varistors (MLVs) > MLA Automotive Series
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/ML.html or MLA.html for current information.
MLA Automotive Series

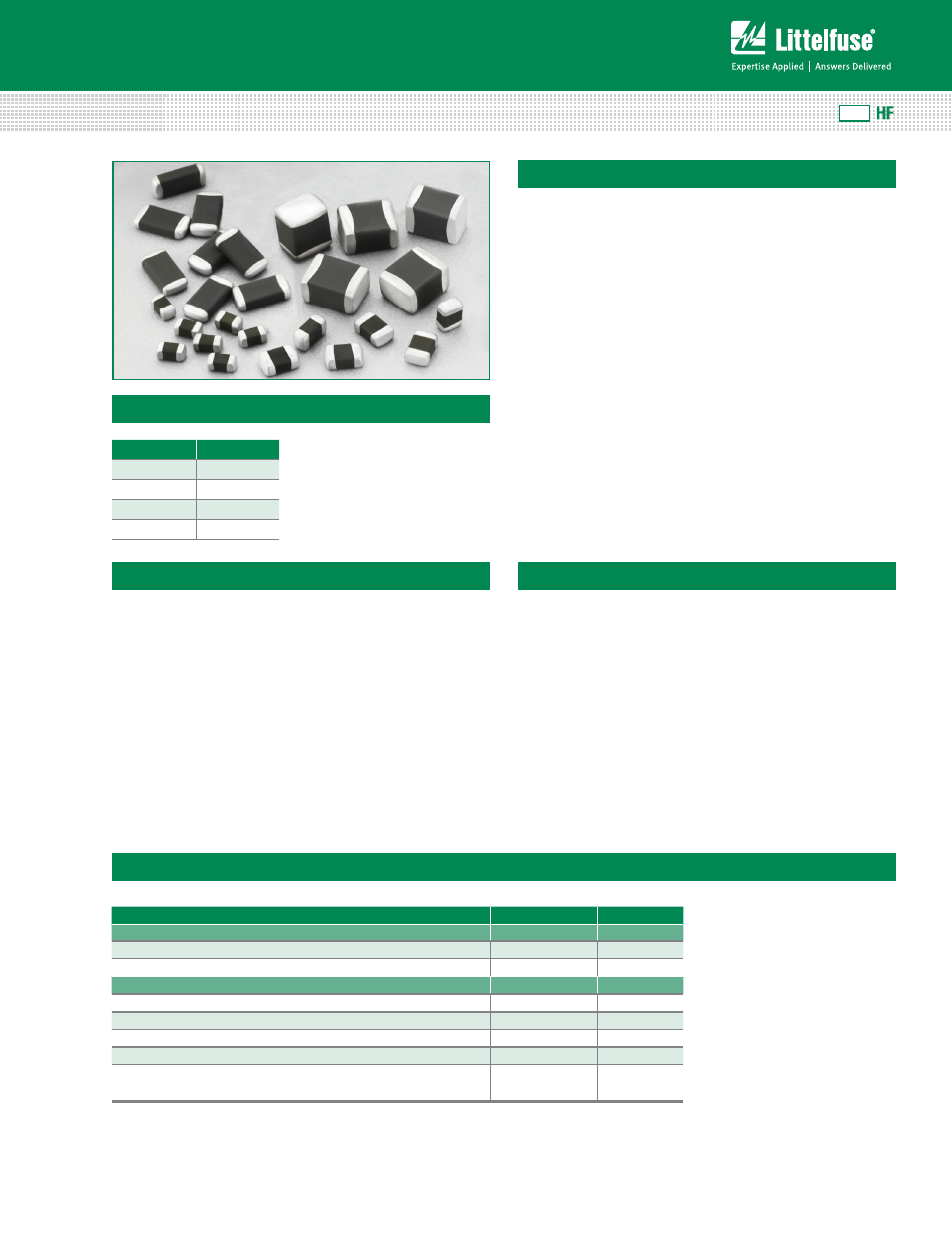

MLA Automotive Varistor Series
Description
The MLA Automotive Series of transient voltage surge
suppression devices is based on the Littelfuse Multilayer
fabrication technology. These components are designed
to suppress a variety of transient events, including those
specified in IEC 61000-4-2 or other standards used for
Electromagnetic Compliance (EMC). The MLA Automotive
Series is typically applied to protect integrated circuits and
other components at the circuit board level.
The wide operating voltage and energy range make the
MLA Automotive Series suitable for numerous applications
on power supply, control and signal lines.
The MLA Automotive Series is manufactured from
semiconducting ceramics, and is supplied in a leadless,
surface mount package. The MLA Automtove Series
is compatible with modern reflow and wave soldering
procedures.
It can operate over a wider temperature range than Zener
diodes, and has a much smaller footprint than plastic-
housed components.
Features
• AEC - Q200 compliant
• RoHS compliant
• Leadless 0603, 0805,
1206 and 1210 chip sizes
• Multilayer ceramic
construction technology
• -55°C to +125°C
operating temp. range
• Operating voltage range
V
M(DC)
= 3.5V to 48V
• Rated for surge
current (8 x 20µs)
• Rated for energy
(10 x 1000µs)
• Inherent bi-directional
clamping
• No plastic or epoxy
packaging assures
better than UL94V-0
flammability rating
• Standard low
capacitance types
available
Applications
• Suppression of
inductive switching
or other transient
events such as EFT
and surge voltage at
the circuit board level
• ESD protection for IEC
61000-4-2, MIL-STD-
883c method 3015.7,
and other industry
specifications
• Provides on-board
transient voltage
protection for ICS
and transistors
• Used to help achieve
electromagnetic
compliance of
end products
• Replaces larger surface
mount TVS Zeners in
many applications
Size Table
Metric EIA
1608 0603
2012 0805
3216 1206
3225 1210
Absolute Maximum Ratings
For ratings of individual members of a series, see device ratings and specifications table .
Continuous MLA Auto Series Units
Steady State Applied Voltage:
DC Voltage Range (V
M(DC)
) 3.5 to 48 V
AC Voltage Range (V
M(AC)RMS
) 2.5 to 40 V
Transient:
Non-Repetitive Surge Current, 8/20µs Waveform, (I
TM
) up to 500 A
Non-Repetitive Surge Energy, 10/1000µs Waveform, (W
TM
) 0.1 to 2.5 J
Operating Ambient Temperature Range (T
A
) -55 to +125 ºC
Storage Temperature Range (T
STG
) -55 to +150 ºC
Temperature Coefficient (αV) of Clamping Voltage (V
C
) at
Specified Test Current
<0.01 %/º C
