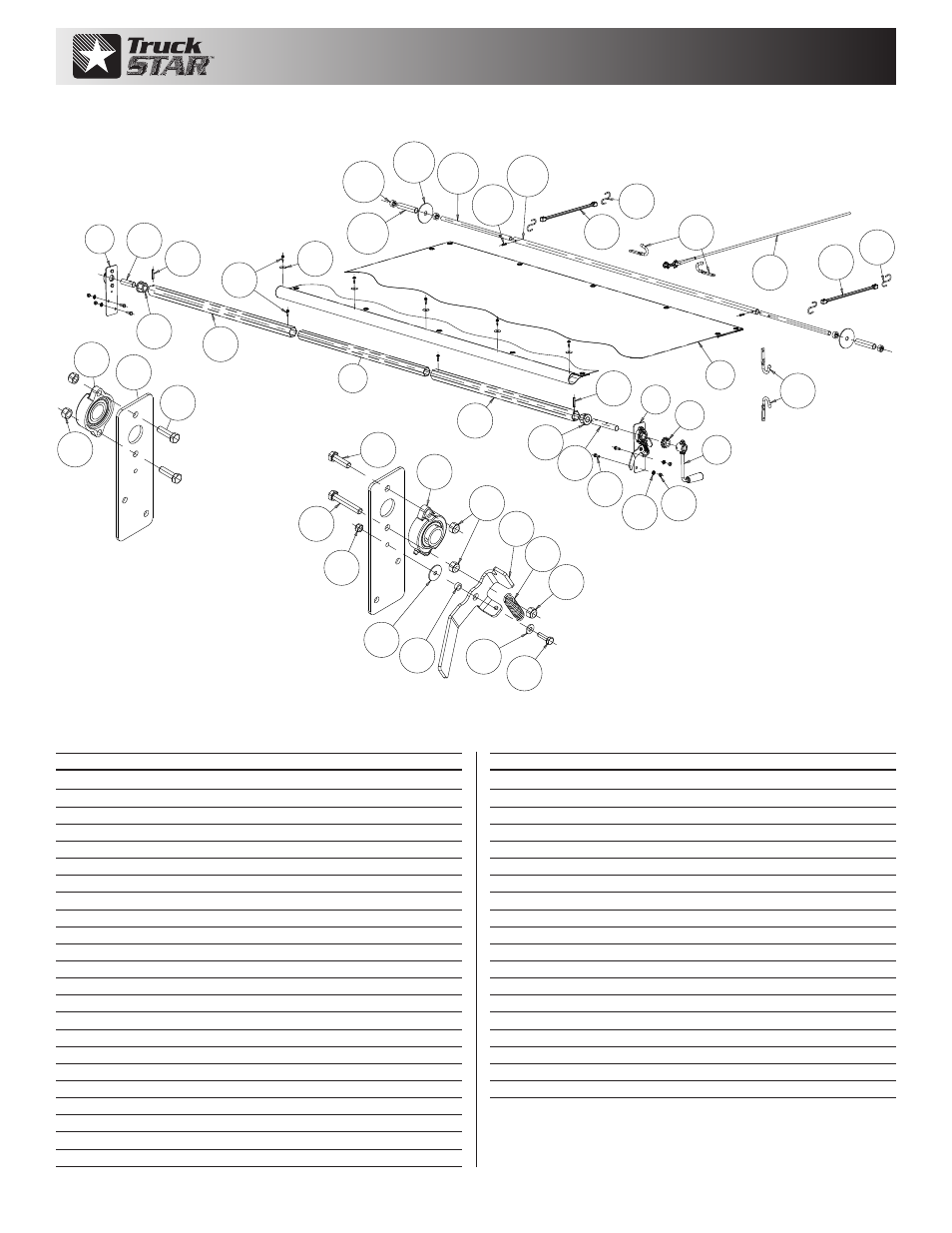

Dump Body Tarp Roller Parts List
1 3007954 1 Tube, Inner Hex
2 3008238 1 Roll Tube Assy., Driver’s Side
2A 3007955 2 Tube, Outer Hex
2B 3008010 2 Adaptor, Shaft
2C 3008182 1 Shaft, Crank End
2D - 2 Pin, Spring Roll, 5/16" x 1-7/8"
3 3008239 1 Roll Tube Assy., Passenger’s Side
3C 3008181 1 Shaft, Idler End
4 3008237 1 Bearing Bracket Assy.
4A 3009425 2 Bracket, Tarp Roll Mount
4B 1411000 2 Bearing, 1" Self-Aligning
4C - 3 Cap Screw, 3/8-16 x 1¼", Zinc
4D - 5 Hex Nut, Locking, 3/8-16, Zinc
5 3009501 1 Bearing Bracket Assy., Detent
5A - 1 Cap Screw, 3/8-16 x 2¼", Full Thd., Zinc
5B 3009561 1 Washer, Nylon
5C 3009433 1 Detent Lever
5D 4100S 1 Spacer Busher
5E - 1 Flat Washer, 1/4", Zinc
5F - 1 Cap Screw, 1/4" x 7/8", Zinc
5G - 1 Nut, Lock, 1/4" Zinc
5H 3009434 1 Extension Spring
6 1411915 1 Sprocket, 12 Tooth
ITEM PART NO. QTY. DESCRIPTION
7 3008176A 1 Crank Handle Assy.
8 - 1 Replacement tarps*
9 3008223 1 Hardware Bag, Tarp Roller Kit
9A - 7 Screw, 1/4" x 1" Self-Drilling & Tapping Zn
9B - 5 Fender Washer, 1/4" ID x 1¼" OD, Zinc
9C - 4 Cap Screw, 3/8-16 x 1", Zinc
9D - 4 Lock Washer, 3/8", Zinc
9E - 4 Hex Nut, 3/8-16, Zinc
10 3008225 1 Pull Rope Assy., 20'
11 TS15 2 Tarp Strap, 15" Rubber
12 9225 4 S-Hook, Tarp Strap
13 B2448B 4 Hook, Rope Storage
14 DTB102 - Rear Bar Kit (Optional Accessory)
14A 3008306 1 Center Tube, Rear Bar Kit
14B 3008307 2 Outer Bar, Rear Bar Kit
14C 3008308 2 PVC Roller Tube, Rear Bar Kit
14D 3008309 2 Guide Washer, Rear Bar Kit
14E 3013330 4 Lock Collar, 20 mm
14F - 2 Pin, Spring Roll, 5/16" x 1"
* Contact your local distributor or buyersproducts.com for replacement
tarp part numbers
