3000688 Rev. A
Warranty Information
Buyers Products warrants all truck/trailer hardware
manufactured or distributed by it, to be free from
defects in material and workmanship for a period of
one year from date of shipment. Parts must be pro-
perly installed and used under normal conditions.
Any product which has been altered, including modi-
fication, misuse, accident or lack of maintenance will
not be considered under warranty. Normal wear is
excluded. The sole responsibility of Buyers Products
under this warranty is limited to repairing or replac-
ing any part or parts which are returned, prepaid, and
are found to be defective by Buyers Products.
Authorization from Buyers Products must be obtained
before returning any part. No charges for transporta-
tion or labor performed on Buyers’ products will be
allowed under this warranty.

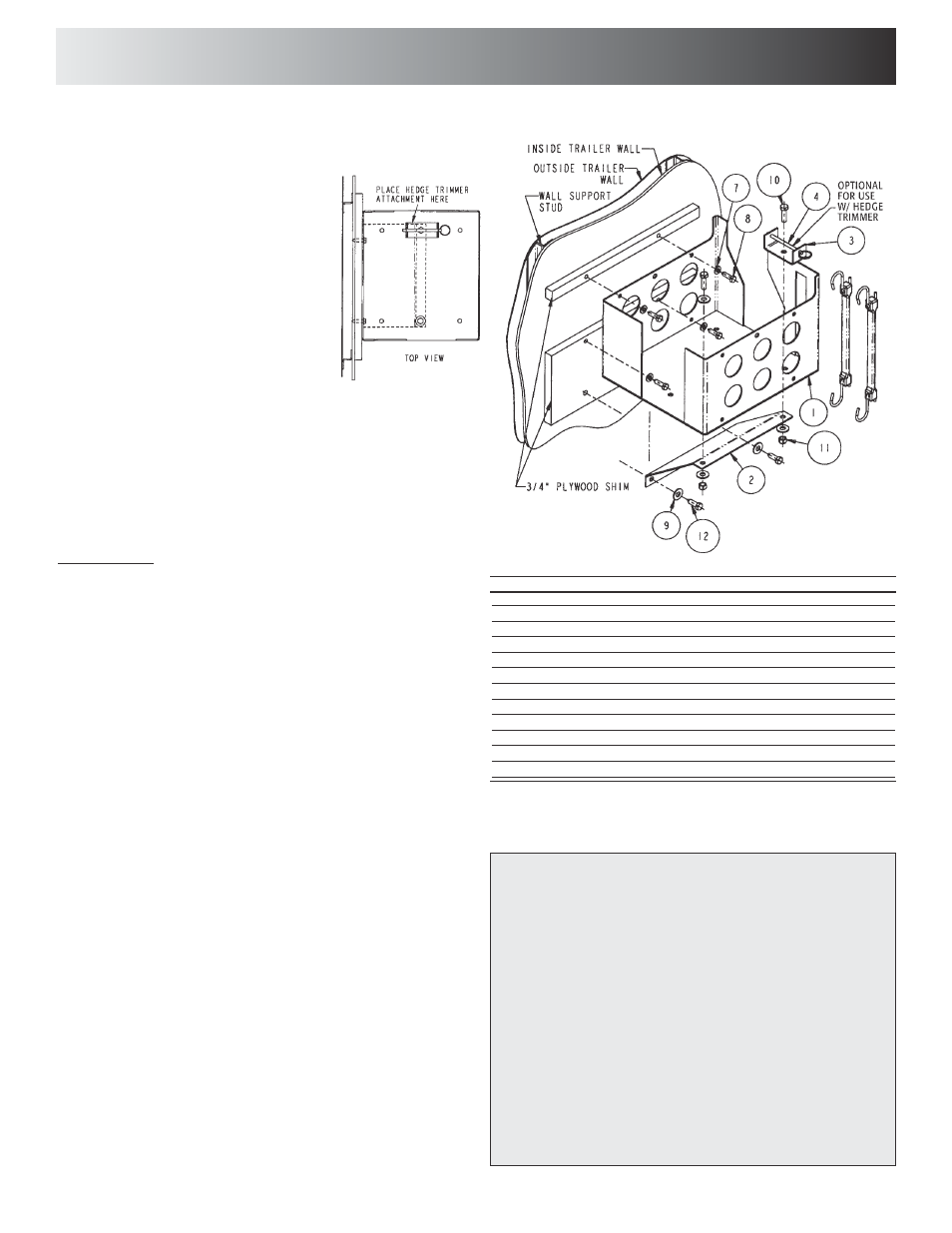

Enclosed Trailer Installation Instructions
Tools and Materials Required:
•Two 9/16” wrenches
and/or sockets
•1/2” wrench or socket
•Electric drill
•7/32” & 1/4” drill bits
•3/4” plywood shim strips
•Shim screws
1. Assemble the gusset bracket and hedge trim-
mer bracket (if used) to the multi-rack weldment
with two 3/8-16 x 1-1/4 screws, flat washers
and nuts supplied. If the hedge trimmer bracket
is used, omit the washer under the head of the
screw that holds it.
WARNING! Check for locations of electrical wir-
ing etc., before drilling any holes. Any damage
to trailer during installation is installer’s sole
responsibility
2. In order to mount this rack to an enclosed
trailer, you must first add 3/4” plywood shim
strips to the walls. These shim strips must be
attached to at least two wall support studs with
suitable fasteners. If you don’t know what kind
or length of fastener to use contact your trailer
dealer or manufacturer for their recommendation.
The shim strips should not completely cover the
six 2” holes. These holes need to be unobstructed
for tarp strap attachment.
3. Place the multi-rack with gusset against the
shims, hold level, and mark the position of the
four 5/16” corner holes in rack and the two 3/8”
gusset holes.
4. Drill four 7/32” holes for the 5/16” lag screws,
and two 1/4” holes for the 3/8” lag screws. Be
extremely careful not to drill through the out-
side trailer wall.
5. Fasten the rack to the trailer wall with the
hardware supplied.
1 3000058 1 Multi-Rack Weldment
2 3004501 1 Bracket, Gusset, LT15, LT30
3 3000057 1 Bracket, Hedge Trimmer, Multi-Rack
4 3000538 1 Pin, Detent
5 TS9 2 Strap, Rubber Tarp 9”
6 9225 4 S-Hook, 2-1/2” Zn, Tarp Strap
7 - 4 Washer, 5/16” SAE Zn
8 - 4 Screw, Hex Head Lag, 5/16 x 1-1/4 Zn
9 - 5 Washer, Flat 3/8” USS Zn
10 - 2 Screw, HHC 3/8-16 x 1-1/4 Gr 5 Zn
11 - 2 Nut, Nylock 3/8-16 x 7/16 Zn
12 - 2 Screw, Hex Head Lag, 3/8 x 1-1/4 Zn
ITEM PART NO. QTY. DESCRIPTION
Bill of Materials
