Buyers 1801118 - Manual

Installation Instructions
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone (440) 974-8888 • Fax (440) 974-0165
Toll-Free Fax 800-841-8003 • buyersproducts.com
Warranty
Buyers Products Co. warrants all truck/trailer hardware manufac-
tured or distributed by it, to be free from defects in material and
workmanship for a period of one year from date of shipment. Parts
must be properly installed and used under normal conditions. Any
product which has been altered, including modification, misuse,
accident or lack of maintenance will not be considered under
warranty. Normal wear is excluded. The sole responsibility of
Buyers Products Co. under this warranty is limited to repairing or
replacing any part or parts which are returned, prepaid, and are
found to be defective by Buyers Products Co. Authorization from
Buyers Products Co. must be obtained before returning any part.
No charges for transportation or labor performed on Buyers’ prod-
ucts will be allowed under this warranty.
1801118INST Rev. C.
Bill of Materials
1 3017727 1 Hitch, 2.0 in. RCVR GM, 2500 & 3500
2 3017919 6 Spacer Rectangle
3 3002476 6 Screw, Hex HD Cap 9/16-18 x 2 Gr. 8 ZN
4 – 6 Nut, Hex 9/16-18 Center Lock ZN
5 HP6256WC1 1 Pin, 5/8 Hitch
6 HP12 1 Pin, Hair Cotter 5/32" ZM 3.25 OAL
7 3002220 6 Washer, Flat 9/16 USS ZN
8 – 1 Frame, Rear 2011
item part no. qty. description
1801118 2" Hitch
applications
2011+Chevy/GMC 2500/3500 Pickup Truck - Excluding
Short Bed
Capacity
16,000 lbs. Maximum Gross Trailer Weight (MGTW)
1,600 lbs. Maximum Vertical Load (MVL)
1. Position the hitch against the frame and align the hitch to
the middle hole of the truck rear frame. The other two holes
should also line up with the vehicle pre-drilled holes/slots.
2. Clamp the hitch onto the frame temporarily.
3. Secure the hitch to the frame with six 9/16-18 bolts (3), six
flat washers (7) and six nuts (4).
4. For some models, if pre-drilled holes not existed, drill
as needed.
5. Torque all bolts to 120 ft-lbs.
8
1
2
3
4
5
6
7

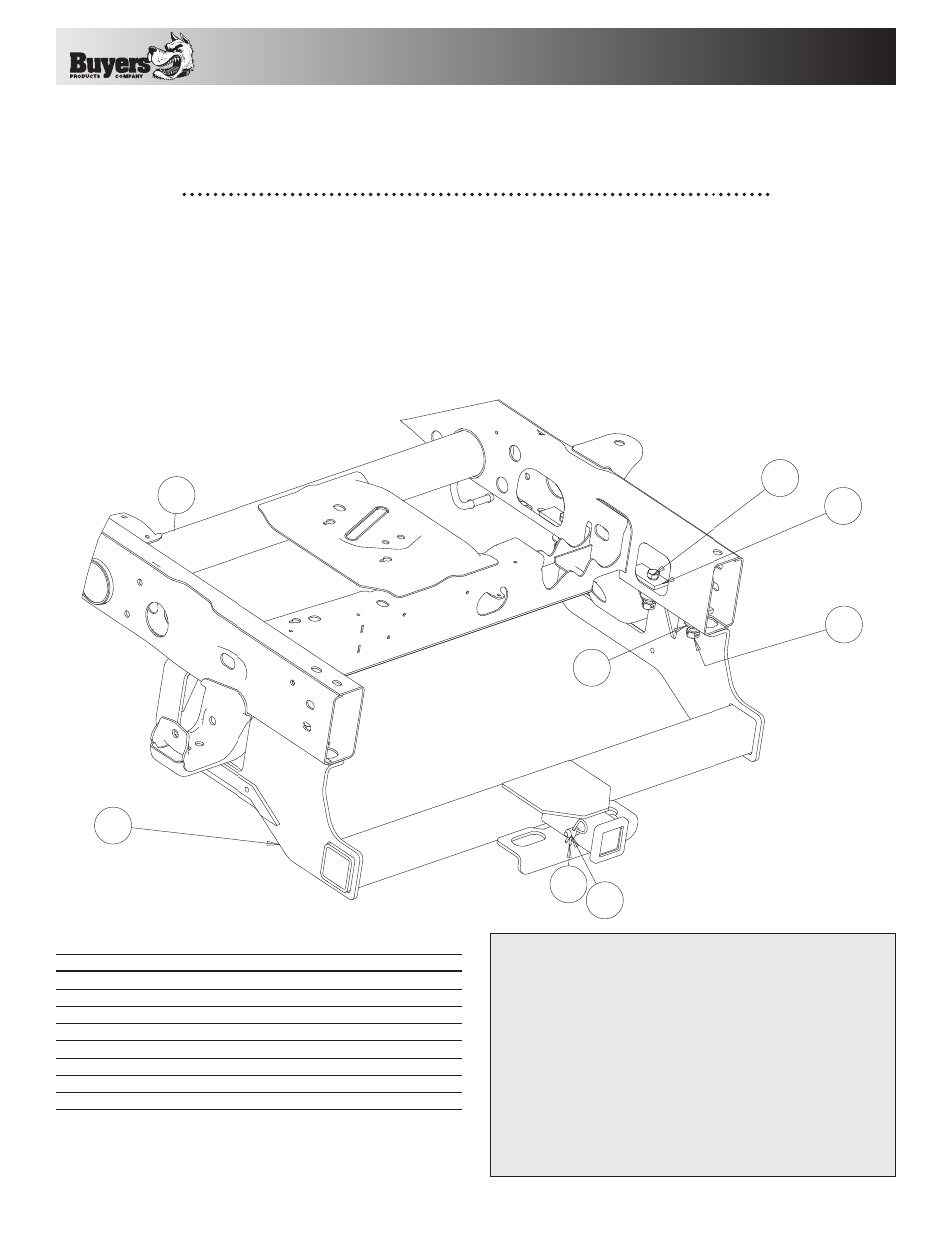

Fig. 1
