IQ-PIP-USP2
Page 43 IQ-PIP-USP2 Reference Manual
IQ-PIP-USP2
Page 42 IQ-PIP-USP2 Reference Manual

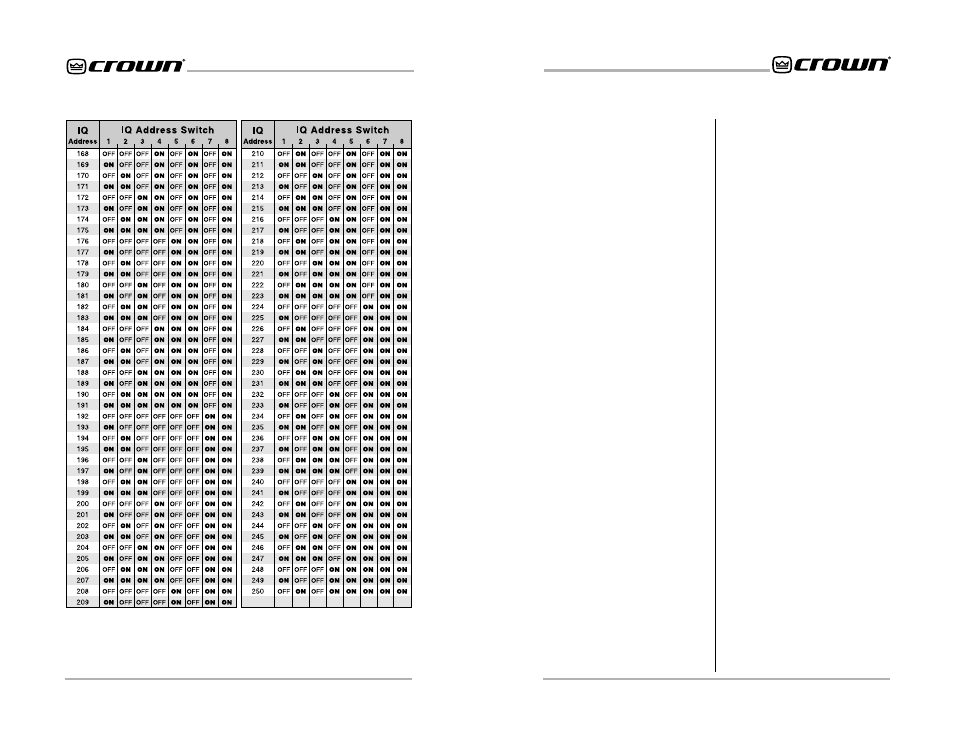

Figure 7.3 IQ Address Switch (S1) Settings from 168 through 250
8 Using the IQ-PIP-USP2
with the IQ-PIP-USP2
Adapter
The IQ-PIP-USP2 Adapter allows
many older Crown PIP-compatible
amplifiers (i.e.,
Macro-Tech ® 00
Series, Com-Tech ® 00 Series, and
Studio Reference Series amplifiers)
to access the power and versatility
of the Crown IQ-PIP-USP2 module.
The IQ-PIP-USP2 Adapter can be
installed into the following Crown
amplifier models:
CT-200*, CT-400*, CT-800*,
CT-1600*
MA-600, MA-1200, MA-2400
MA-3600VZ, MA-5000VZ**
MA-24x6, MA-36x12
Macro Reference*
Studio Reference I
Studio Reference II
*Important: Some of the first gen-
eration Com-Tech Series and Macro-
Reference amplifiers have soldered
16-pin ribbon and 5-pin signal cable
connections, rather than the modu-
lar type described in Section 3.3. If
you find that your original Com-Tech
Series or Macro-Reference ampli-
fier has the soldered type cable con-
nections, contact the Crown Techni-
cal Support Group for installation
instructions.
**Important: Some newer Macro-
Tech MA-5000VZ amplifiers are al-
ready PIP2-compatible and can ac-
cept the IQ-PIP-USP2 directly. Older
MA-5000VZ amplifiers are not PIP2-
compatible. Those amplifiers have
soldered 16-pin ribbon and 5-pin sig-
nal connections, rather than the
modular type described in Section
3.3. If you find that your MA-5000VZ
amplifier has the soldered type cable
connections, contact the Crown
Technical Support Group for instal-
lation instructions.
Important: The IQ-PIP-USP2
Adapter is designed for use with the
IQ-PIP-USP2 module ONLY, and will
NOT work with the IQ-PIP-USP2/
CN or any other PIP module.
Important: The IQ-PIP-USP2
Adapter requires IQ for Windows,
version 5.02 or newer. Older ver-
sions of the software will not recog-
nize the adapter and allow commu-
nication with the IQ-PIP-USP2 mod-
ule.
Please note the following differ-
ences when using the IQ-PIP-
USP2 with the IQ-PIP-USP2
Adapter:
Different Identification within IQ
for Windows
• IQ for Windows software recog-
nizes and identifies the IQ-PIP-USP2
Adapter itself, rather than the
IQ-PIP-USP2 module (see Figure
9.1).
• The serial number is fixed to
"AFTERMKT."
• The Date Code is fixed to the date
of the IQ-PIP-USP2 Adapter manu-
facture.
(See other differences on the next
three pages)
