dbx DriveRack 220i - Manual (Page 56)

52
220i
DriveRack ® User Manual

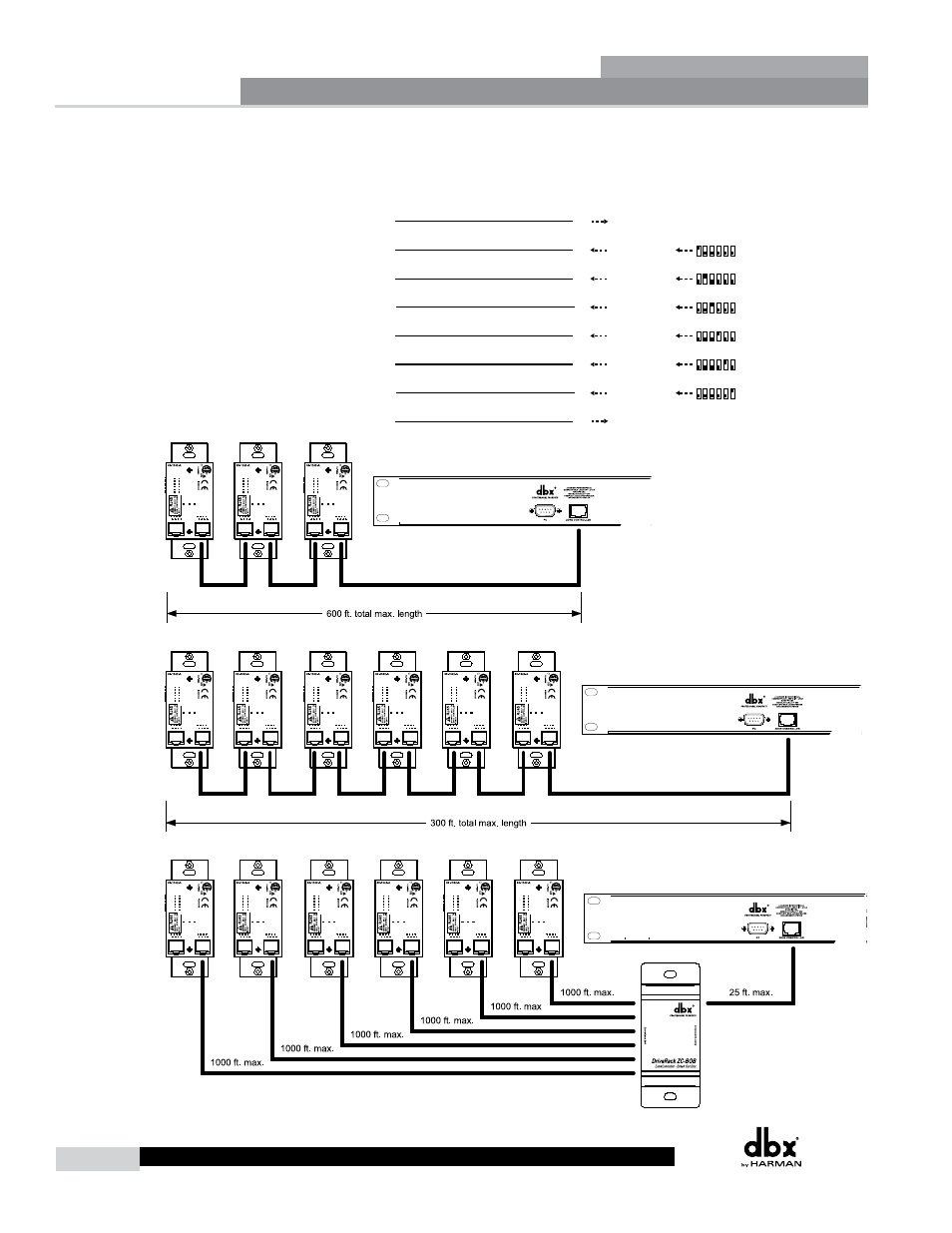

Zone Controller Cable Specifications:
Cat 5 Cable / 4-Twisted Pairs of 24 AWG Wire / 568B Standard
RJ-45
(8-Position)
RJ-45
(8-Position)
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
8 8
Brown
Ground
1 1
White / Orange
Voltage Reference
2 2
Orange
Controller 1
3 3
White / Green
Controller 2
4 4
Blue
Controller 3
5 5
White / Blue
Controller 4
6 6
Green
Controller 5
7 7
White / Brown
Controller 6
Diagram A
Diagram B
Diagram C
Appendix
