This Application guide section is provided to offer suggested installation applications of the DriveRack ®
units that will allow you to optimize peak performance of the units. Note that the four included
applications represent the extensive flexibility of the DriveRack
® units. These applications can be used
verbatim, or as sample reference guide templates for designing countless audio applications.

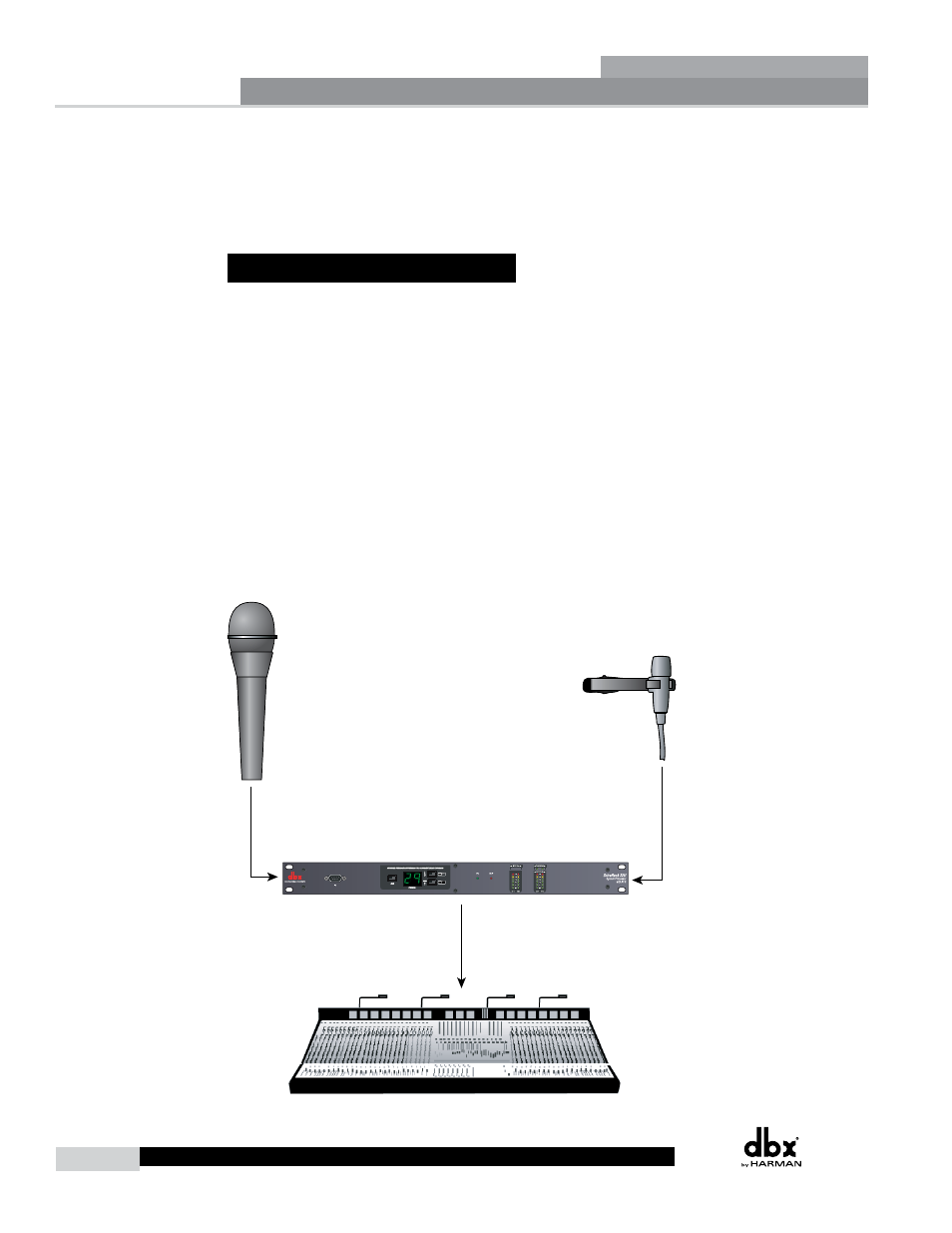

5.1 - Mic Processing/Mixing
Hardware
1. Connect the outputs of the microphones to the inputs of the DriveRack.
2. Connect the outputs of the DriveRack to the mixer.
3. Making sure that all outputs are muted, apply power to the mixer and amplifiers.
4. Make connections between the Zone Controllers and the 220i if applicable.
Software
1. Select Program 3 - Mic Mix as a template.
2. Load the program by from the front panel or from the DriveWare GUI.
3. Adjust the individual parameters for the system by selecting the Processing Module from the
GUI interface.
4. Using the Utility Menu, select the ID for the Zone Controller if applicable.
Provides:
Mic Pre
EQ
Feedback Suppression
Mixing
Hignpass Filtering
Compression
Gating
